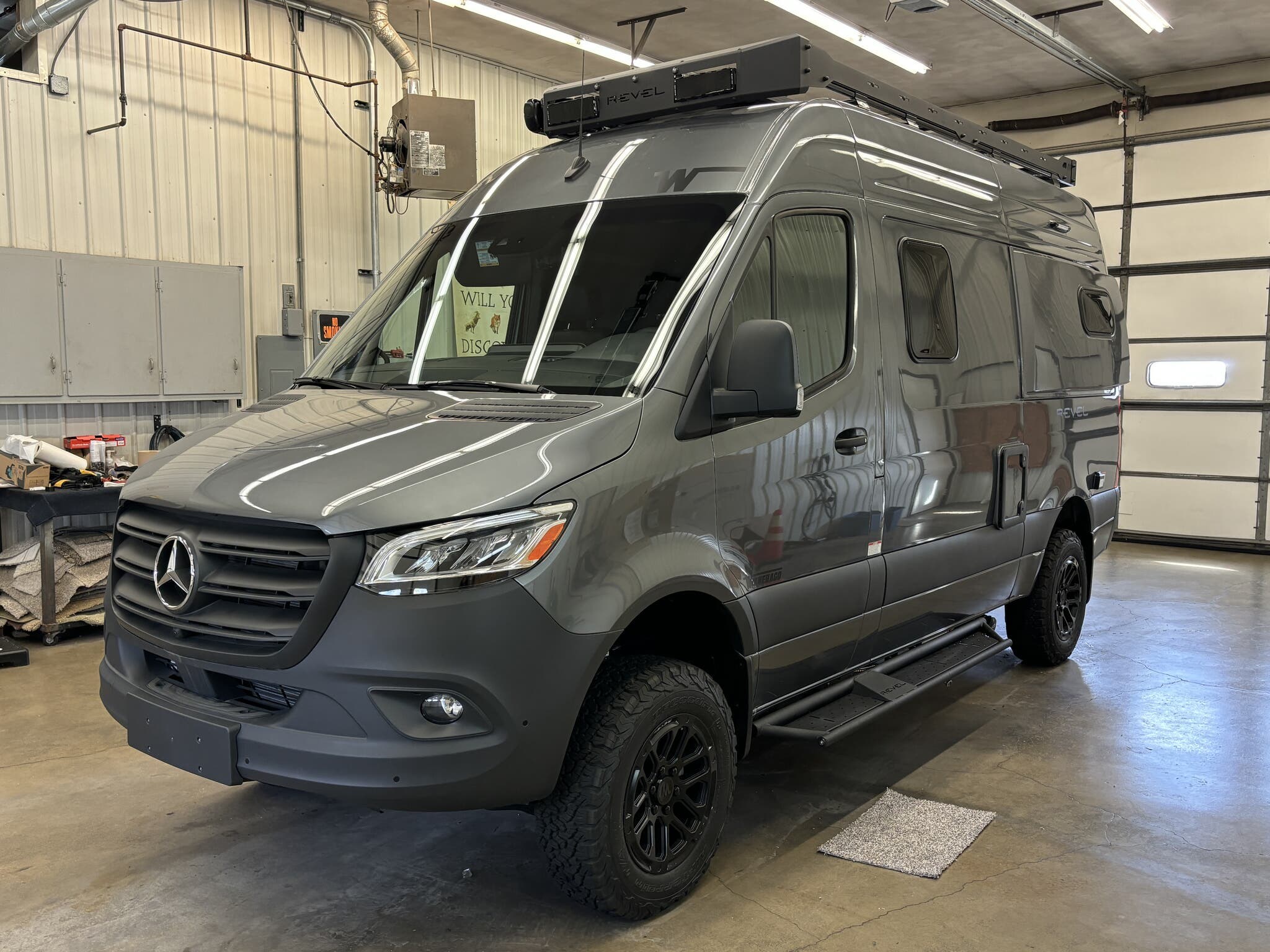

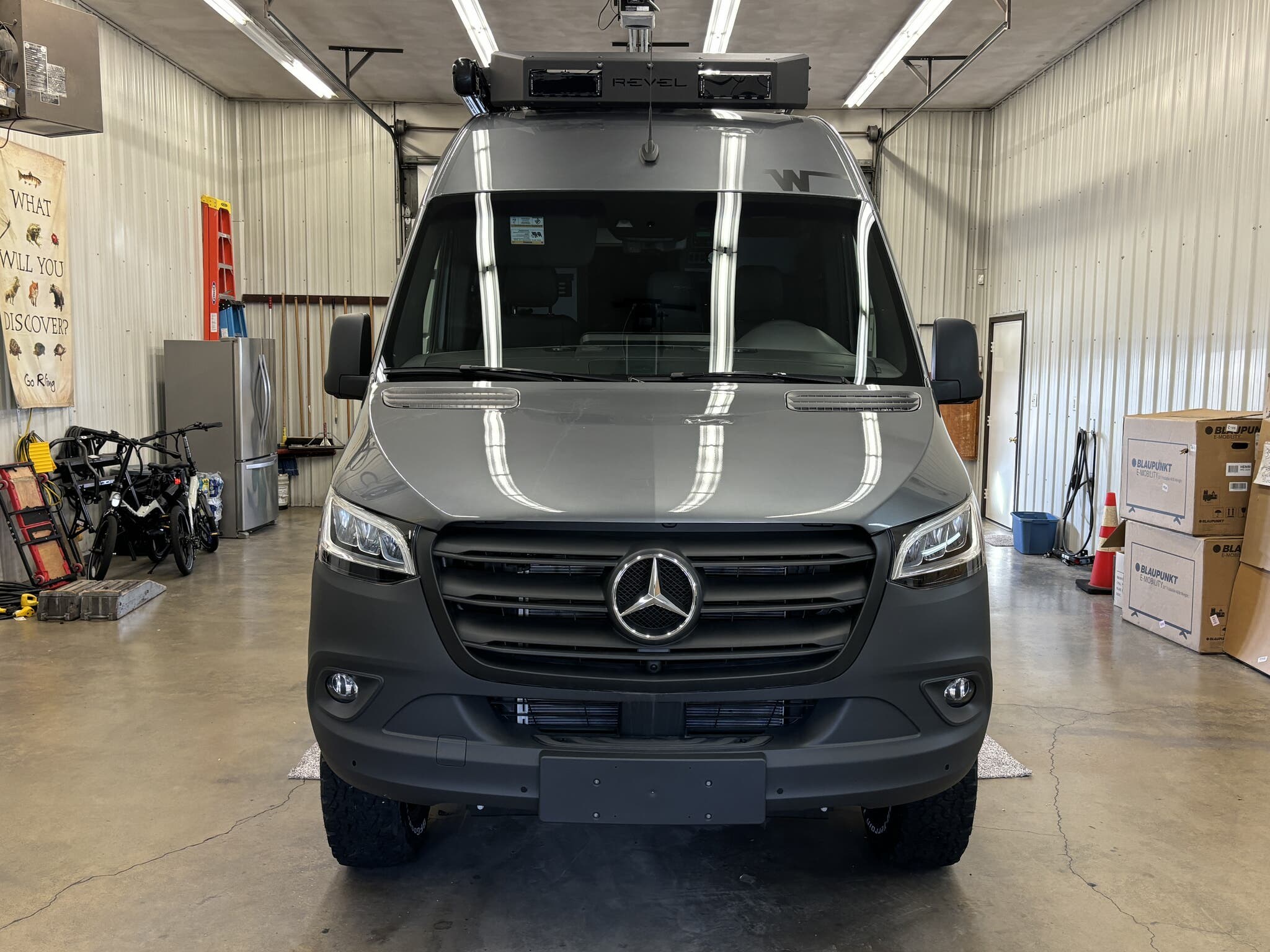

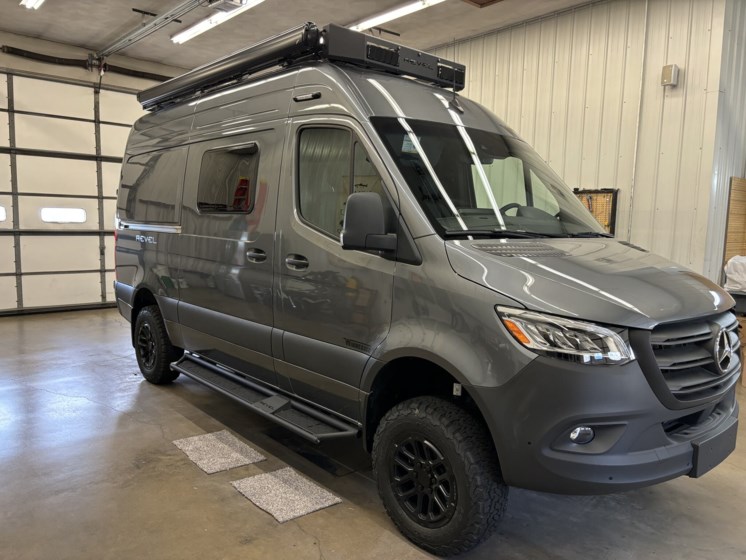

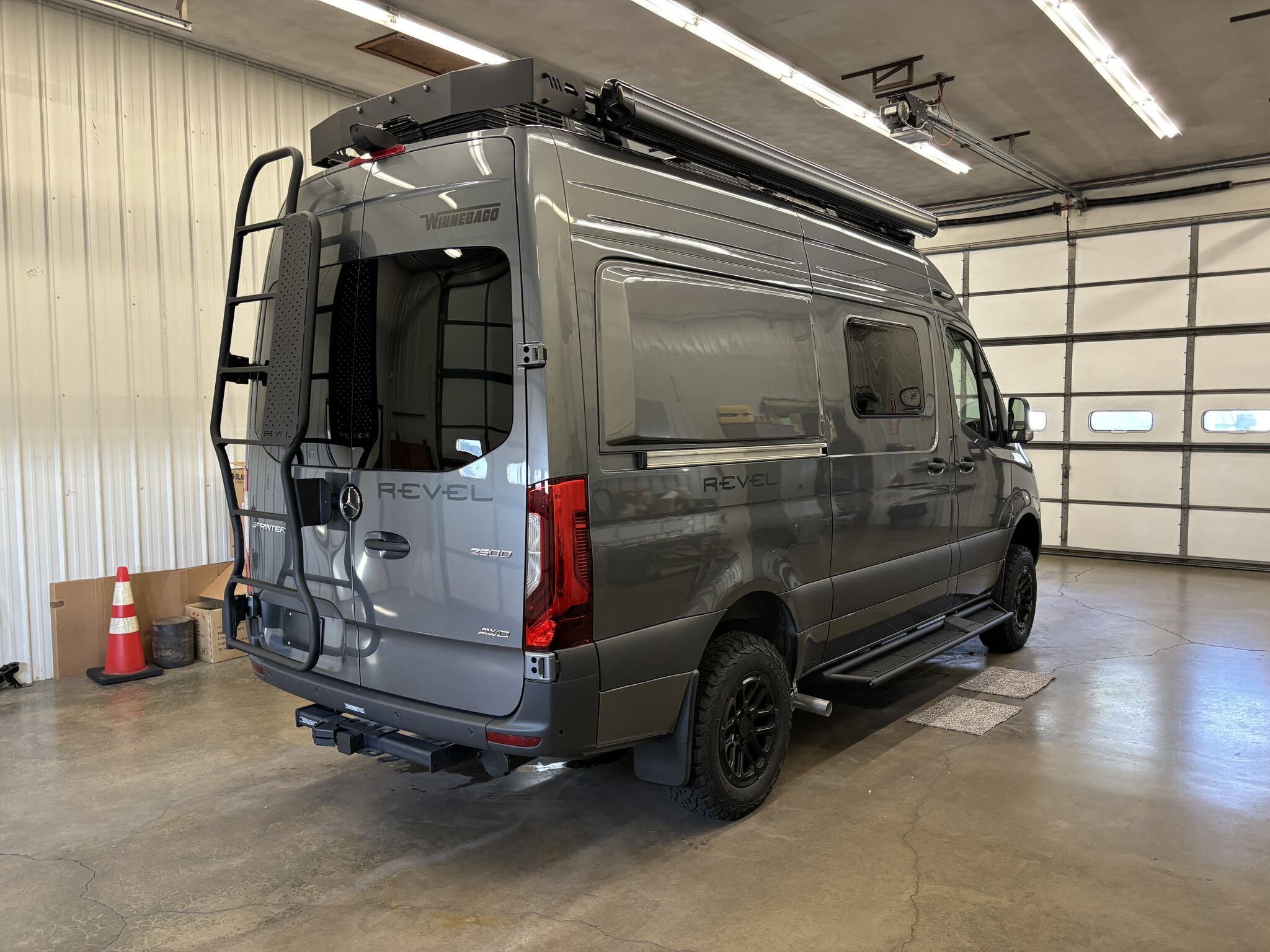

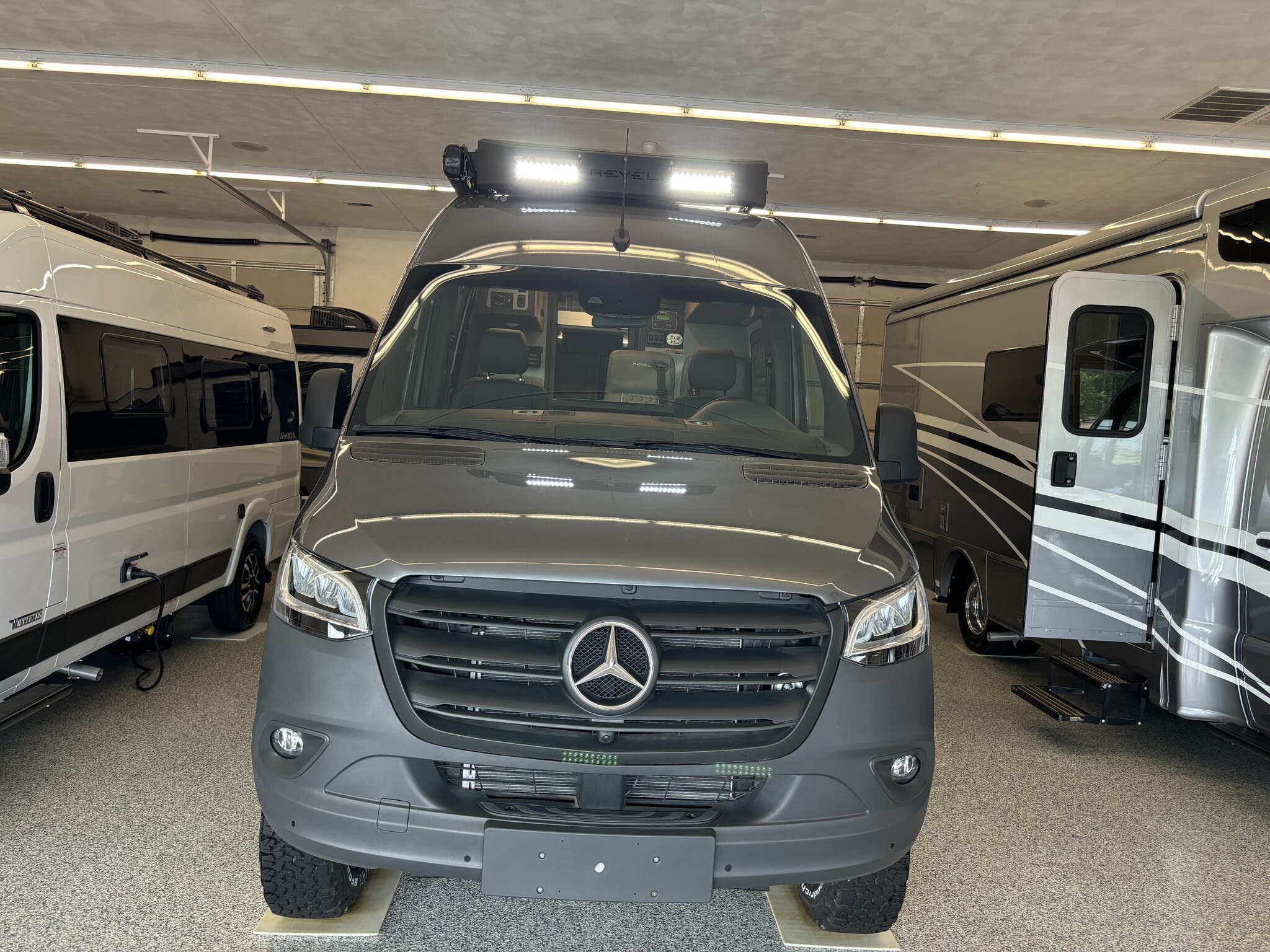

2025 Winnebago Revel 44E

This unit is equipped with Overlander interior up grade pkg , Roof A/C , Power awning , Selenite Gray , Cab seat bed , and Performance stylized wheels.

 ,REVEL Specifications
Optional Package Upgrade
Interior Package Upgrade includes Overlander
interior decor, removable Chilewich® floor mats (cab
and coach) and insulated window coverings
Chassis

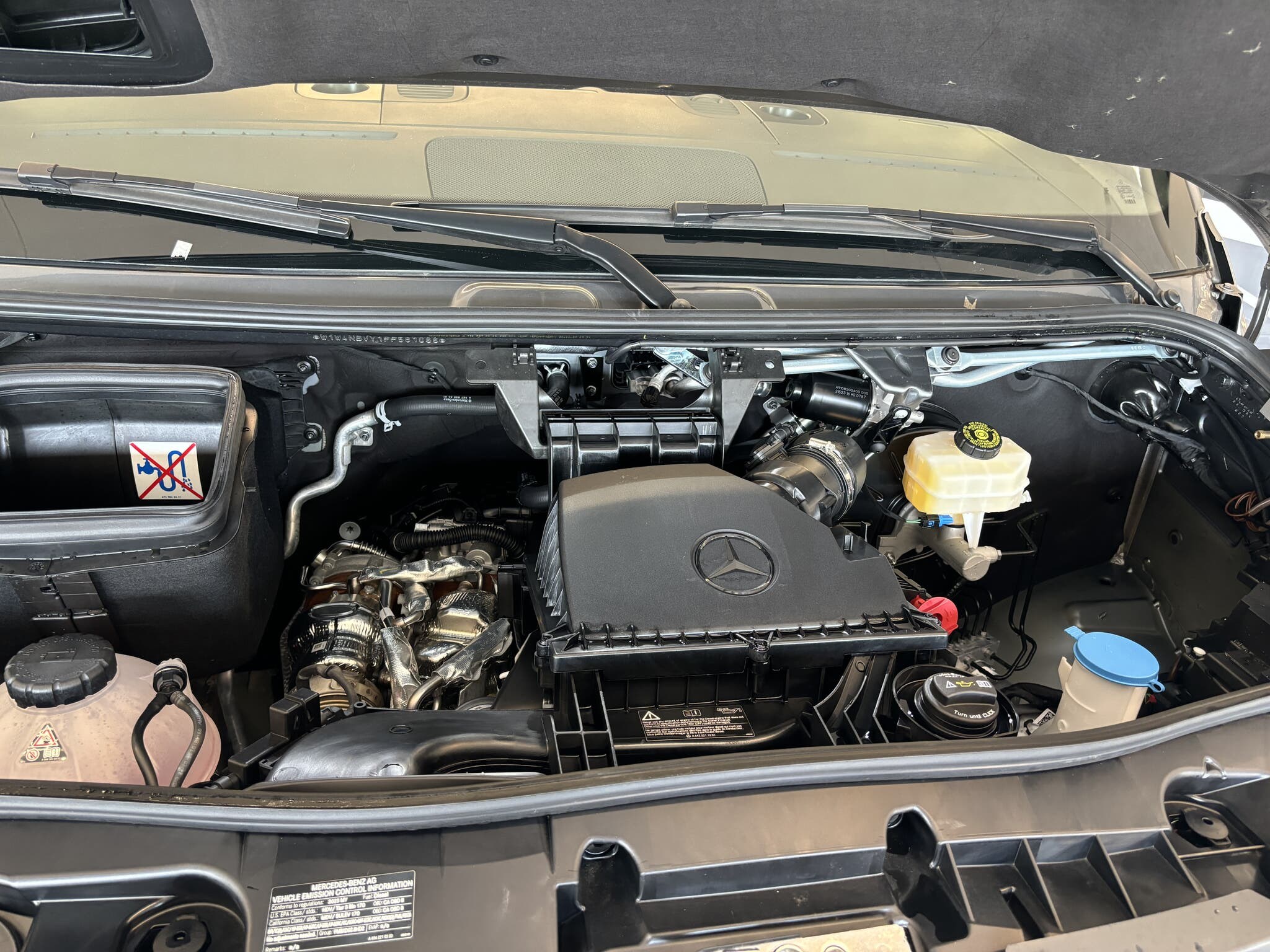

Mercedes-Benz® AWD Sprinter Chassis 2.0L
high-output, turbo-diesel 4-cylinder, 9-speed
automatic transmission with overdrive
4-wheel ABS brakes
LED high performance headlamps

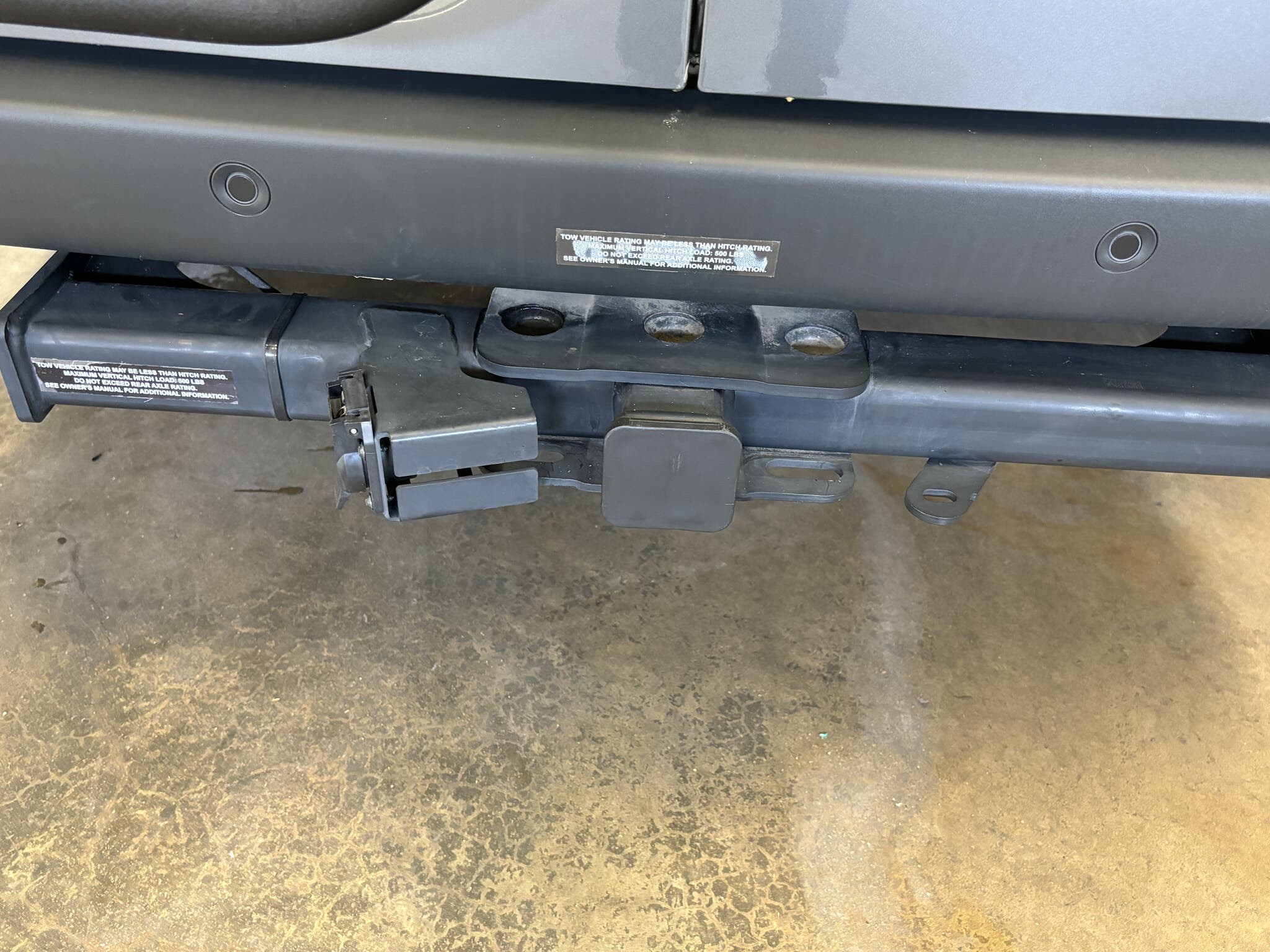

Trailer hitch 5,000-lb. drawbar/500-lb. maximum
vertical tongue weight
7-pin trailer wiring harness connector
Spare tire
O P T I O N A L E Q U I P M E N T

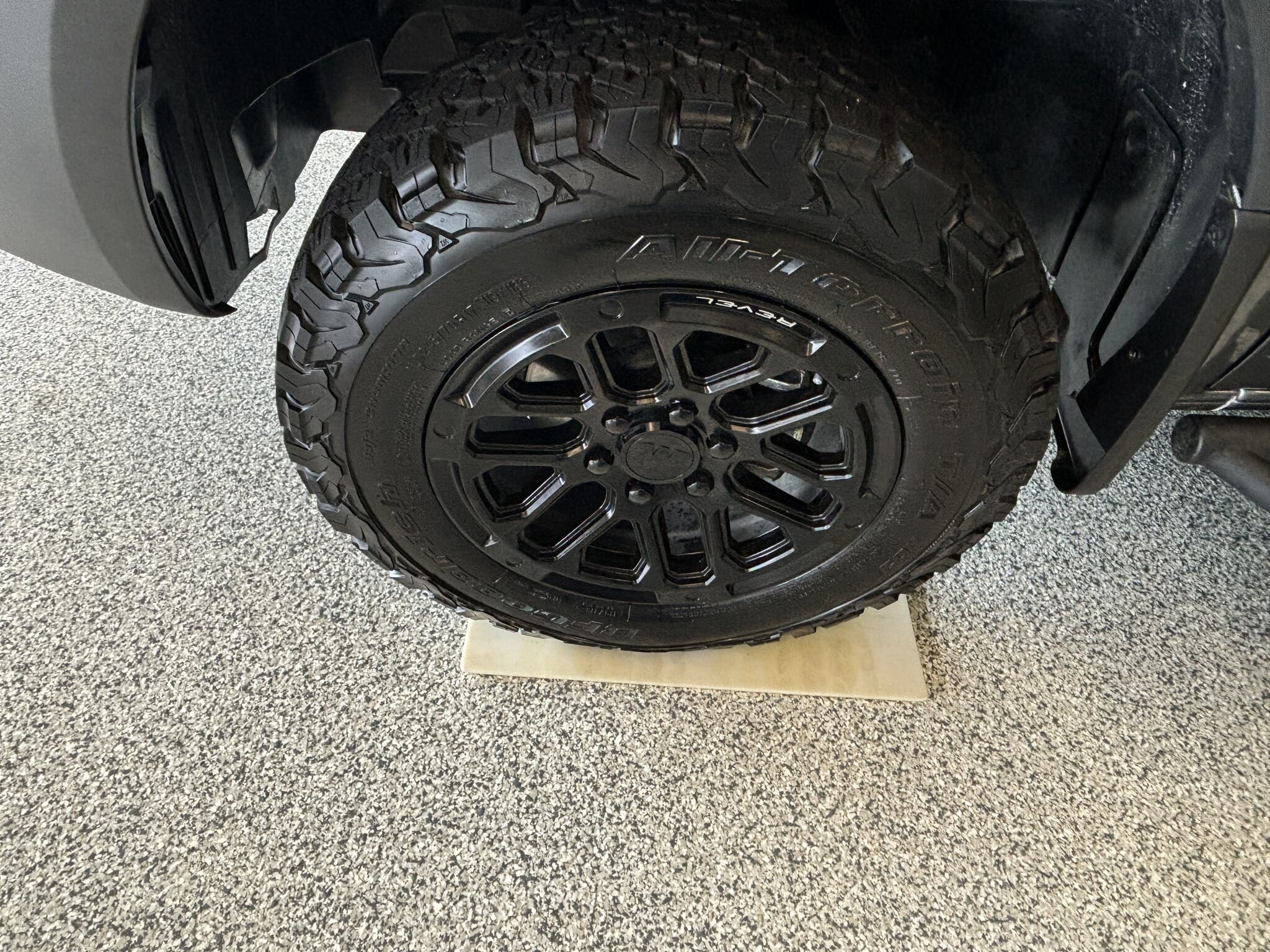

Customized performance wheels and BF
Goodrich® T/A® KO2 all-terrain tires
Entry door assist handle w/Ram® Tough-Track™
mount
120V, 12V, USB-A and USB-C charging ports
Roof wiring access port
Heavy duty vinyl flooring throughout
Below floor storage (lounge)
O P T I O N A L E Q U I P M E N T
Front cab air mattress 30" x 65" w/support base,
cordless pump, repair kit and storage bag

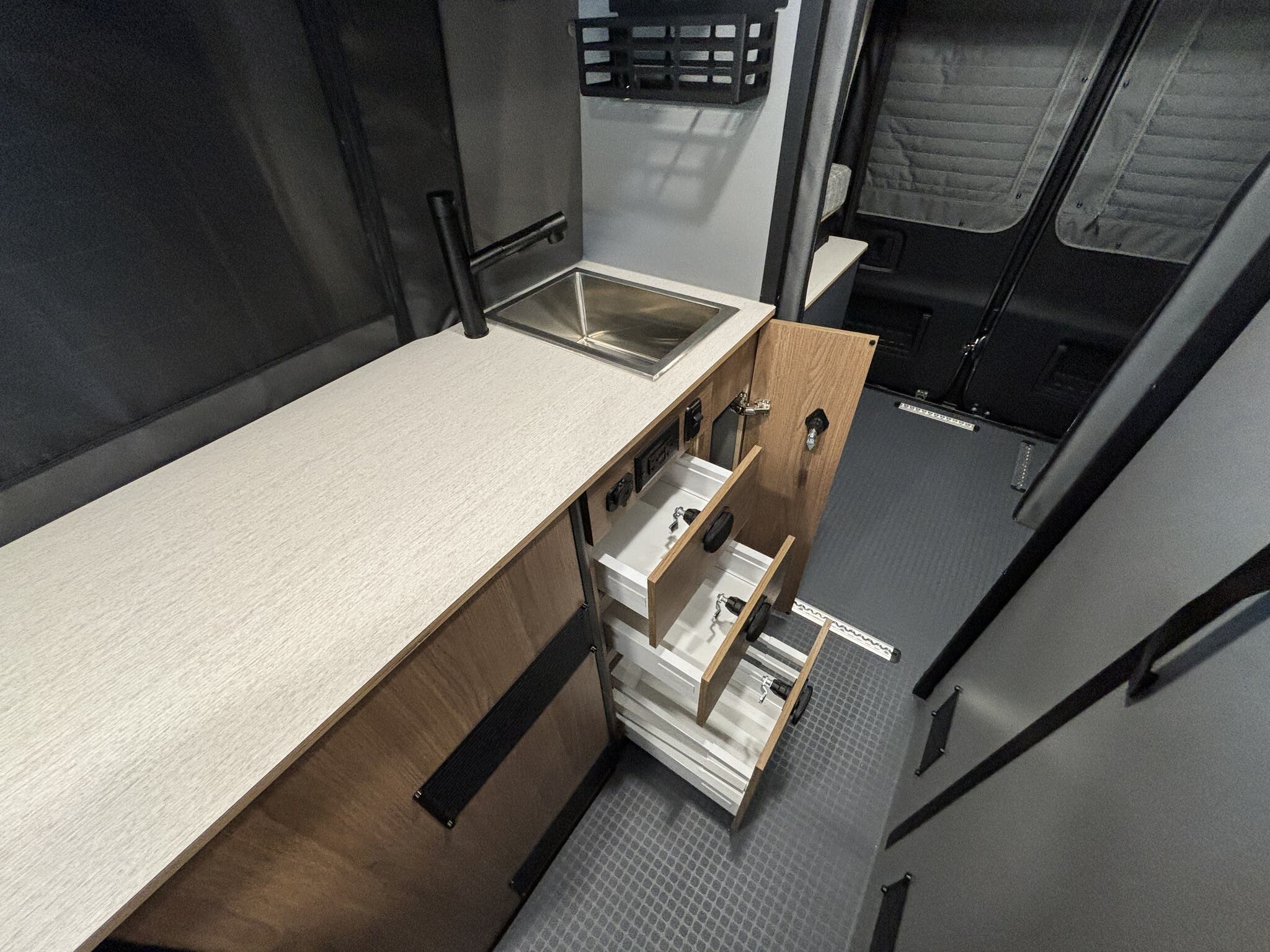

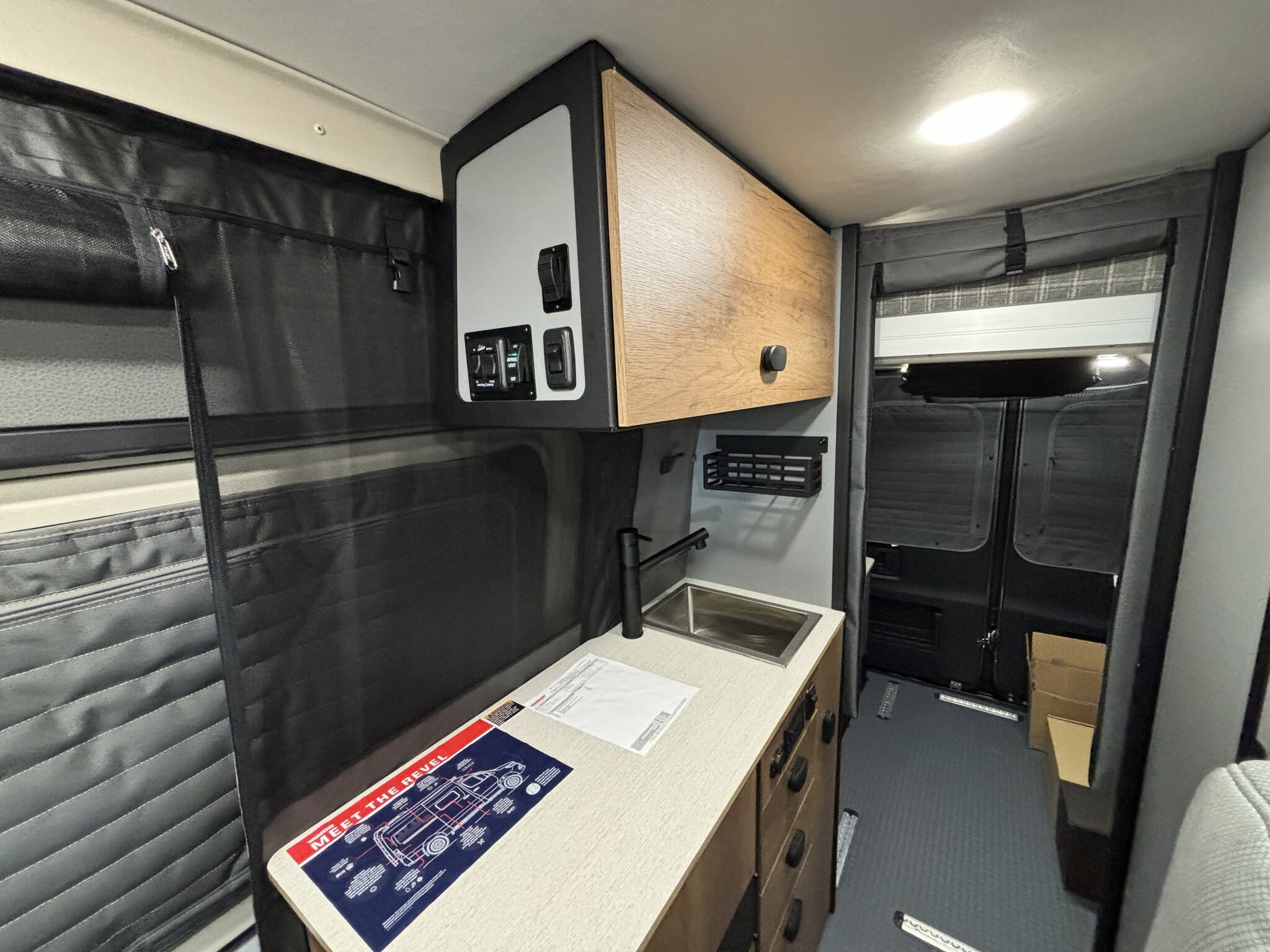

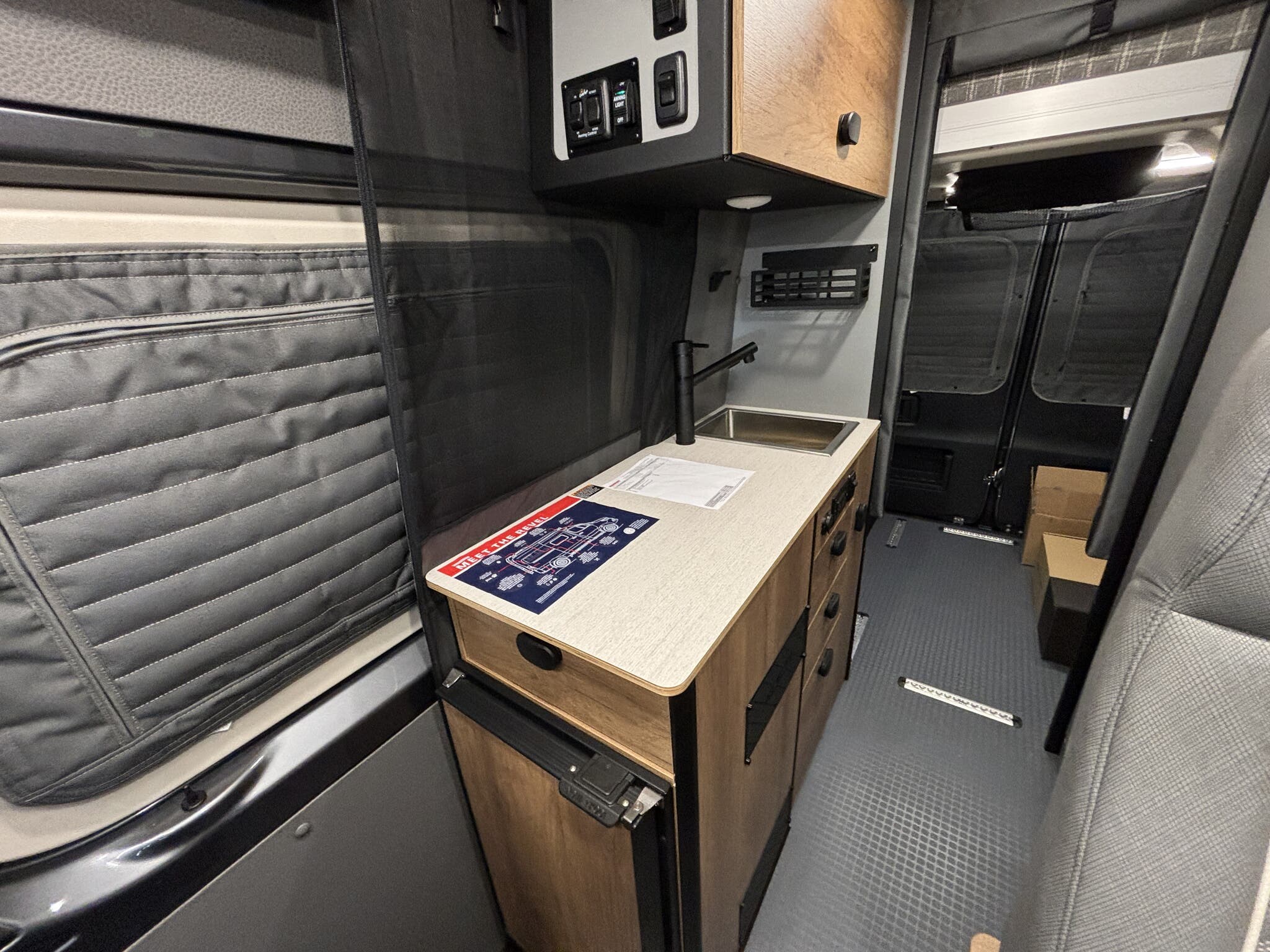

Galley
Laminate countertop
Portable single burner induction cooktop
Galley drawer w/counter extension base (induction
cooktop storage)

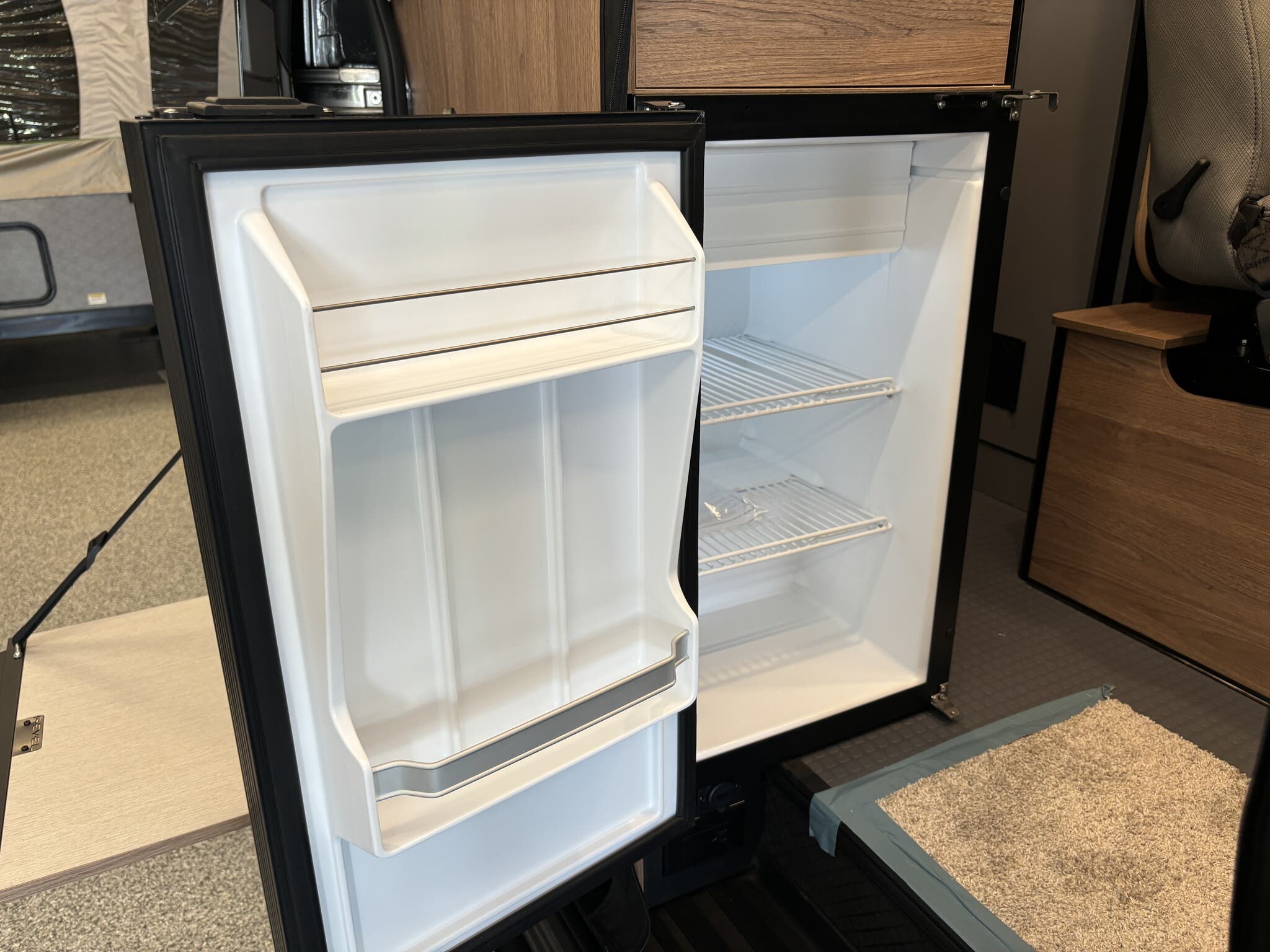

3.0 cu. ft. (12V) single door compressor-driven
refrigerator/freezer

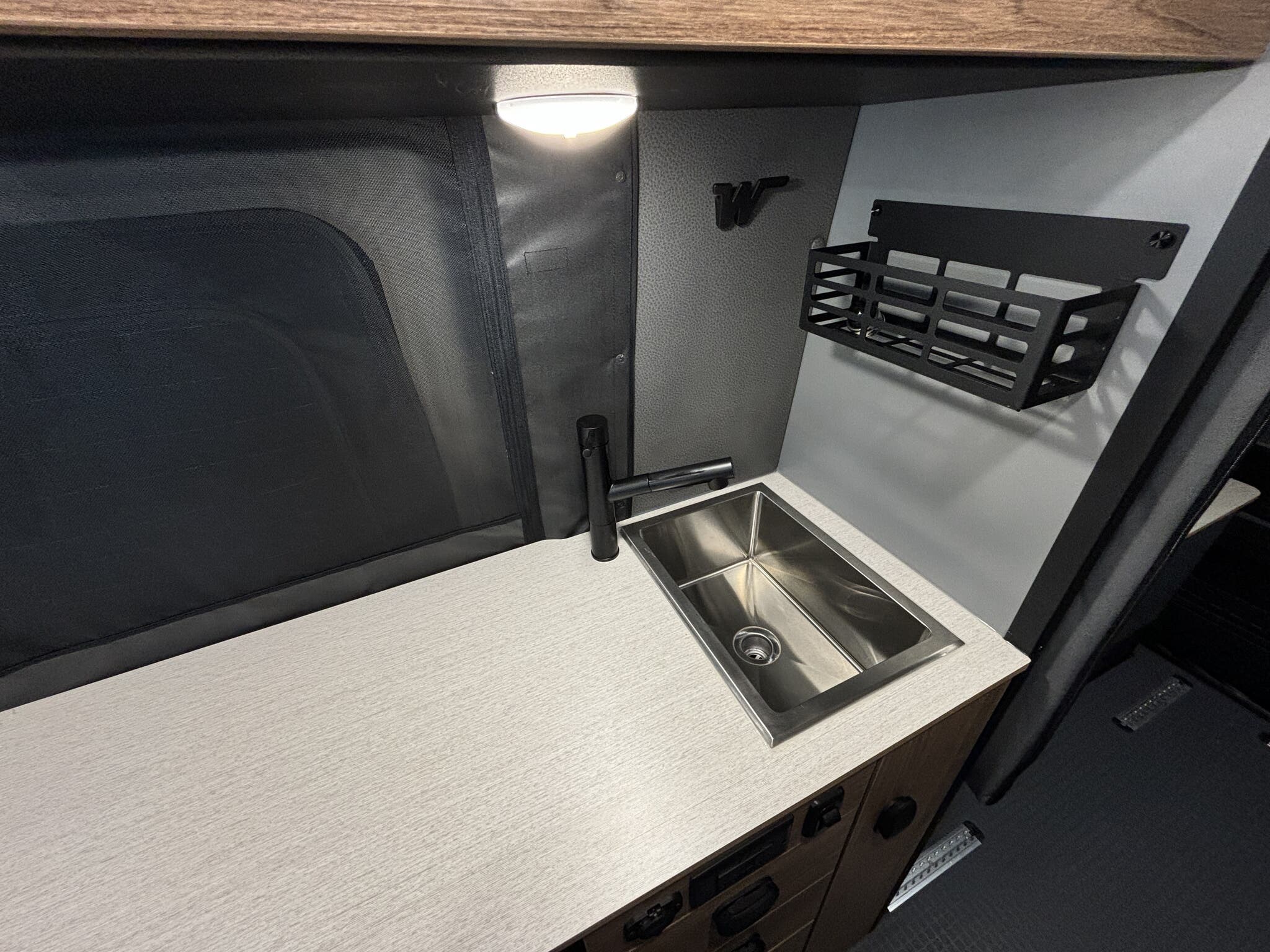

Stainless steel sink w/single control faucet and
pull-out sprayer
Spice rack

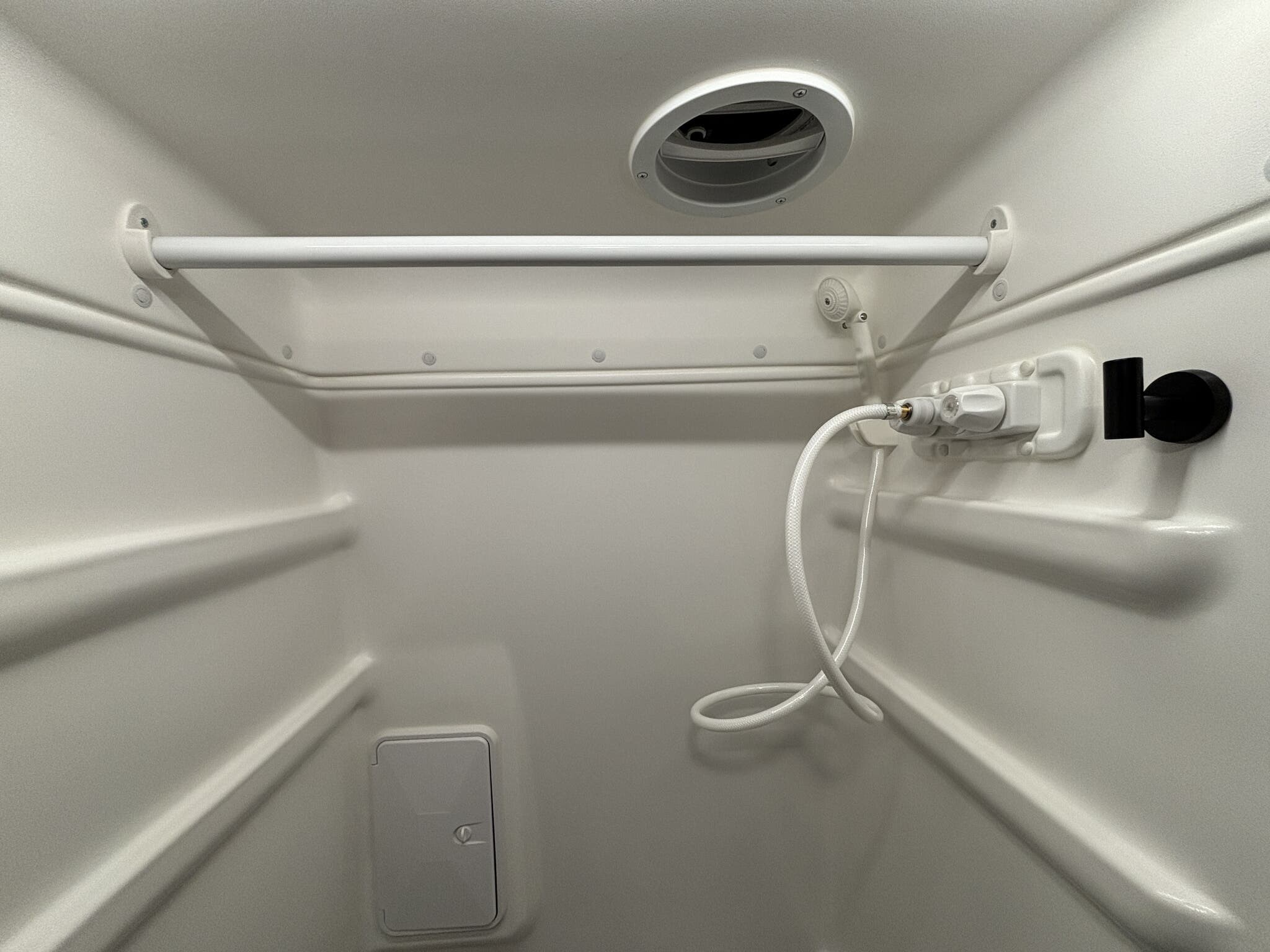

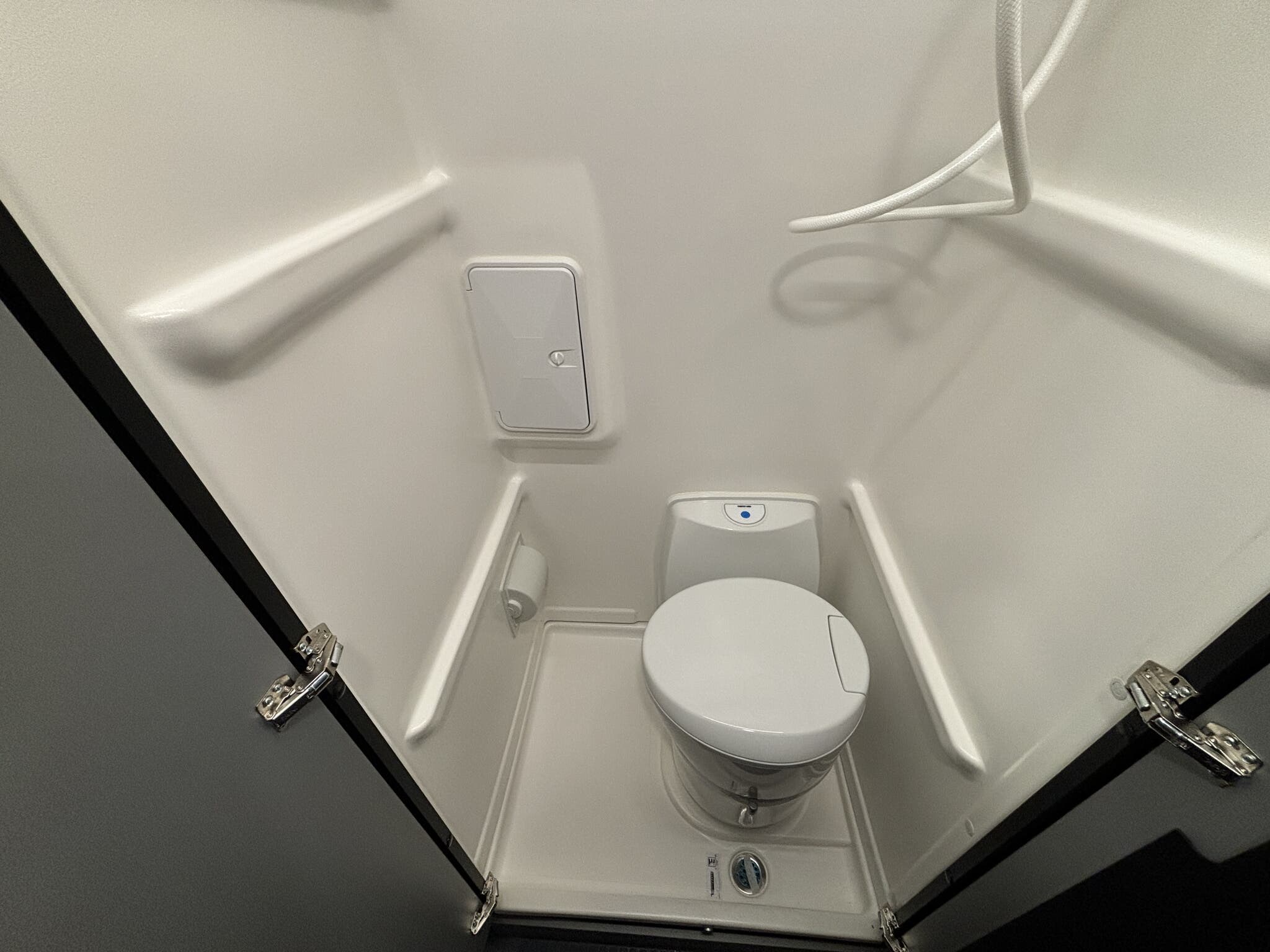

Bath
Wet bath 31" x 26"
Shower w/wall surround
Bi-fold bath door w/privacy panel extension
(1) removable shelf
(2) collapsible storage containers
Dual control faucet w/flexible shower head
Removable clothes rod
Mirror
Powered roof vent
Robe hooks
Shower curtain
Tissue holder
Swiveling cassette toilet

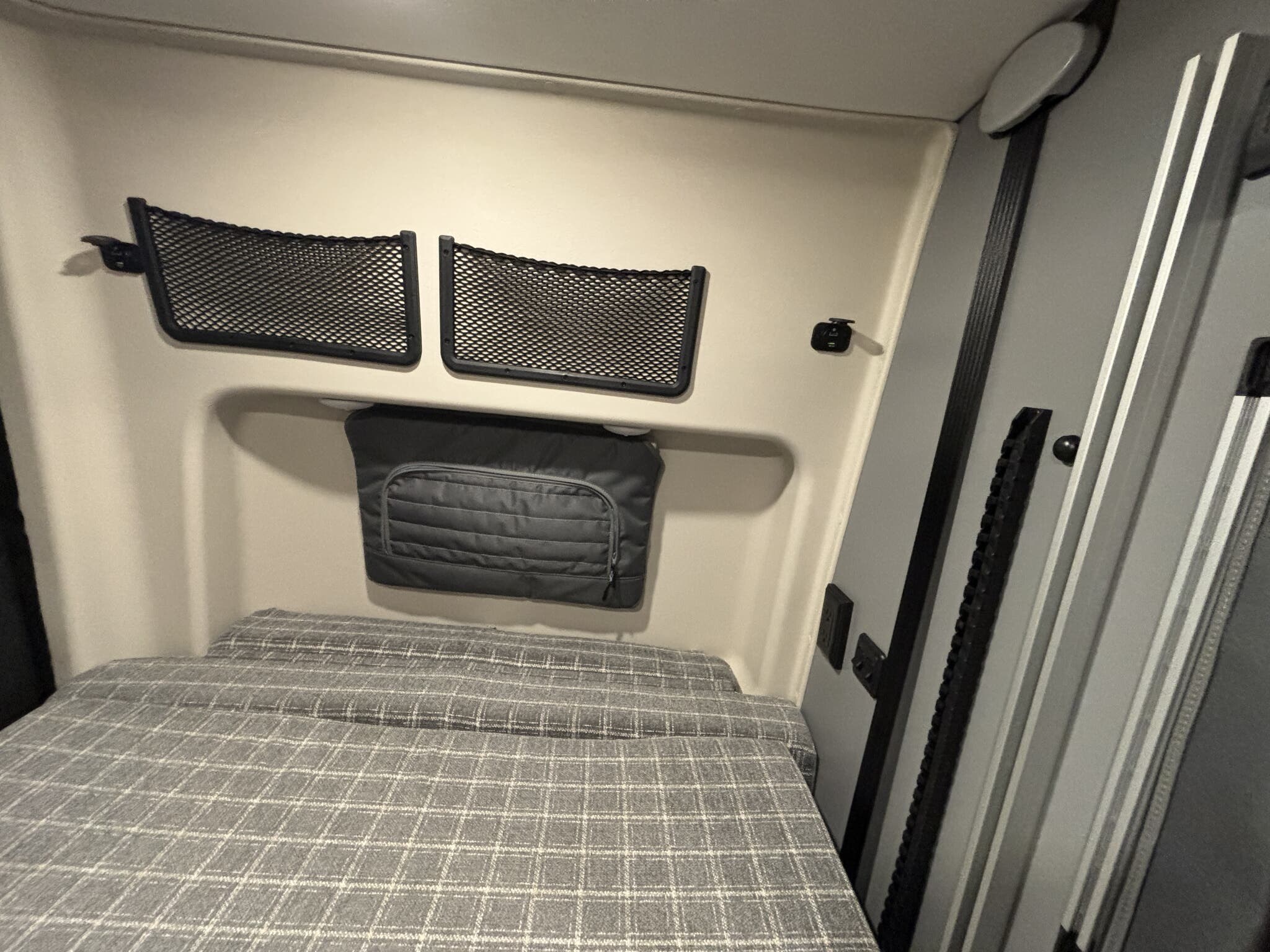

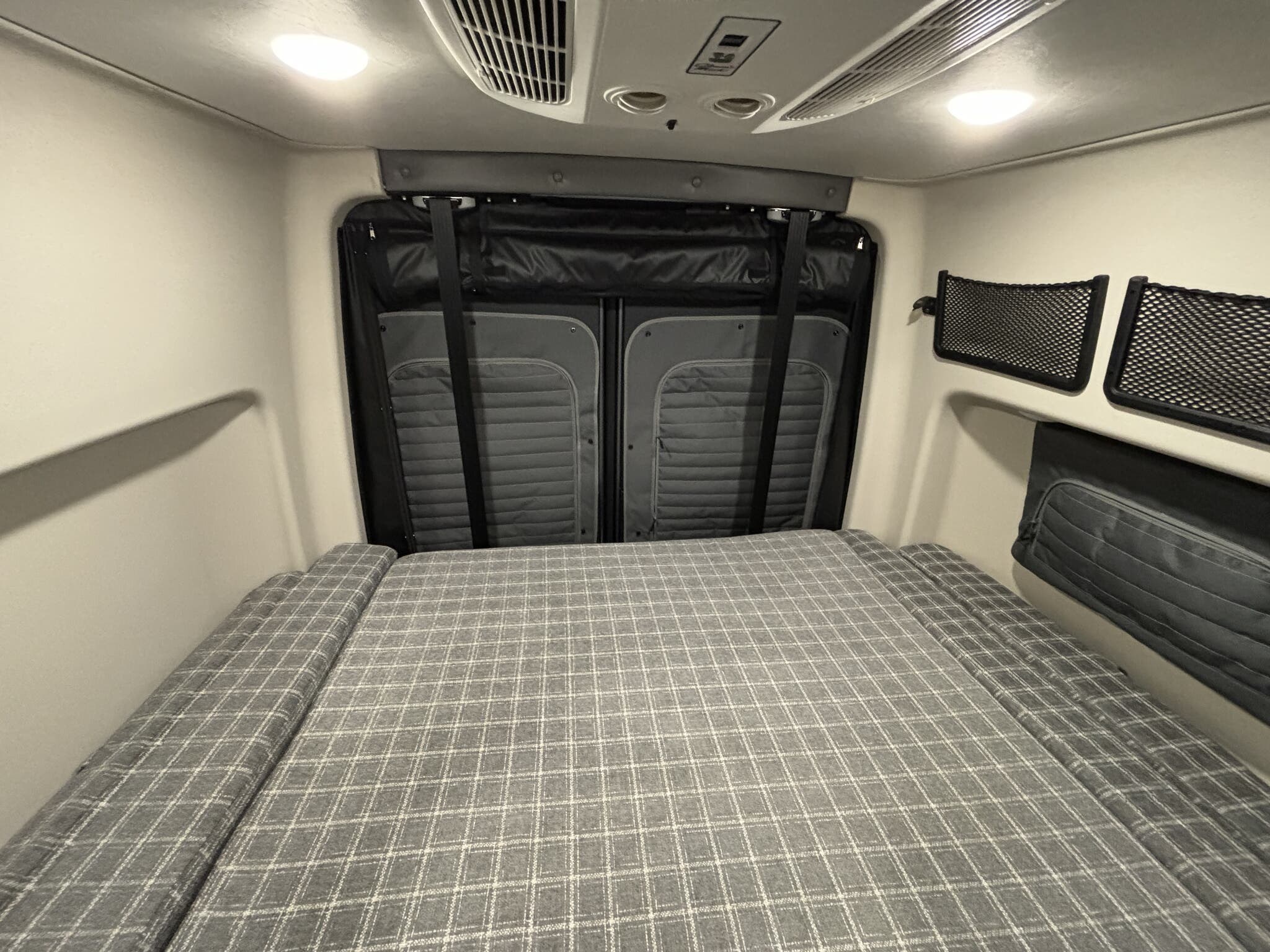

Bedroom
Power lift bed w/WinnSleep® technology and molded
pockets w/zip storage below

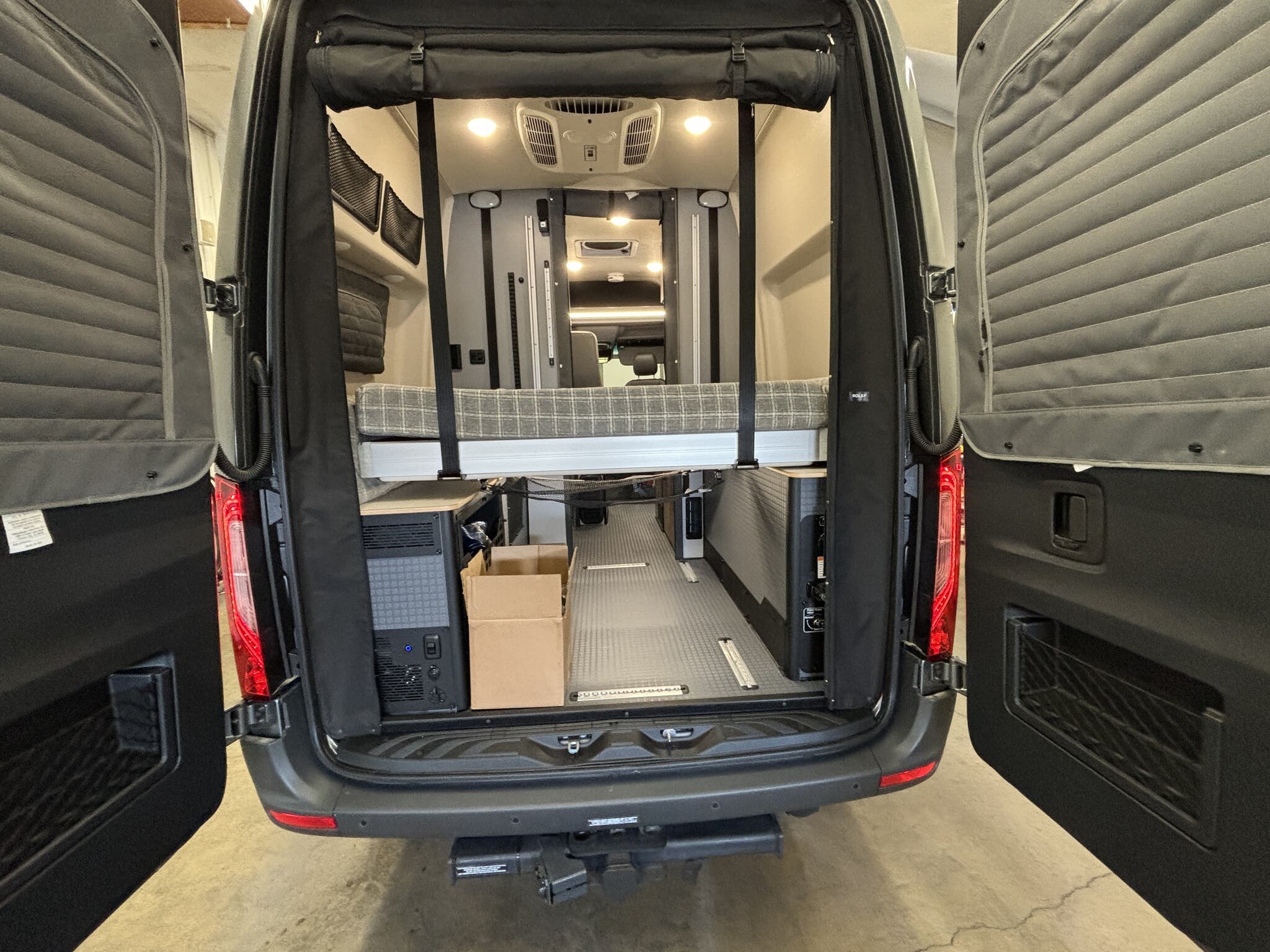

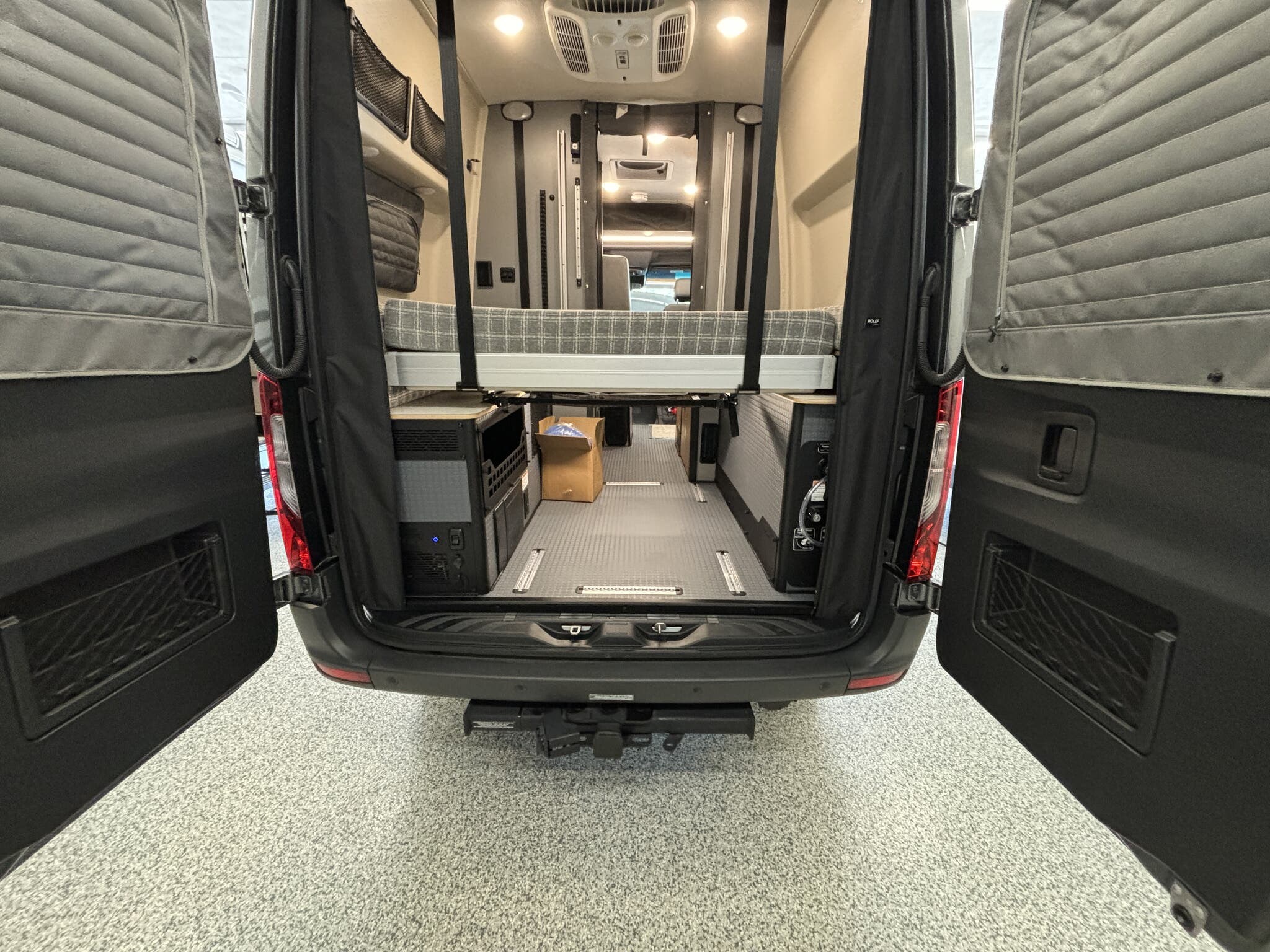

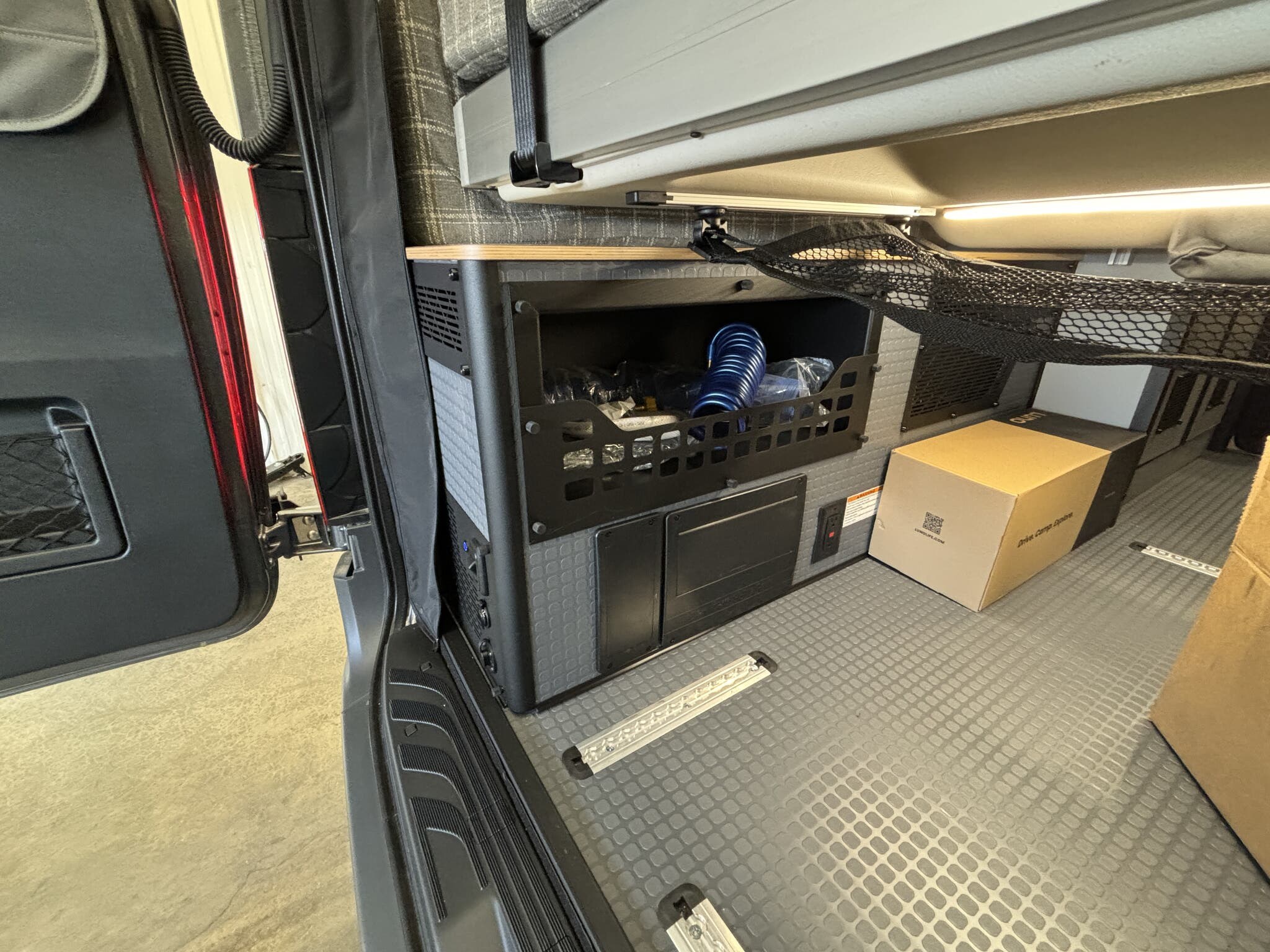

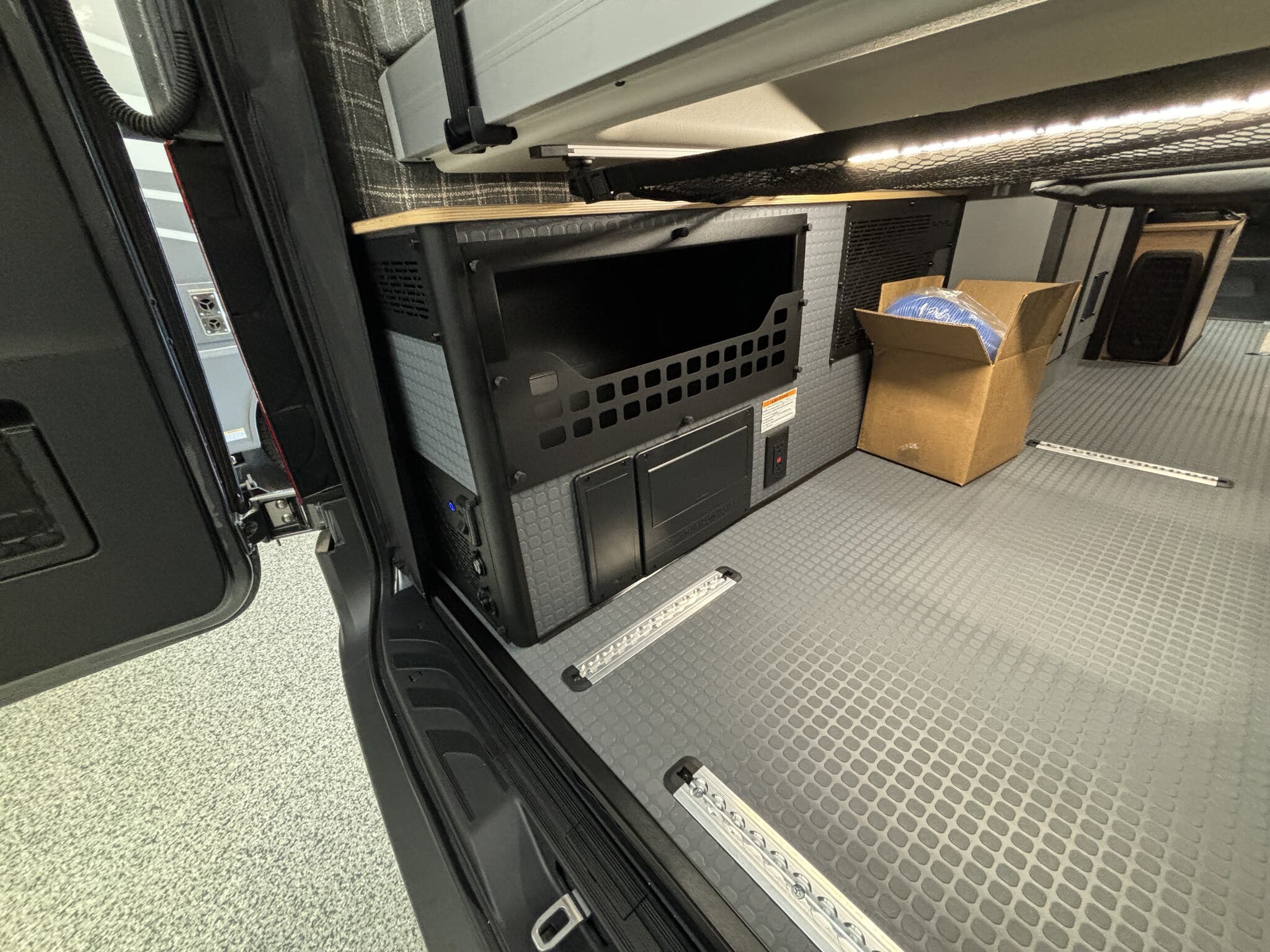

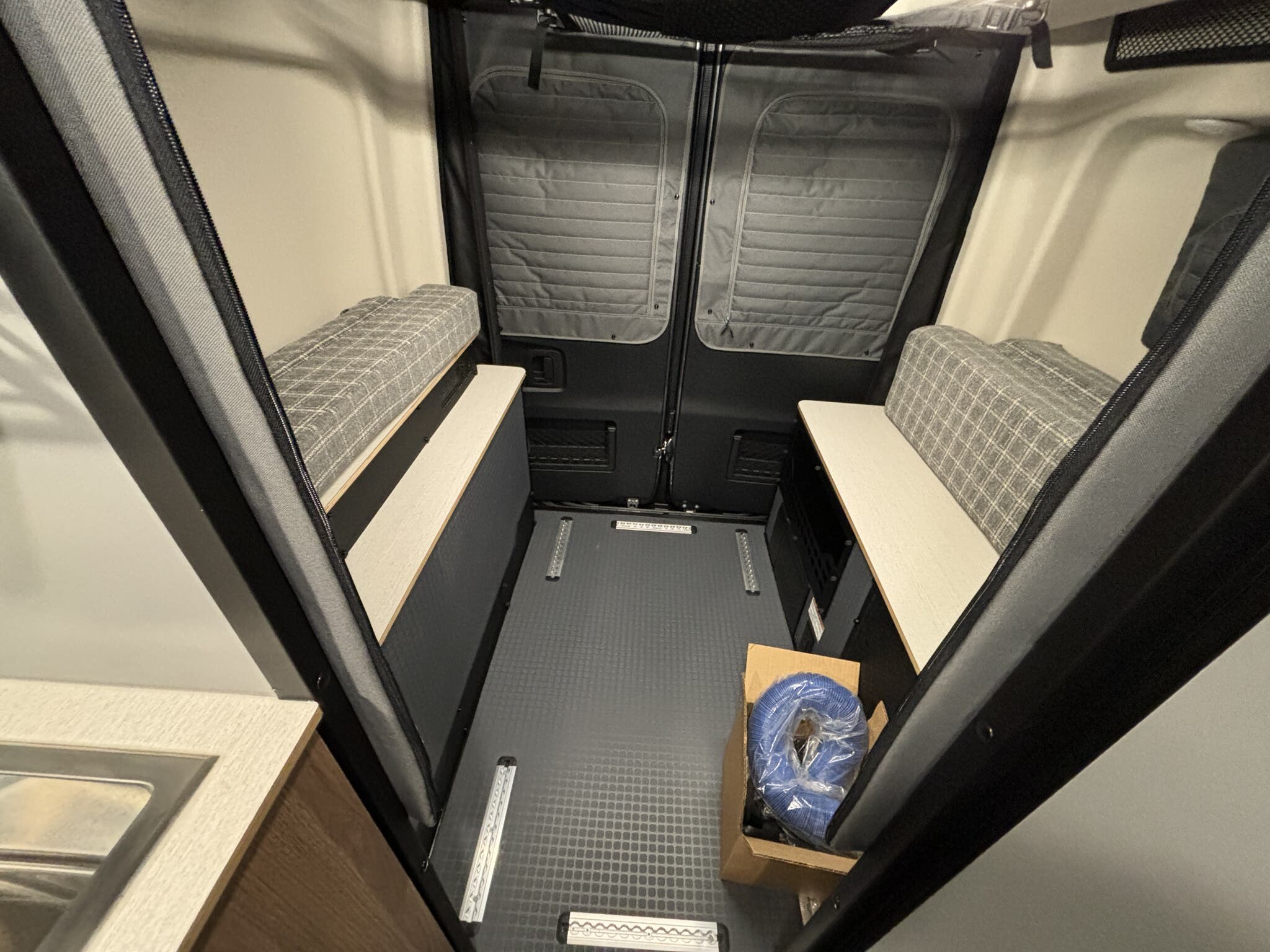

Under-bed gear garage storage w/strategically
placed L-track tie downs
Powered roof vent w/rain cover (n/a w/air
conditioner)
(2) pocket storage nets
Reading lights

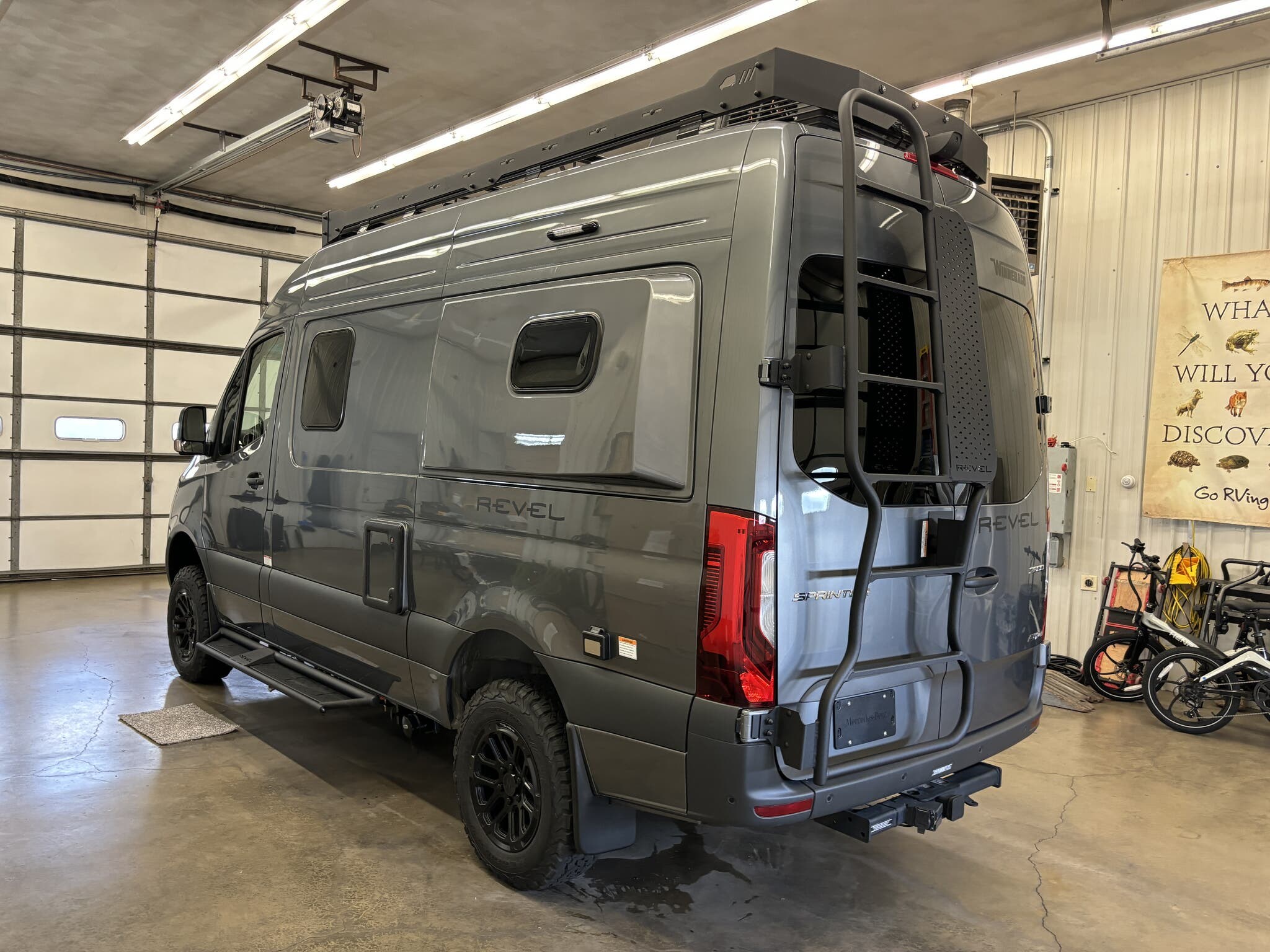

Exterior
Side screen door w/magnetic closure
Rear screen door w/blackout panel

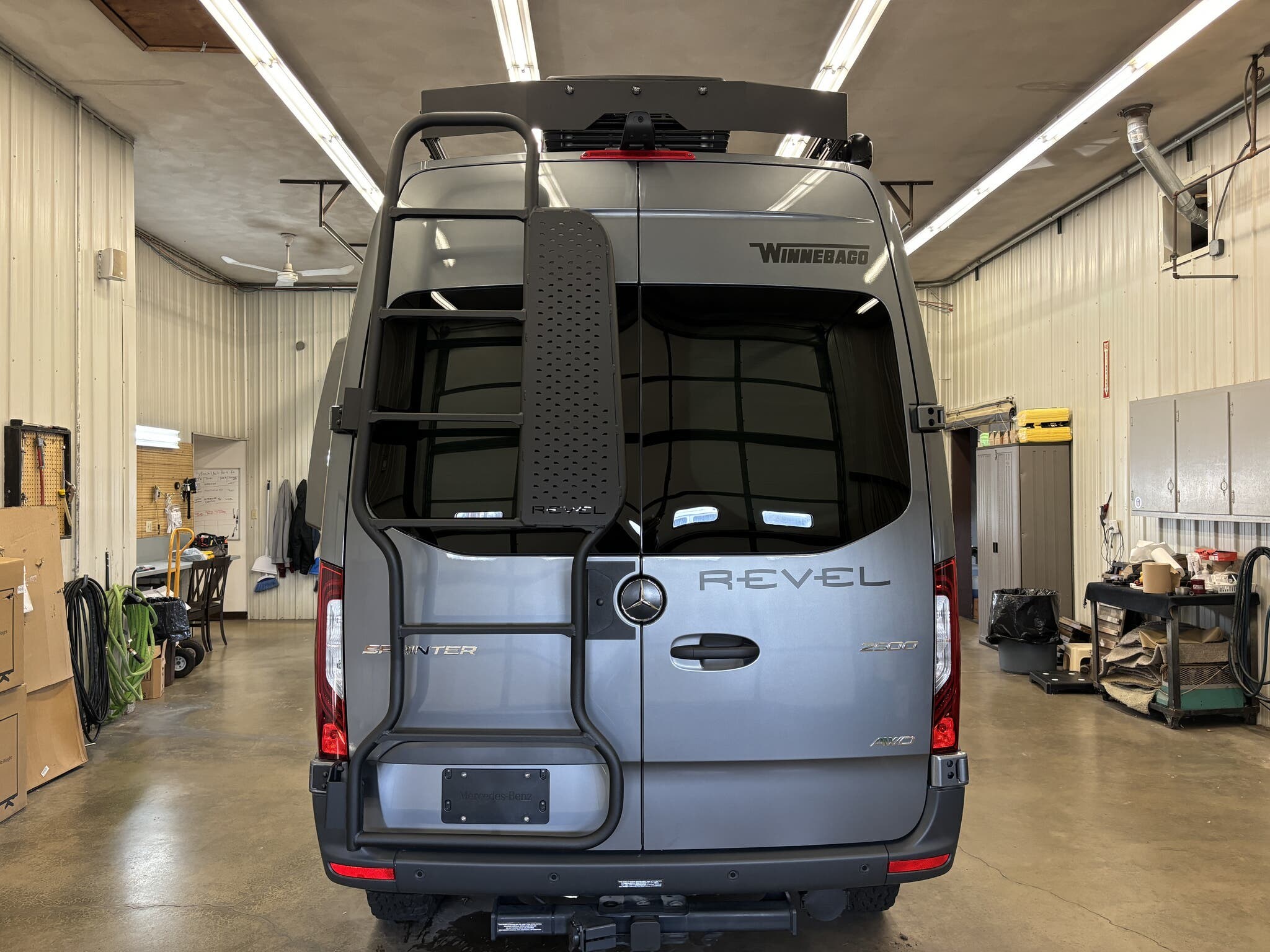

Rear ladder
Luggage rack w/front faring off-road lighting
Porch light w/interior switch
Driver side service light w/interior switch
Tubular running boards w/ground effect lighting
and integrated pet leash attachment

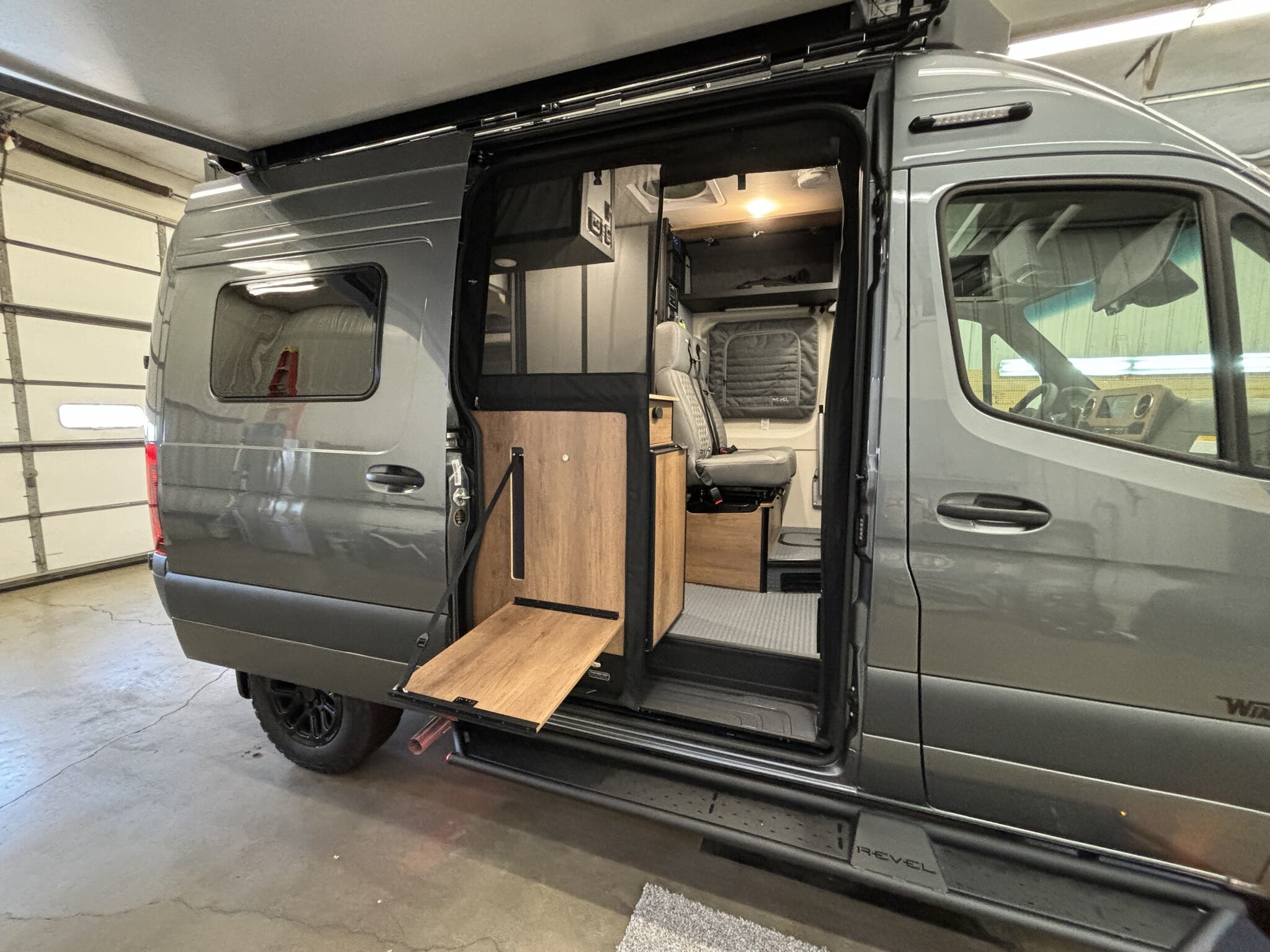

Fold-down exterior table
Rear mud guards
O P T I O N A L E Q U I P M E N T

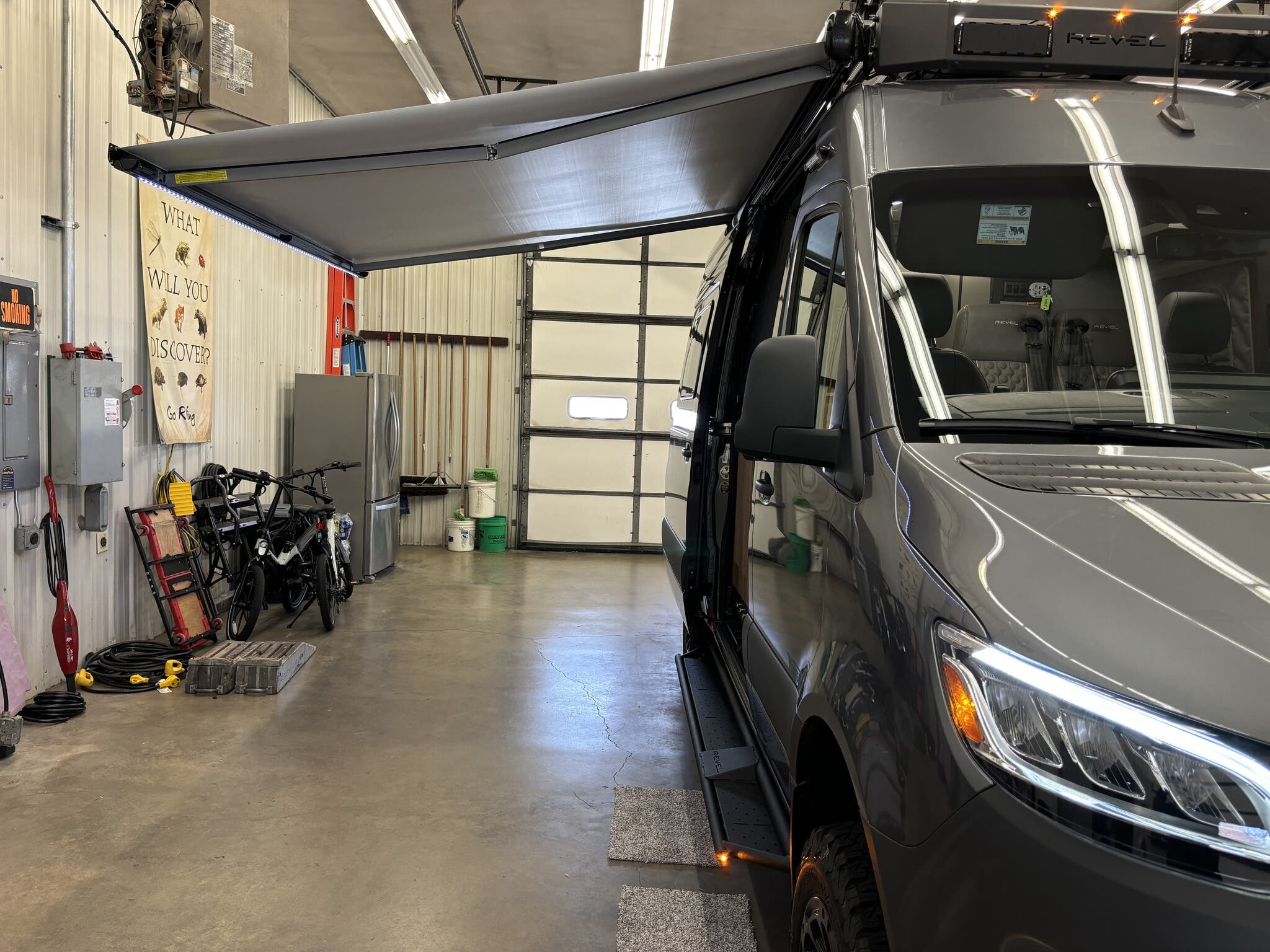

Rack mounted powered patio awning
w/Bluetooth® control
Heating & Cooling System
Hydronic heating system w/multi-zone heating
and LED touchscreen panel
O P T I O N A L E Q U I P M E N T

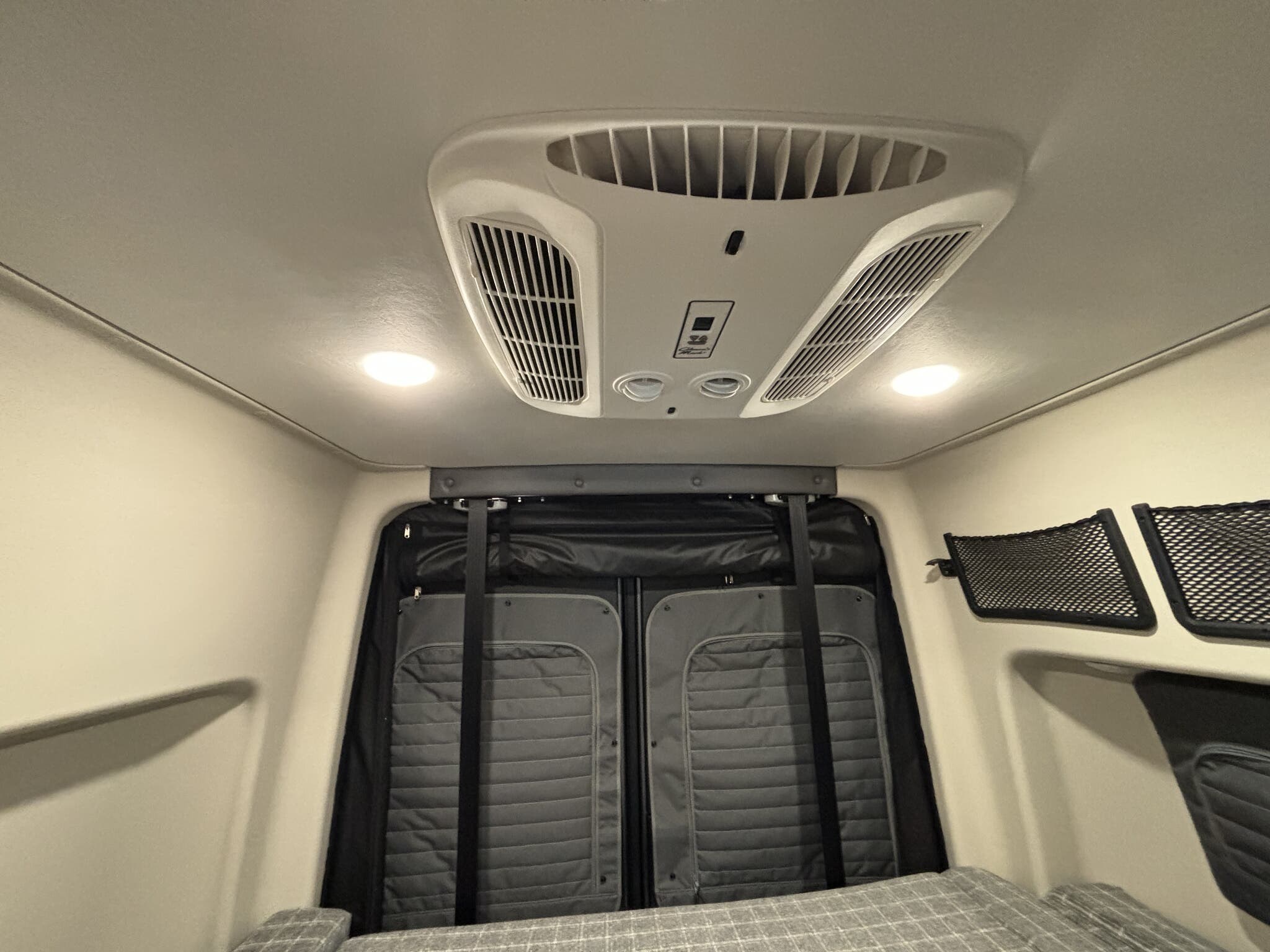

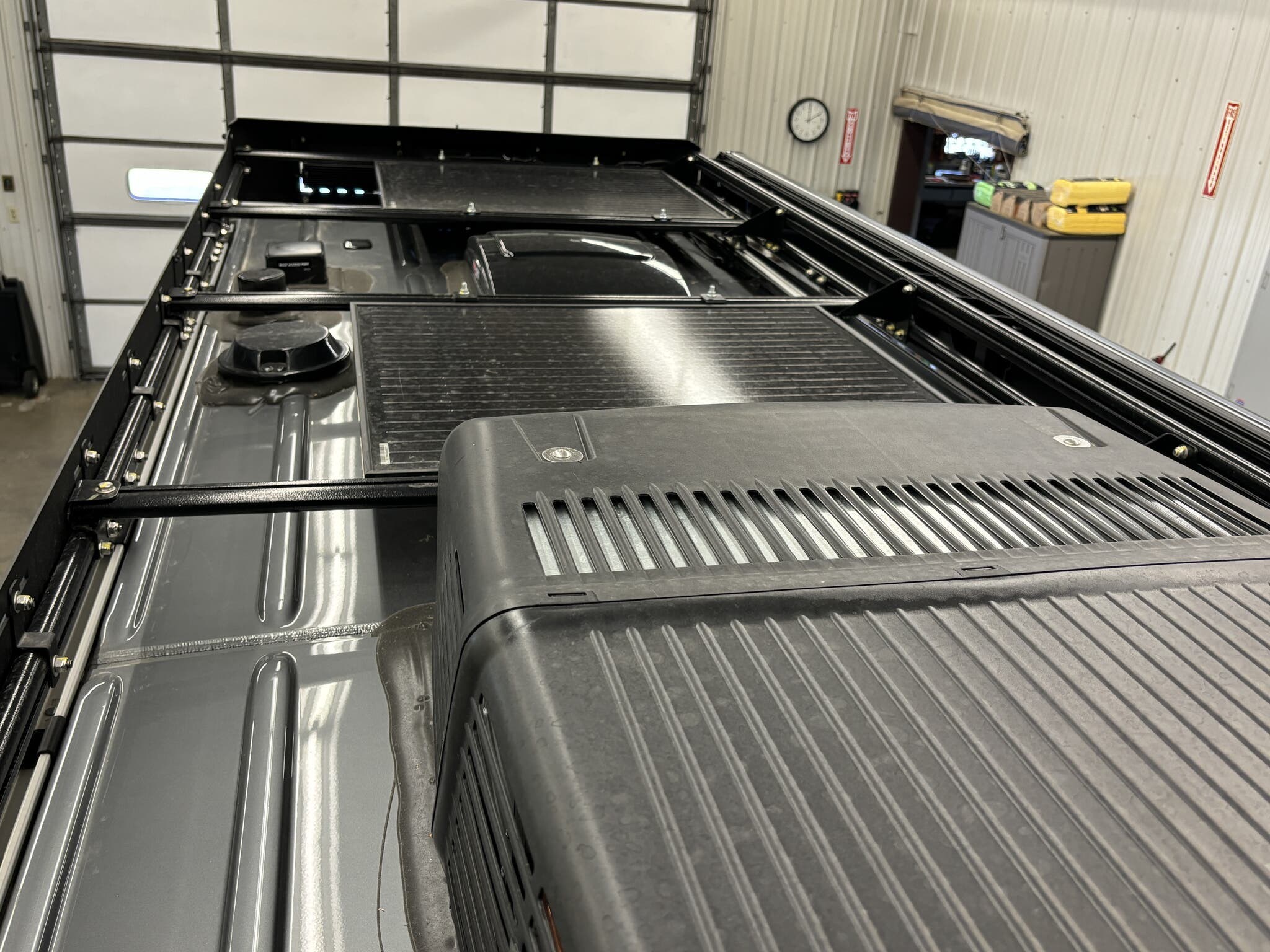

13,500 BTU air conditioner
Electrical System
AC/DC load center/converter
Auxiliary start circuit
Winnebago Power Max (8.4kWh Lithionics® lithium-
ion battery w/dual alternator charging capability,
Bluetooth® control and pack heating system,
Winnebago® x EcoFlow® Power Hub Pro (5-in-1
power management controller [3,600-watt inverter,
inverter charger, DC-DC converter, MPPT solar
charger and alternator charger] and touchscreen
interface) and 210-watts of solar)
Coach battery disconnect system
Automatic dual-battery charge control
30-amp. power cord
O P T I O N A L E Q U I P M E N T
(1) additional 8.4kWh Lithionics® lithium-ion
battery

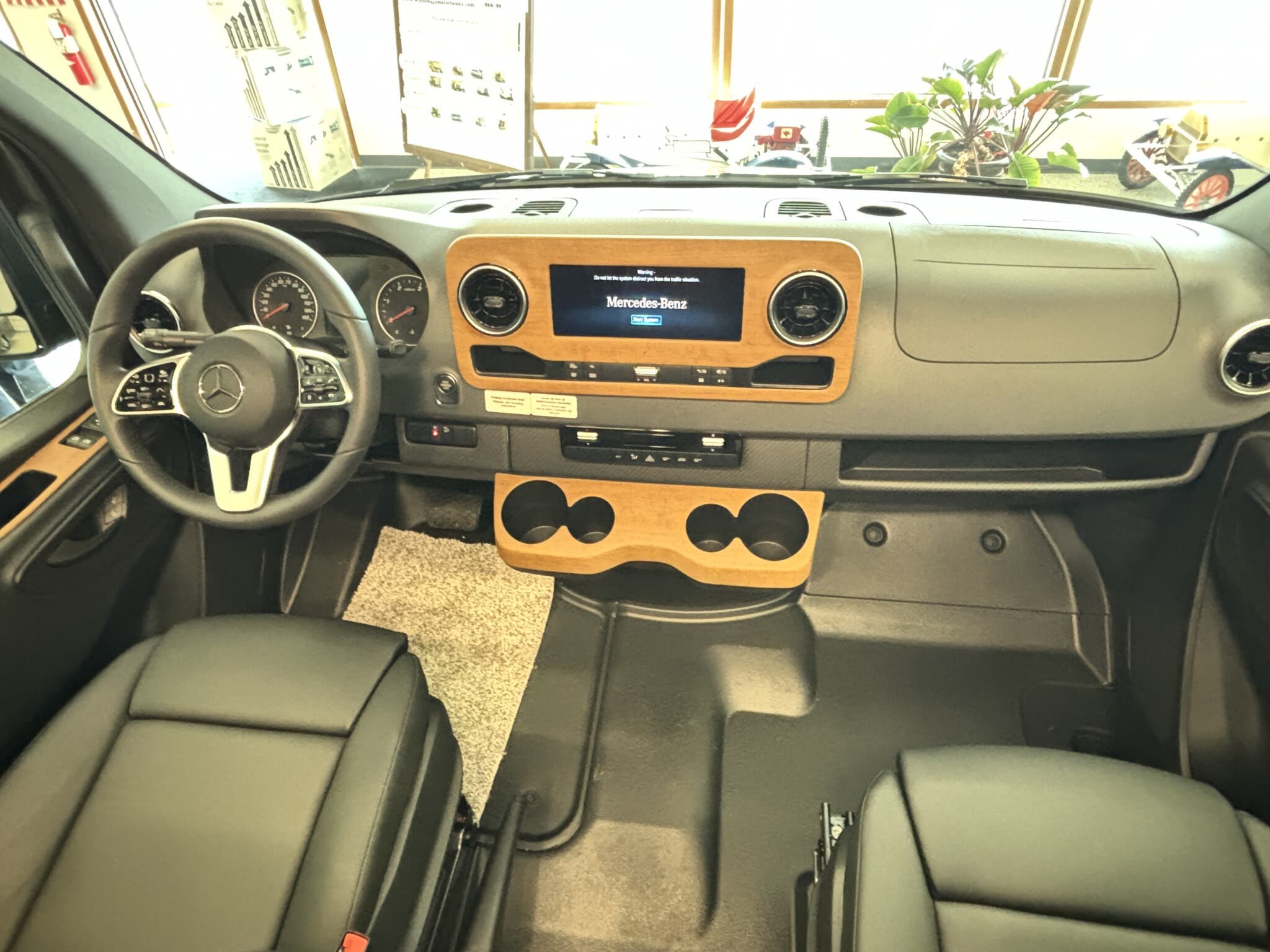

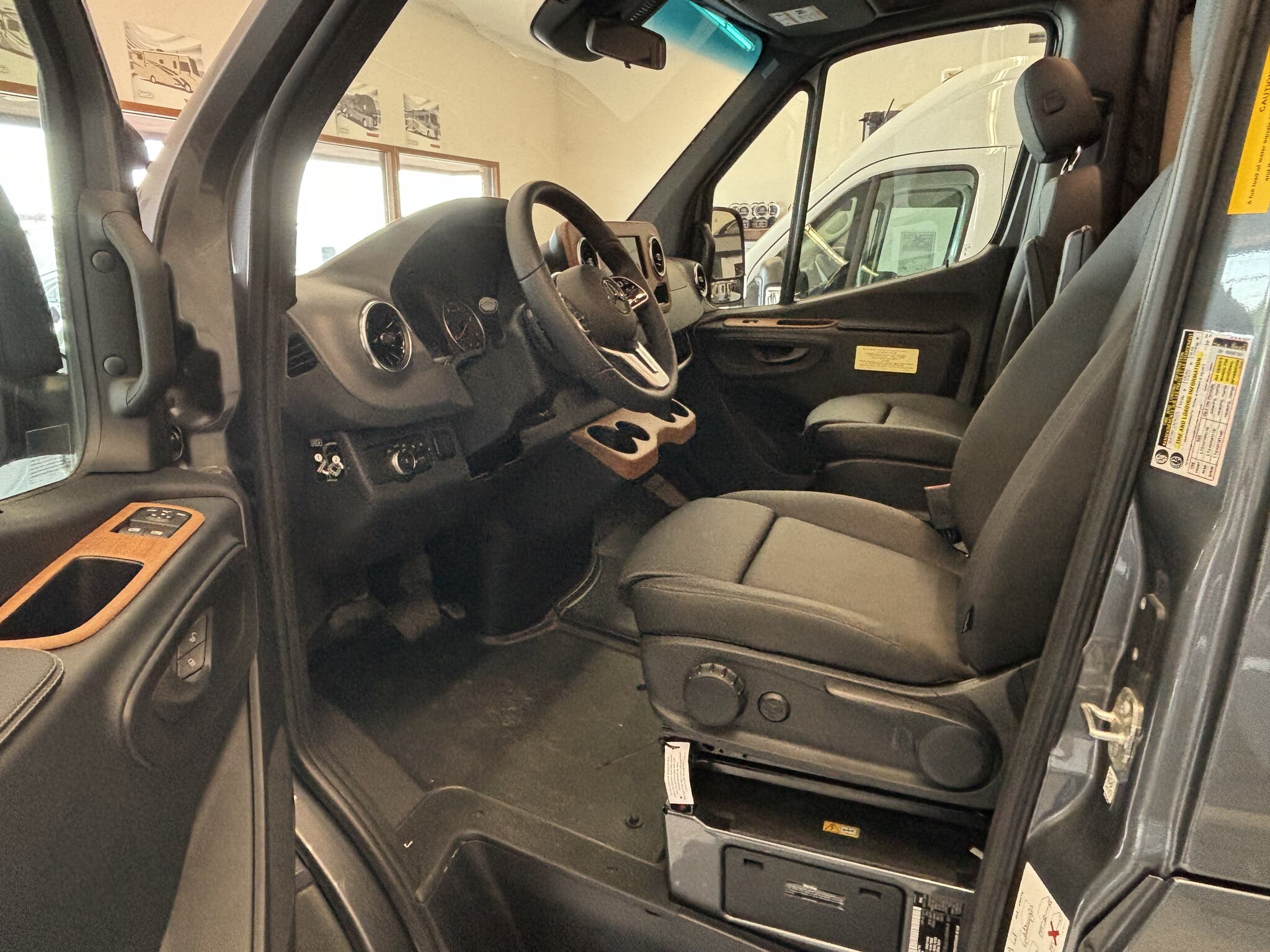

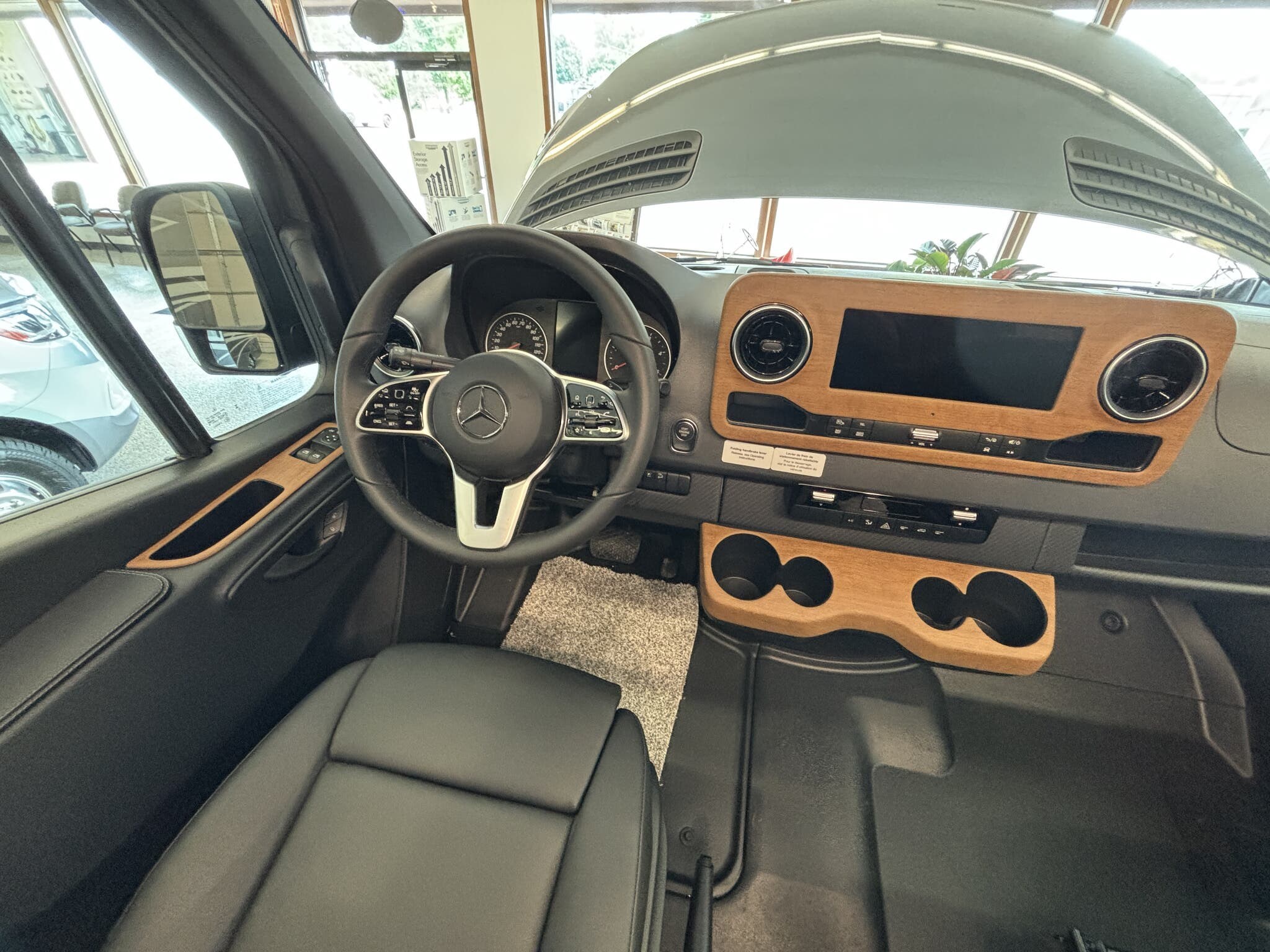

Cab Conveniences

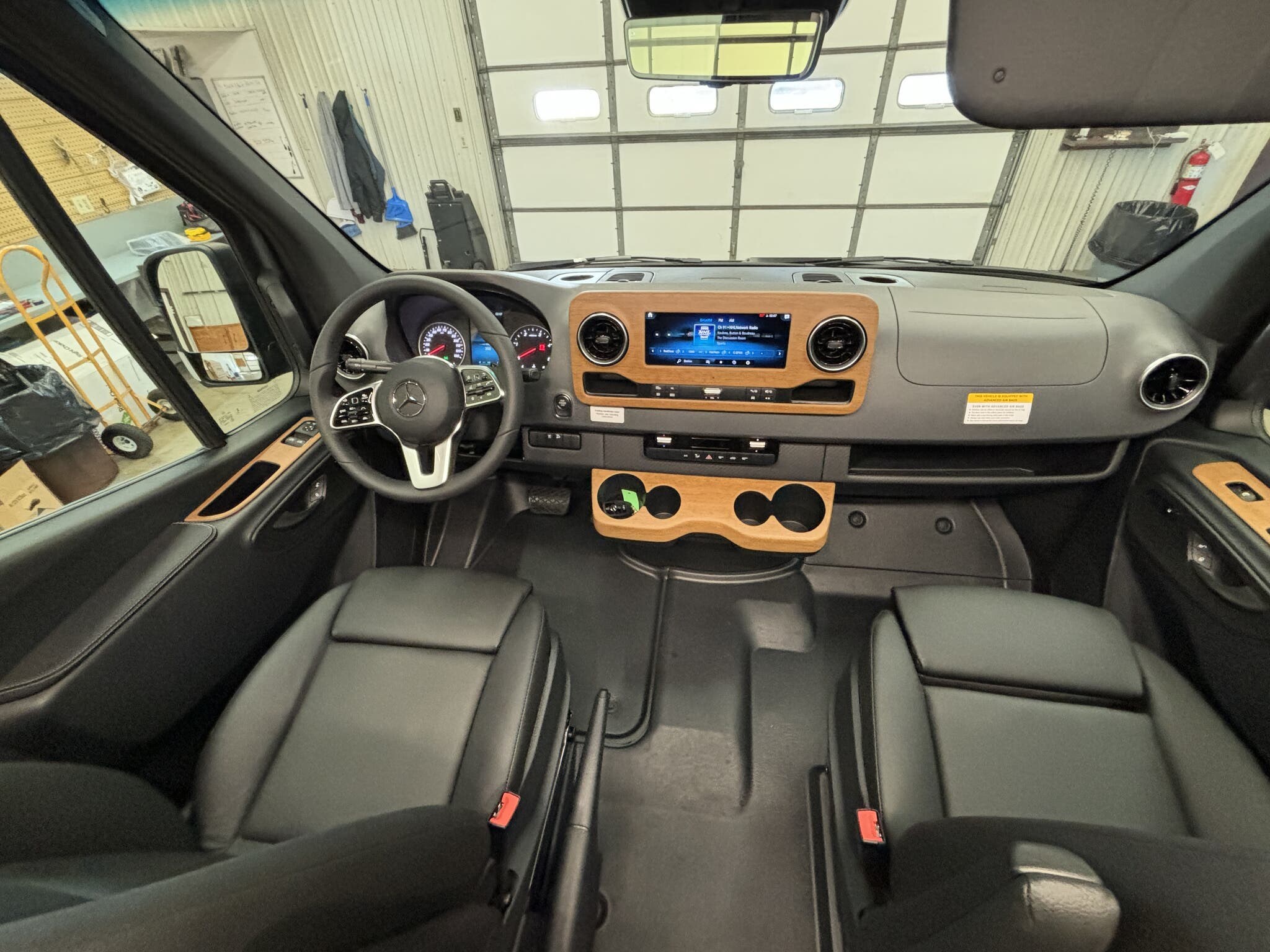

MBUX® touchscreen multimedia infotainment
system w/navigation, Wi-Fi hotspot, intelligent voice
control, and rear camera
Mercedes me connect vehicle app
Cab seats w/single in-board armrest, adjustable
lumbar support, adjustable headrest and slide,
swivel and recline
Airbags driver and passenger
3-point seat belts
DISTRONIC PLUS® (adaptive cruise control)
Power assist steering w/tilt and telescoping wheel
Power mirrors w/defrost and turn signals
Power door lock w/remote control
Power windows
12-volt powerpoints
Sunvisors
Folding privacy shades for front and cab door
windows
Applique package
Rain sensor w/integrated wet wiper system
Auto headlamps w/high beam assist
Active braking assist
Active lane keeping assist
Blind spot assist
Attention assist (driver alert)
Traffic sign assist
Dash charging station (wireless, 12V and USB
charge points)
Interior
LED ceiling lights
Tinted dual-pane euro acrylic windows
w/cassette shades
Front overhead cabinet shelf (cab area)

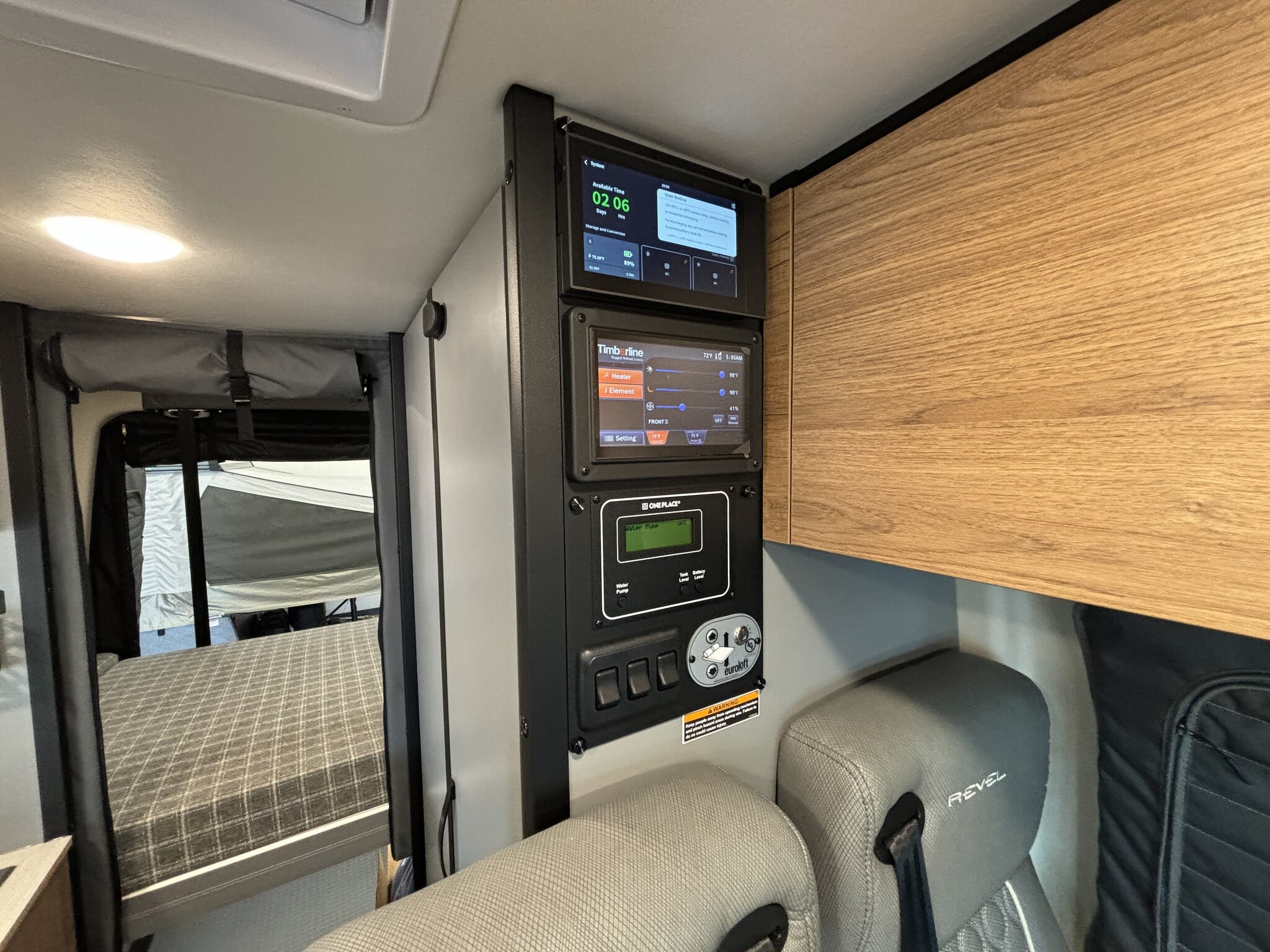

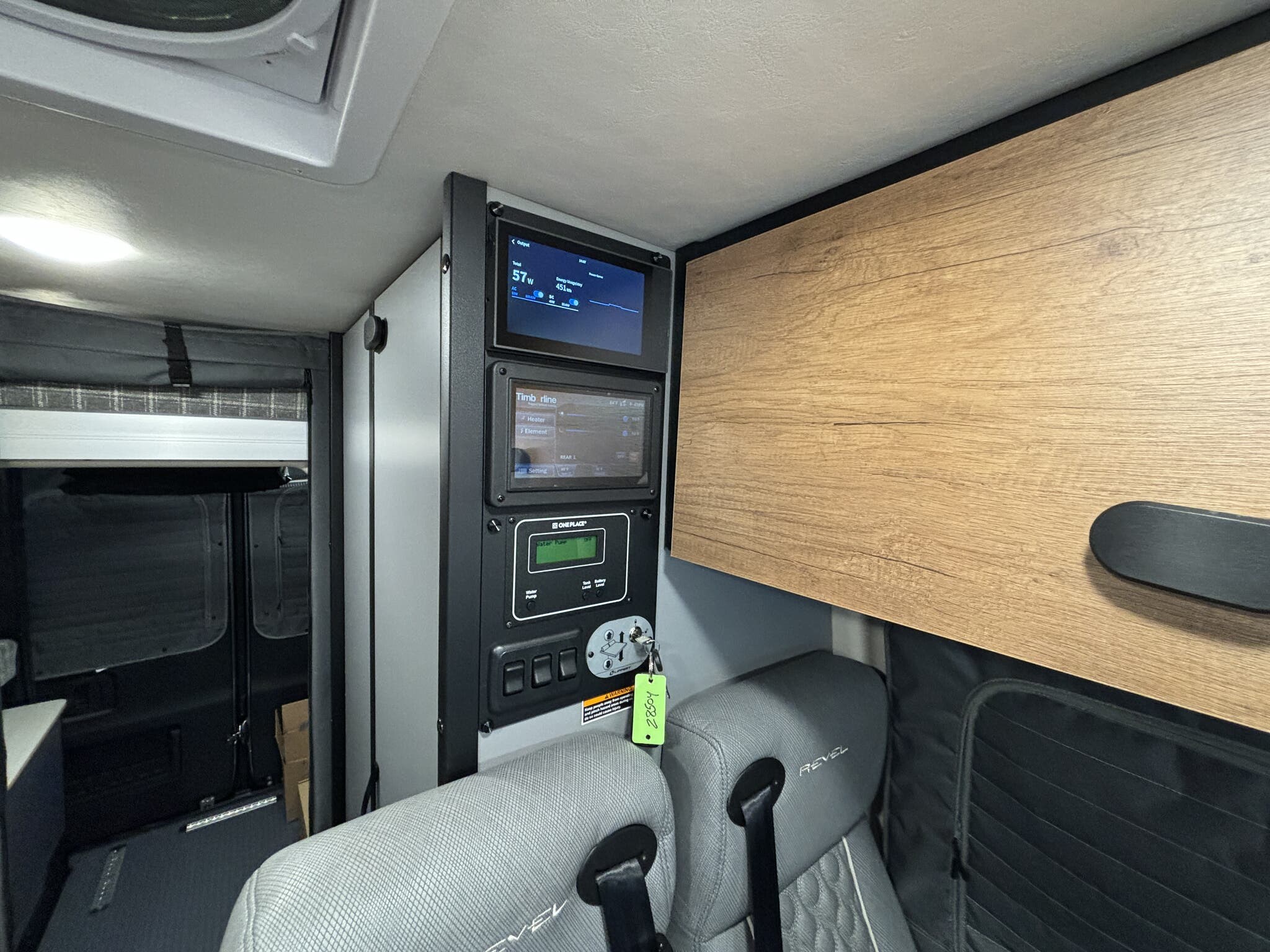

Systems monitor panel

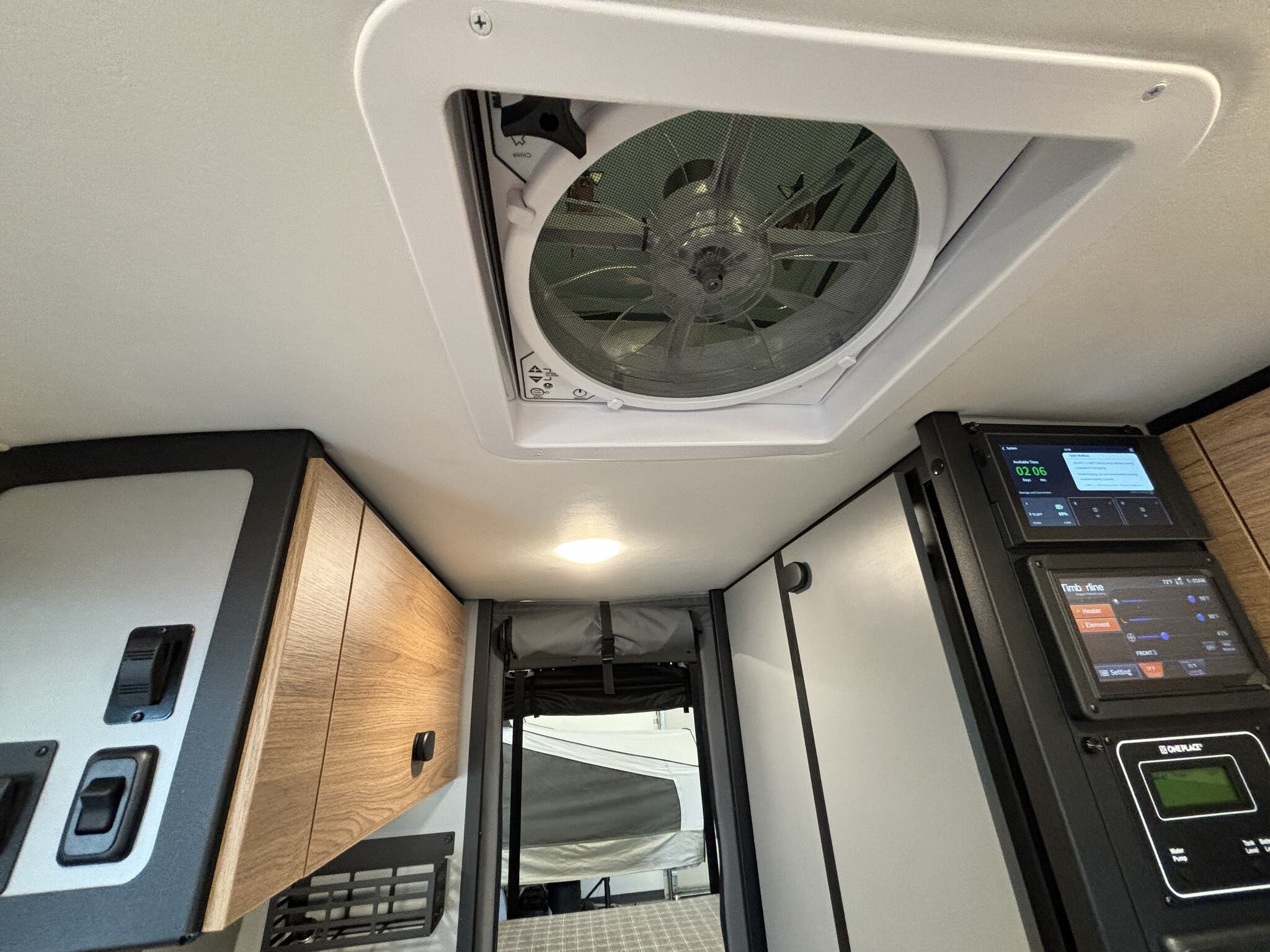

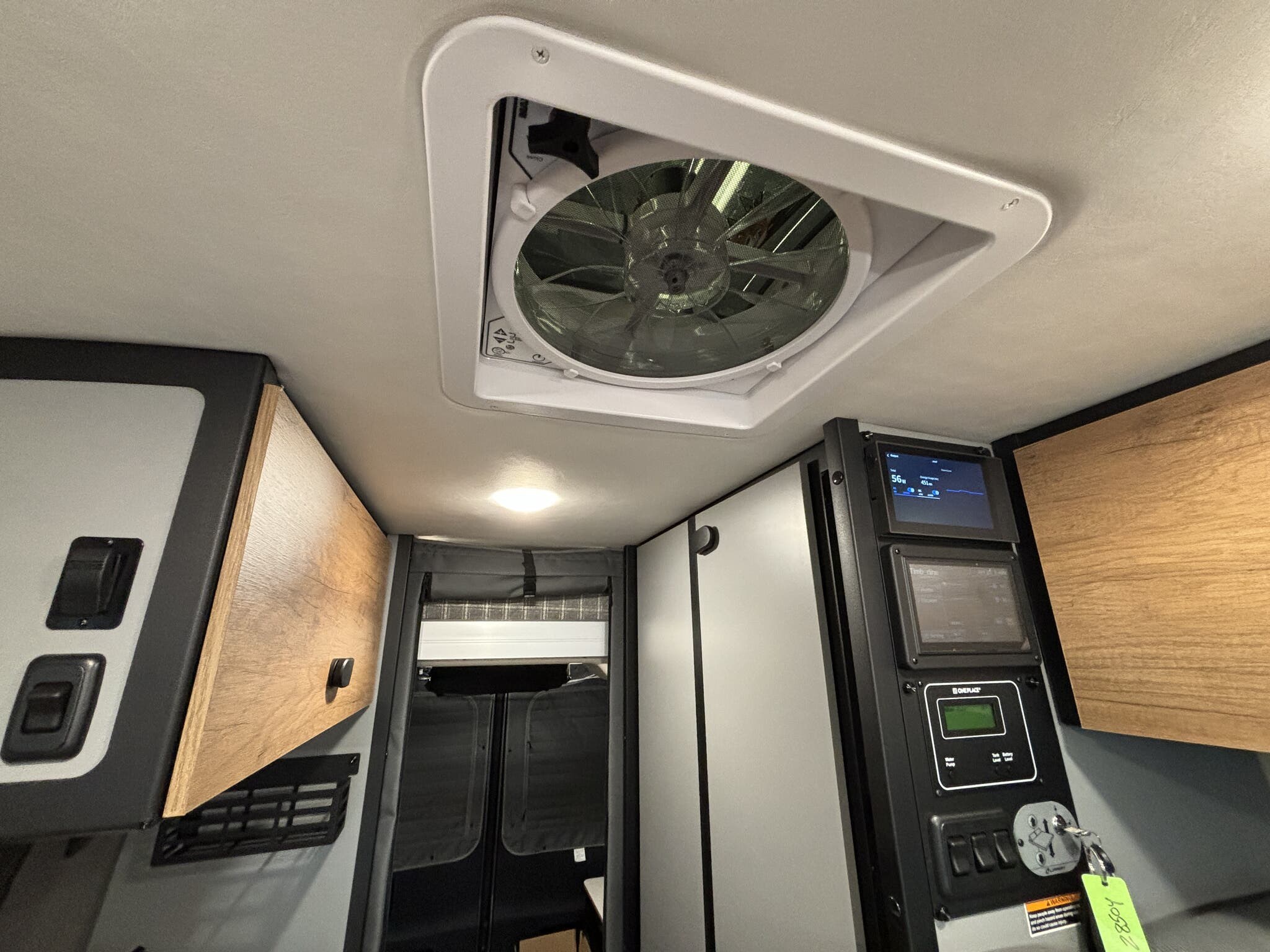

Deluxe powered ventilator fan w/rain cover
RAM® Tough-Track™ mounts throughout

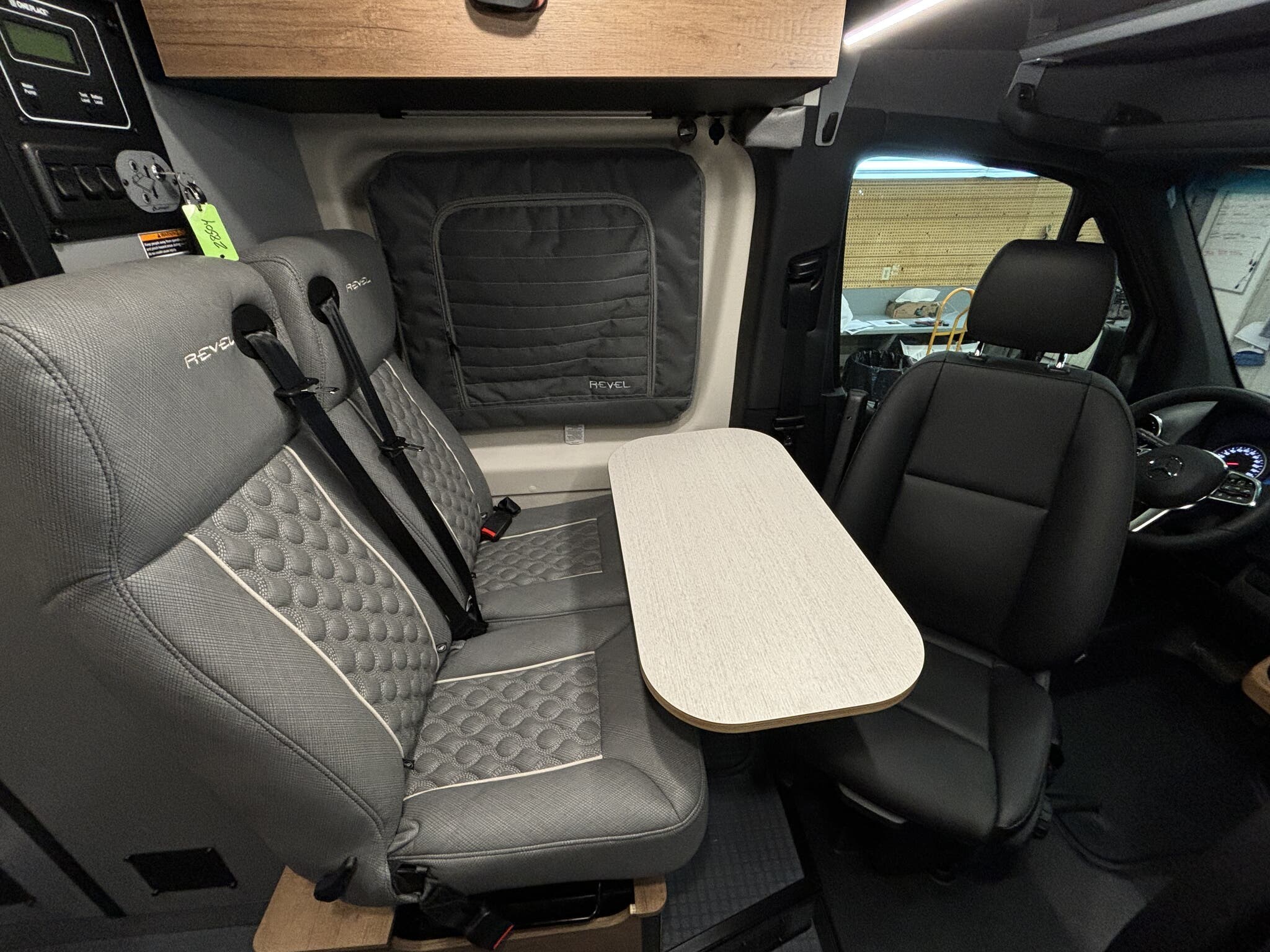

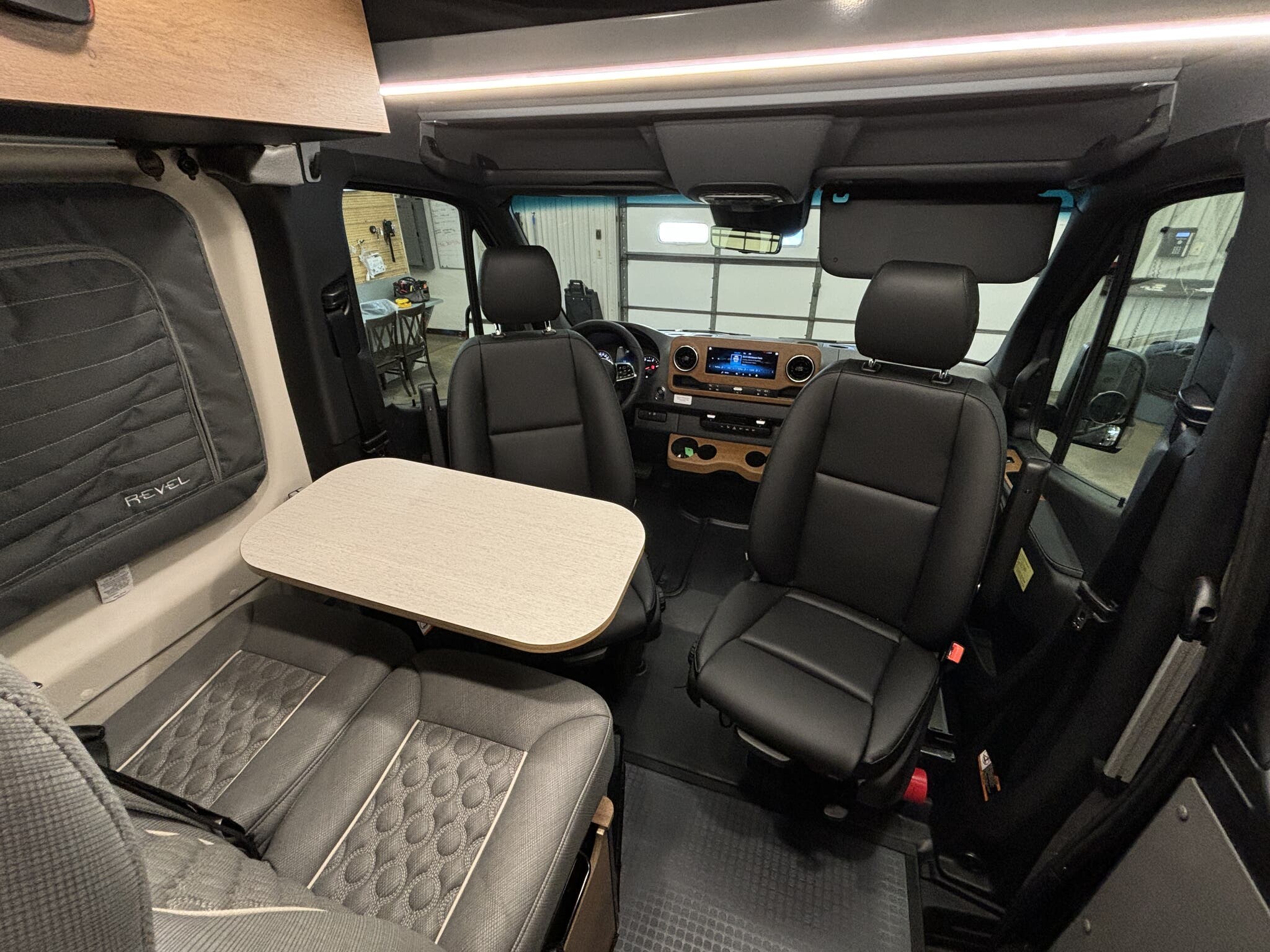

Forward facing lounge seat w/two integrated
3-point seat belts w/forward, recline and slide
adjustments
Adjustable, removable table w/storage behind
lounge seat
WEIGHTS & MEASURES 44E
Length 19'6"
Exterior Height1 9'11"
Exterior Width 7'5"
Awning Length 10'
Interior Height 6'3"
Interior Width 5'10"
Freshwater Tank Capacity2 (gal.) 35
Water Heater Capacity (gal.) Continuous
Cassette Toilet2 (gal.) 5
Holding Tank Capacity - Gray2 (gal.) 21
Fuel Capacity (gal.) 24.5
GCWR3 (lbs.) 13,930
GVWR (lbs.) 9,050
GAWR - Front (lbs.) 4,409
GAWR - Rear (lbs.) 5,359
Wheelbase 144"
Sleeps5 2
Plumbing

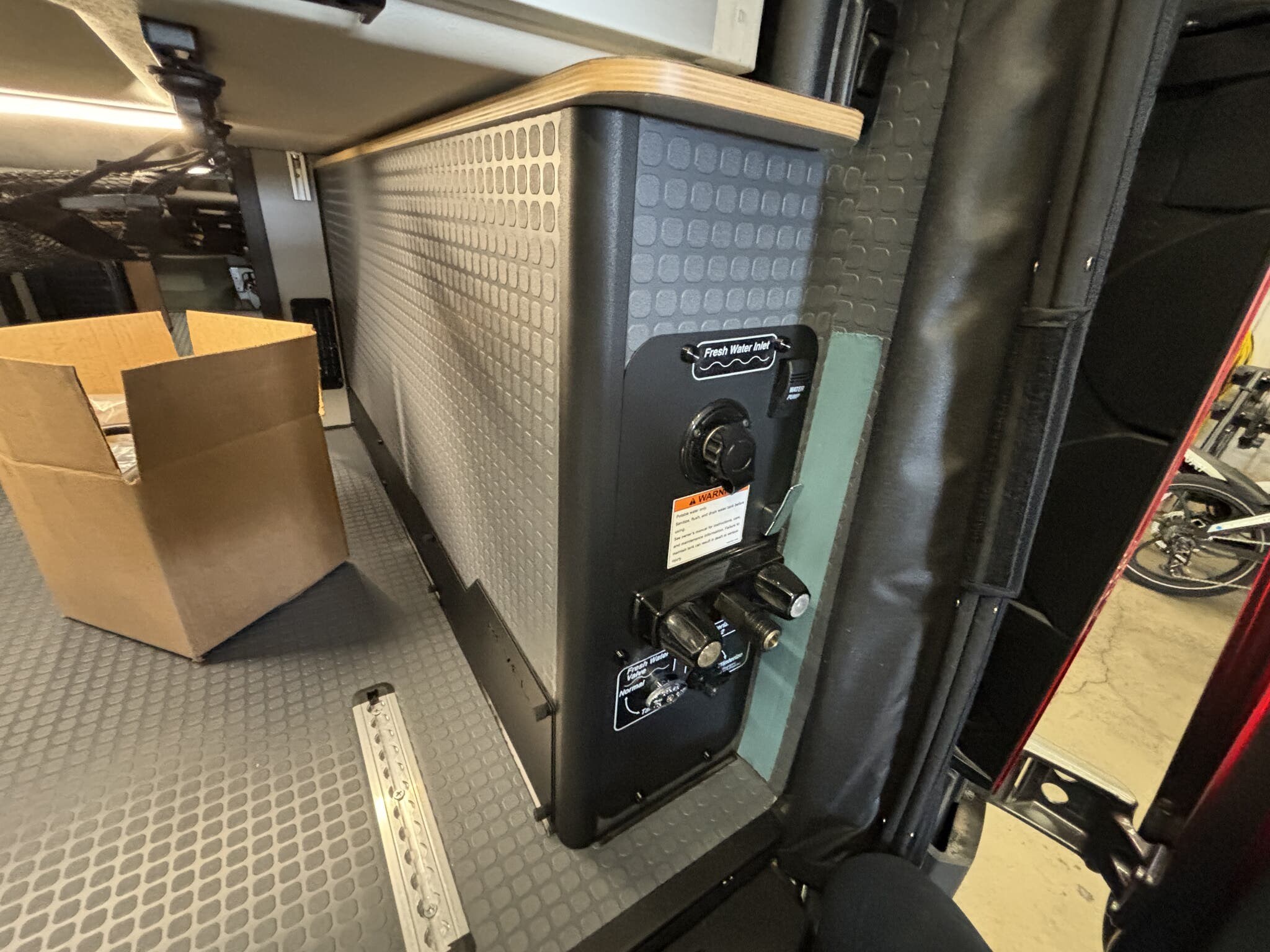

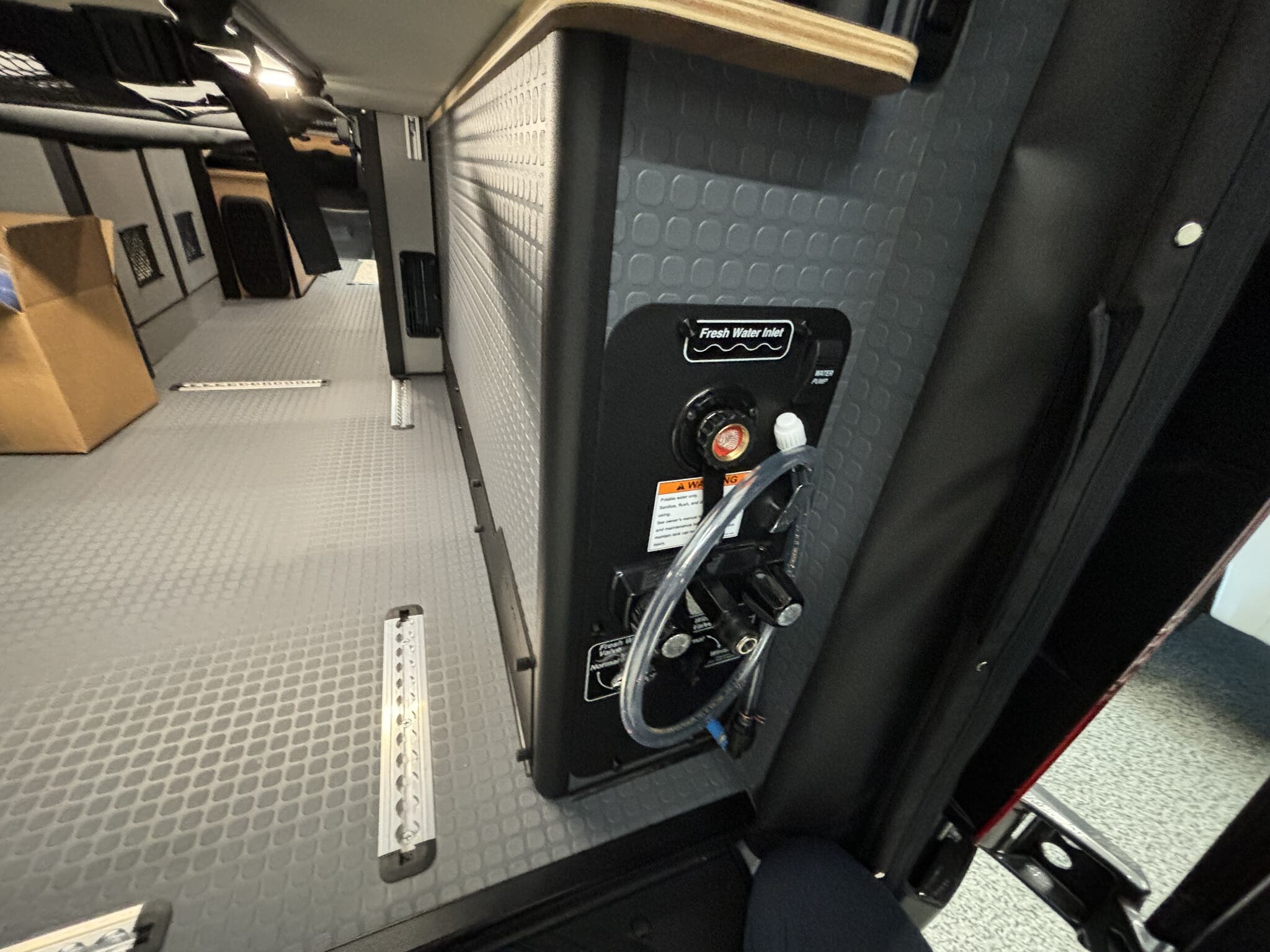

Water center control panel includes all control
valves, connection points and exterior wash
station (located inside right rear door)
10' sewer hose
On-demand water pump
Heated gray water holding tank (below floor)
Heated freshwater holding tank
Galley drain pump
Winterization package w/labeled valves, courtesy
lights and siphon tube
Safety
LP, smoke, and carbon monoxide detectors
Fire extinguisher
Ground fault interrupter
Warranty 4
12-month/24,000-mile basic warranty*
FOOTNOTES
*See your dealer for complete warranty information.
All information is based upon the most recent data available. Visit the
Winnebago web page – – for the most current product
information.
1. The height of each model is measured to the top of the tallest standard
feature and is based on the curb weight of a typically equipped unit.
The actual height of your vehicle may vary by several inches depending
on chassis or equipment variations. Contact your dealer for further
information.
2. Capacities are based on measurements prior to tank installation. Slight
capacity variations can result upon installation.
3. Actual towing capacity is dependent on your particular loading and towing
circumstances which includes the GVWR, GAWR, and GCWR as well as
adequate trailer brakes. Refer to the chassis operator's manual of your
motor home for further towing information.
4. See separate chassis warranty
5. Sleeping capacity is the maximum based on a specific floorplan.
n/a Not Available
Not all items available in combination. See dealer for details.
Because features, specifications, equipment, and options may vary from those
highlighted here, the buyer is responsible for confirming with the dealer the
features, specifications, equipment, and options included on their specific
vehicle. In addition, Winnebago’s program of continuous product improvement
may result in changes to vehicle specifications, equipment, model availability,
and price without notice.
Winnebago recommends following the winter use guidelines and winterization
procedures outlined in your owner’s manual whenever camping in free

This unit is equipped with Overlander interior up grade pkg , Roof A/C , Power awning , Selenite Gray , Cab seat bed , and Performance stylized wheels ,
