Specs for 2014 Jayco - Seismic

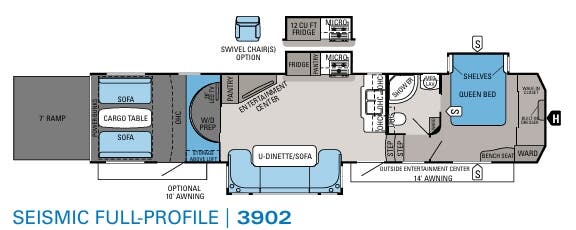

Floorplan: 3902 (Toy Hauler)

Dimensions

Weights

Capacities

2014 Jayco Seismic RVs for Sale Near You

Exterior

Electrical

Features

Exterior
High-gloss fiberglass sidewalls
3/8" plywood roof decking on 5" crowned wood truss rafters (R-30)
5/8" tongue-and-groove plywood main floor decking
12" I-Class cambered structural-steel I-beam frame
Heat reflective foil insulation in living area, bedroom and slideout floors
One-piece seamless roof membrane
16" radial tires
E-Z Lube axles
MOR/ryde CRE 3000 rubber axle equalizer
Dexter Nev-R-Adjust brakes
Pin box, long
30" x 72" radius-cornered entrance door with step light, oversized window and Epad touch-pad gas-strut door locks
Marine-grade exterior speakers (2)
12V electric patio awning
Hand-held remote for awning, slideouts, jacks and patio lights
Stor-Galore basement storage
Metal slam-latch lockable baggage doors, insulated and radius-cornered
Integrated LED front cap docking light
Electric-powered front jacks
Heated, enclosed Uni-Dock utility center
5,500-watt generator with auto-changeover switch
Double 30-lb. propane bottles, regulator and additional (1) 30-lb. tank storage
Battery compartment and disconnect switch for two batteries
30-gal. fuel station, dual, with command center gauge
148-gal. fresh water capacity
Black holding tank sprayer
and sewer hose compartment
Water system winterization kit
Outside shower
Electric-powered rear stabilizer jacks (2)
LED taillights

Interior
Residential-style pre-drilled and screwed cabinet construction with hidden hinges
Ball bearing drawer guides, 100-lb. capacity
Below-countertop trash receptacle
Deep storage booth dinette drawers
High-gloss, solid-surface countertops with undermount stainless-steel sink and sink covers (2)
Brushed nickel faucet with pull-out sprayer
3-burner range with 9,000-BTU
SuperBurner, piezo igniter
Mirror feature behind stove
8 cu. ft. flush-mount, double-door refrigerator with high-gloss black inserts
24" microwave oven with carousel
Oversized 21" oven
Water heater bypass system
Water purification system
40,000-BTU furnace, auto-ignition and black digital thermostat
Island/bar area long-stem pendant lights
Toe-kick kitchen accent lighting
LED recessed lighting package
Samsung 1,000-watt home theatre system
Thermofoil bathroom countertops, clear vessel sink and high-rise nickel faucet
Radius shower with colored ABS surround
Flat-panel door with decorative glass
Ceiling bedroom crown molding
Denver Mattress Advanced queen-sized (60" x 80") pillowtop mattress
Gas-strut, under-bed storage
Walk-in closet
Bedroom cabinet with 22" LED HDTV, DVD, satellite and cable jacks
Bedroom wired and framed for second A/C

Ramp & Cargo Equipment
Vacuum-bonded laminated 2" garage floor
7' 10" hinged spring-assist ramp door,
3,000-lb. capacity, 93 3/8"-wide opening with anti-slip, non-skid flooring
18"-wide tread plate splash guard
Tuff-ply, rubberized garage floor liner
Welded-steel storage in garage floor/ full-width beaver tail
Flush floor-mounted tie-down rings, anchored to frame, 2,500-lb. capacity
30" x 72" garage door with LED step light
Premium coach/cargo passage door with window and LED light strip
High-intensity, flush-mounted ramp lights (2)
HappiJac electric bed lift
Dual opposing electric sofas
Black retractable screen wall/cargo bay privacy curtain
Patio door with screen (3902 and 3914)
3 cu. ft. refrigerator
Washer/dryer prep, located in cargo area
Cargo area vent ports, powered roof vent and closeable, directional A/C ducts

Customer Value Package
(maNdatory)
8-lug polished aluminum wheels
Electric patio awning
Security lights (2)
Spare tire with carrier
Black folding roof ladder
Insulated and heated holding tanks
12-gal. gas/electric DSI water heater with auto-ignition
Whisper Quiet 15,000-BTU air conditioner with multi-directional, louvered-directional ceiling vents
Bi-fold range cover
Home theatre system with 40" LED HDTV
Bath skylight
Power bathroom vent with large blades
