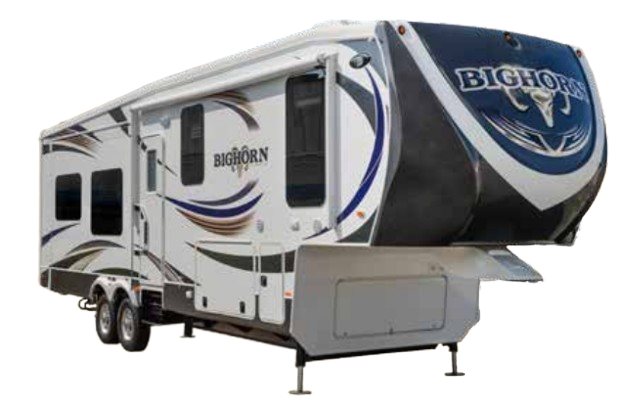

Specs for 2016 Heartland - Bighorn
Floorplan: 3970RD (Fifth Wheel)

Dimensions

Weights

Capacities

2016 Heartland Bighorn RVs for Sale Near You

Exterior

Electrical

Features

Hand Crafted Cabinetry:
Glazed hardwood sedona cabinetry & fascia
Amish-crafted natural hardwood cabinet doors with hidden hinges and drawers
All cabinet frames are pre-drilled, and screwed together - not stapled
Baltic birch drawer construction (Real Wood)
Deluxe ball-bearing drawer guides
PATENT PENDING Front Cap and Frame Design
SPECIALLY Designed and Engineered For SHORT BED TRUCKS, allows for tighter turning radius on short bed, extended cab trucks
Truly unique aerodynamic profile
Painted front cap

Exterior:
High gloss sidewalls
ABS hitch cover
Entry door overhead light
Automotive aerodynamic styled rear cap with LED turn lights
Painted aluminum rear ladder

Universal Docking Center:
12 volt light
Exterior shower with hot & cold water
Black tank flush system hook up
City water hook-up with high pressure fresh tank fill
Shielded RG-6 coaxial cable hook-up
Satellite hook-up (roof or tri-pod)
Holding tanks pull handles
Winterization valves

Largest Exterior Storage In It's Class!:
Offering over 140 cubic feet of storage!
Large insulated slam baggage doors
Unobstructed pass-through design
12V lights
1 cable outlet / 110 volt outlet

Bedroom:
Built-In closet system featuring hanging clothes rods, recessed shelving
King size bed
Memory foam mattress
Two windows in slide for better air flow
Tall dresser with four large drawers
6´4" bedroom ceiling height throughout
Level floor between bath and bedroom
LED reading lights over bed
Storage shelves in bed slide room
Deluxe headboard design
Pillow package and comforter
Massive under bed storage
Pull-out storage drawer in steps
32" deep bedroom electric slide rooms (most models)

Wall Construction:
Laminated fiberglass sidewalls
Double-welded aircraft quality aluminum superstructure cage construction
Drip rail with down spouts
Deluxe power exterior awning

Standard Window Features:
Frameless dark tinted safety glass windows with UV inhibitor
Huge panoramic rear bay window
Huge panoramic windows in dinette
Ventilation slider side windows

Laminated Roof Construction:
Welded aluminum frame
Walkable roof decking (3/16")
One-piece seamless EPDM rubber roof
Radius metal roof cap

3" Laminated Floor Construction:
Strong aluminum framing
Block foam insulation
3/8" seamless decking
Thermo-board luan on the bottom
R-14 laminated upper deck floor

Frame & Landing Gear:
Strong 12" I-beam frame with rust prohibitive coating (10" on smaller models)
Hydraulic landing gear jacks (no snap pins required)
Heavy duty electric rear stabilizer jacks (N/A with six point auto leveling system)

Tires & Axles:
Correct Track alignment system
Heavy-duty G-rated 16" tires
Aluminum rims
Spare tire
E-Z Flex™ suspension system by Dexter with quad shocks - for the smoothest ride around
7,000 lb. Dexter axles with Easy-Lube™ hubs (all models)
2" x 12" Nev-R-Adjust brakes by Dexter
Monogrammed ABS fender skirts

Underbelly:
Seamless corrugated underbelly material
Heated and enclosed underbelly
Heated and Insulated holding tanks & gate valves
Flexfoil insulation (R-14)

Plumbing:
Color-coded Plumb-PLEX™ water lines with 10/25 year warranty
Quick and easy winterization system

Tank Size & LP Gas System:
67 gallons - fresh water capacity
135 gallons waste water - 90 gal. grey / 45 gal. black
(2) 30# LP bottles with auto change over (room for (2) 40# LP bottle option)

Power:
80 Amp/12V DC power converter
50 Amp detachable marine cord
Dual battery box (1 battery included)
110V exterior electrical receptacles
Battery disconnect

Heating & Cooling:
Seamless one piece below floor heat duct
42,000 BTU furnace
Whisper Quiet A/C system - includes dual high output 15,000 BTU A/C units
Insulated in-roof A/C duct system for maximum efficiency
Air conditioned stool room

Total Insulation Values:
Walls - R11 *All formaldehyde-free insulation
Roof – R34
Slide room floors - radiant insulation R38 equivalent
Main floor - R38 • upper deck floor - R14

Main Slide Room:
6´ 5" ceiling height (7' 2" on some models)
Hydraulic operating system
Selector valves for slide rooms
Double squeegee seals with one-piece
Weather-proof floor pan
12V LED lights
Cabinets above sofa
Hydraulic manual override system

Entertainment & Connections:
Computer desk station (most models)
Decorative glass door inserts
46" or 55" LED high definition TV (Depends on model)
Pre-wired for Winegard Trav'ler satellite system
Residential style receiver with built-in DVD Player, FM radio and Bluetooth™

Interior Standards:
All-in-one master control panel with DSI water heater switch, tank level monitors, slide switches and light switches
"Welcome back light"
MCD roller shades
Metal entry handle
Custom slide out fascia

Living Room:
Residential swivel glider recliners with power massage
Upgrade flip & fold sleeper sofa
110V ceiling fan with light kit

Appliances and Lighting:
18 Cu.Ft stainless steel refrigerator
3-burner cook top w/oven
30" microwave oven over the range
Boutique pull out sprayer faucet in kitchen
12 gal. water heater (gas/electric DSI)

Kitchen:
Recessed LED lighting
Real solid surface countertops with pencil nose edge
Residential resilient flooring
24" deep residential sized cabinets
Toe kicks (most models)
Residential size, stainless steel kitchen sink with matching solid surface sink covers
20" deep residential size drawers
Custom crafted dinette table and two chairs with built-in storage
Large, deep pantry
Three speed, temperature control
Fan with rain sensor

Bath Area:
6´4" bath/bed ceiling height throughout
Residential resilient flooring
Solid surface countertop with undermount sink and matching sink cover
Large mirrored medicine cabinet
Linen base cabinet storage

Shower:
1-piece fiberglass mini mega shower (most models)
Elegant glass shower surround
Domed skylight over shower

Commode Room:
Power roof ventilation
Dual 12V LED lights with soft lighting lenses
Porcelain commode w/foot flush
