Specs for 2017 Coachmen - Catalina Destination

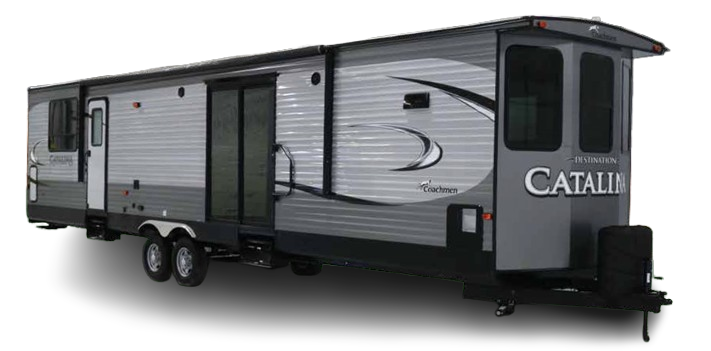

Floorplan: 40BHTS (Destination Trailer)

Dimensions

Weights

Capacities

2017 Coachmen Catalina Destination RVs for Sale Near You

Exterior

Electrical

Features

EXTERIOR:
Cambered structural steel I-beam frame.
3/8" fully decked walk-on roof.
2" x 3" longitudinal floor joists on approximately 12" centers.
Blue LED under carriage lighting.
Residential in-floor ducted heat.
84" ceiling height destination trailers.
One-piece, seamless, rubber roof material with 12-year warranty.
Easy-Trac electric slide out(s).
Wall studs on 16" centers.
1/2" plywood dinette, bed and bunk platforms.
Roof rafters, constructed of residential-style tapered 5" trusses.
5/8" tongue & groove plywood floor decking.
R-7 fiberglass insulation in sidewall, roof & floor.
.024" aluminum exterior skin with .030 skirt metal.
Dark tinted (G-20) black framed windows w/safety glass.
Oversize swing arm entry assist handle at main entry.
Radius entry steps.
SuperLube™ easy maintenance axles.
Painted bumper w/drain hose carrier and end caps.
Radius-cornered fiberglass entrance door.
Painted bottom radius skirting.
Amber patio light w/inside switch.
Baggage doors are lockable and radius cornered.
Grab handle at second entry (per floorplan).
Rain guttering, molded w/drip spouts.
Polished aluminum fender skirts.
Large bay front windows.
Stabilizer jacks (4).
TV antenna w/cable interior/exterior hook-ups.

INTERIOR:
Grace cherry interior wood.
Congoleum woodplank linoleum flooring.
Recliner lounge chairs (per floorplan).
Residential furniture.
TV antenna with signal booster.
Cable hook-up with RG-6 coax cabling.
Valance and decorative curtains.
Solid doors throughout all units.
Large dinette tabletop.
Night shades in living area and bedroom.
Single piece thermofoil countertop with waterfall edge.
Full sized residential refrigerator.
3-burner range w/ 9,000 BTU SuperBurner™.
Convenient breakfast bar in all models.
Polished aluminum fender skirts.
Kitchen drawers with full extension metal ball bearing drawer guides.
Easy-view extra-large picture window at dinette.
Residential style lighting above dinette w/wall sconces.
Silverware drawer.
Under-bed storage, bed lifts easily on gas struts.
Designer decorative headboard.
Skylight above bath and shower.
Shower with glass doors.
LED lighting.
Marine toilet with foot flush.
Large sink in bathroom.
Medicine cabinet w/mirror.
Bathroom power roof vent.

STANDARD HEAT, WATER AND POWER EQUIPMENT:
Roto-cast holding tanks.
35K BTU auto-ignition furnace with wall thermostat.
110V G.F.C.I. protected exterior receptacle.
50-amp electric service.
12V demand water pump.
Systems monitor panel.
Hook-up for city water.
Double 30-lb. propane gas bottles w/regulator and ABS cover.
Water heater by-pass winterization kit.

DESTINATION EDITION VALUE PACKAGE:
15K BTU ducted A/C.
Tri-fold hide-a-bed sofa.
32" flat screen TV & bracket in living.
AM/FM CD radio with DVD.
Stainless steel oven.
Flush mount 3 burner range with bi-fold glass range top.
Stainless steel range hood.
Stainless steel microwave.
Mosaic tile backsplash.
Under mount dual deep basin kitchen sink w/sink covers.
10-gallon G/E DSI water heater.
Glass step-in shower w/ABS surround.
Serta sleep system mattress.
Kitchen bar stools.
Living room & master bedroom ceiling fans w/wall switch.
Marine grade exterior speakers (2).
Sport wheel package.
