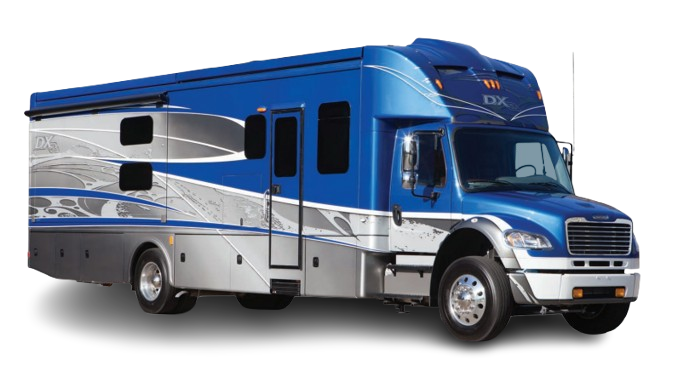

Specs for 2017 Dynamax Corp - DX3

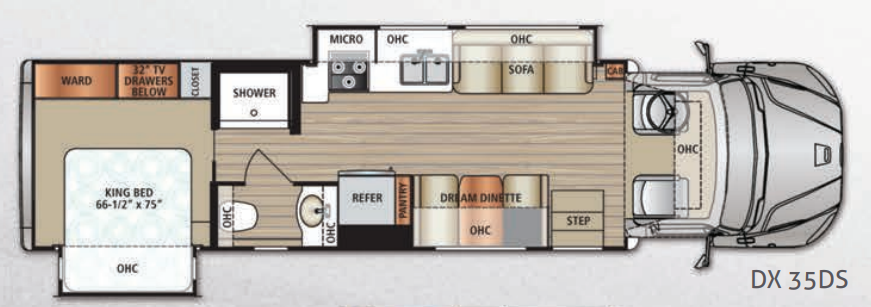

Floorplan: 35DS (Super C)

Dimensions

Weights

Capacities

2017 Dynamax Corp DX3 RVs for Sale Near You

Engine/Transmission

Exterior

Electrical

Features

CHASSIS:
Freightliner M2 106 Chassis with Cummins® 8.9L ISL 350 HP engine producing 1,000 lb.-ft. of torque.
Allison 3200 TRV six-speed automatic transmission.
GVWR: 33,000 lbs.
GCWR: 54,000 lbs.
Trailer hitch rated at 20,000 lbs. towing capacity and 2,000 lbs. tongue weight with a 7-way flat pin tow connection.
Fuel capacity: 100 gallons (twin 50-gallon aluminum fuel tanks).
6-gallon diesel exhaust fluid tank.
Equiflo™ inboard fuel system.
Fuel filter/water separator with primer pump.
Engine after-treatment device with automatic over-the-road regeneration and dash-mounted regeneration switch.
Dual-stage C-Brake by Jacobs with LOW/OFF/HIGH braking dash switch.
Air brakes with 4-wheel ABS.
Bilstein gas charged front shock absorbers.
Differential lock.
Airliner 21,000-lb. rear suspension.
Dual chassis batteries: Alliance Model 1131, Group 31, 12V maintenance-free batteries with 1,850 CCA.
275-amp alternator.
1,300 square-inch aluminum radiator.
1,000W 115V block heater.
Cummins® 18.7 CFM air compressor.
Quick disconnect fitting with tire inflation kit.
Steel frame: 11/32" x 3-1/2" x 10-15/16".
12,000-lb. front axle.
23,000-lb. Quiet Ride rear axle.
Powder and liquid coated steel frame chassis construction.
Full coverage heavy-duty undercoating.
4.56 rear axle ratio.
Front and rear Michelin XZE2 275/80R22.5 (14-ply radial) tires.
Front and rear Alcoa 22.5 x 8.25 polished aluminum wheels (only outside rims are polished).
Aluminum cab.
Chrome grille and air intake grille.
Front fiberglass bumper cover.
Daytime running lights.
Chrome heated and remote mirrors.
Tinted door glass and operating wing windows.
Polished stainless steel cab risers.
Chassis battery shut-off switch in cab.
One valve parking brake system with warning indicator.
Momentary battery booster switch for connecting chassis and house batteries.
Driver and passenger air suspension swivel Ultra Leather seats.
7" touch screen premium sound system with AM/FM/CD/DVD/Bluetooth.
Sirius/XM Satellite Radio ready (requires activation and subscription).
GPS RV software.
Color monitor for side and rear cameras.
USB and auxiliary inputs.
CB radio with left-hand mirror-mounted antenna.
Tilt and telescoping steering column.
18" leather-wrapped steering wheel.
Woodgrain driver instrument panels.
Marker lights with separate interrupter switch.
Low air pressure light and buzzer.
Digital flush-mount alarm clock in dash.
12V accessory ports.
Electronic cruise control.
Power remote/heated mirrors.
Power locks.
Power windows for driver and passenger.
Three-point seat belts for driver and passenger.
Electronically controlled dash air conditioning.
Dual reading lights.
Two cup holders in dash.

CONSTRUCTION:
2" laminated constructed sidewalls.
Gel-coat fiberglass walls.
2-1/4" thick laminated aluminum floor.
One-piece textured radius corner domed fiberglass roof.
Front aerodynamic fiberglass cap and front transition panels.
Molded fiberglass rear cap.
R-8 insulated sidewalls, R-11 insulated roof, and R-12 insulated floor.
Four-point fully automatic hydraulic leveling jacks.
Dual-pane, dark-tinted frameless windows.
Rotational-molded, easy-clean storage compartments.
Electric slide system.

EXTERIOR:
Custom full body paint with stainless bottom package and Diamond Shield.
Roof-mounted integrated armless patio awning with LED lighting.
LED patio light and driver-side security light.
Aluminum-wrapped slide-out toppers.
Keyless pad at entry door.
Black-trimmed entry door with screen, deadbolt lock, and tinted frameless window with shade.
Lighted acrylic grab handle.
Exterior power entry step.
Exterior wall-mounted entertainment center with 32" LED TV, AM/FM/CD/DVD radio, and two speakers.
Aluminum side-hinge locking exterior storage doors with chrome handles.
Front and rear LED clearance and marker lighting.

INTERIOR:
Fold-over sleeper sofa.
Dream dinette.
Loveseat (varies by floor plan).
Front cab hardwood overhead with entertainment system and cabinets.
Ceramic tile flooring with Flex Grout.
Deluxe carpet with pad in the slide room and bedroom.
Deluxe padded ceiling.
LED flush-mount ceiling lighting.
Coordinating fabric window treatments and lambrequins with hardwood trim and crown.
MCD manual day/night roller shades.
Solid surface countertops.
Cherry hardwood cabinets with hardwood raised panels.
Hardwood raised panel passage doors.
Hardwood ceiling mirror feature with lighting.
Hidden hinge cabinet door hardware.
Full extension soft-closing drawer guides.
Lighted entry step.
Front privacy shade.
40" LED TV in the living area.
Blu-Ray® home theater system in the living area.

KITCHEN:
Residential stainless steel 16 cu. ft. double-door refrigerator with ice maker.
Recessed 3-burner LP cooktop with solid surface covers.
Convection microwave oven.
Solid surface countertops.
Tile backsplash.
Pull-out pantry.
Double-bowl sink.
Solid surface sink covers.
Upgraded single-handle faucet with pullout sprayer.
MaxxAir® power vent with rain cover.
Under-cabinet lighting.

BEDROOM AREA:
King mattress (66.5" x 75") with iCool® Sleep System (gel-infused memory foam).
Lift-up bed with under-bed storage.
Designer bedspread, pillow shams, and pillows.
Hardwood cabinet wardrobe doors with mirrors.
Hardwood nightstands with Corian® countertops.
LED reading lights.
Deluxe carpet with pad.
32" LED TV in the bedroom.
DVD player with sound bar home theater and remote in the bedroom.

BATHROOM:
Color coordinated fiberglass shower.
Shower skylight.
Glass shower door.
Metal shower head with on/off control and matching dual valve faucet.
Porcelain foot-flush toilet (floorplan specific).
Solid surface lavatory countertop and backsplash.
Undermount sink.
Residential brushed nickel faucet.
Deluxe hardwood medicine cabinet.
MaxxAir® power vent with rain cover.

UTILITIES:
Two 12V 4D AGM auxiliary batteries (198 A.H. each).
Battery disconnect.
50-amp service with power cord reel.
3,000W inverters/converters.
Onan® 8kW diesel generator with auto transfer switch.
Dual roof-mounted, ducted 15,000 BTU air conditioners with heat pumps.
Aqua-Hot® 400 LP system.
20.3-gallon LP tank.
LP quick connect.
Thermostatically controlled heating.
Interior monitor panel with LPG, tank, and battery readout.
Exterior service station with monitor panel, drain valves, and exterior shower.
Exterior GFCI receptacle.
Thetford® Sani-Con Turbo macerator system.
Power water hose reel.
Whole coach water purification system.
Exterior park cable hookup.
Black tank flush.
12V tank heaters on holding tanks.
12V 4 GPM high-capacity water pump.
Carbon monoxide, LP gas, and smoke detectors.
Fire extinguisher.
Winegard® In-Motion satellite dome.
