Specs for 2019 Heartland - Bighorn

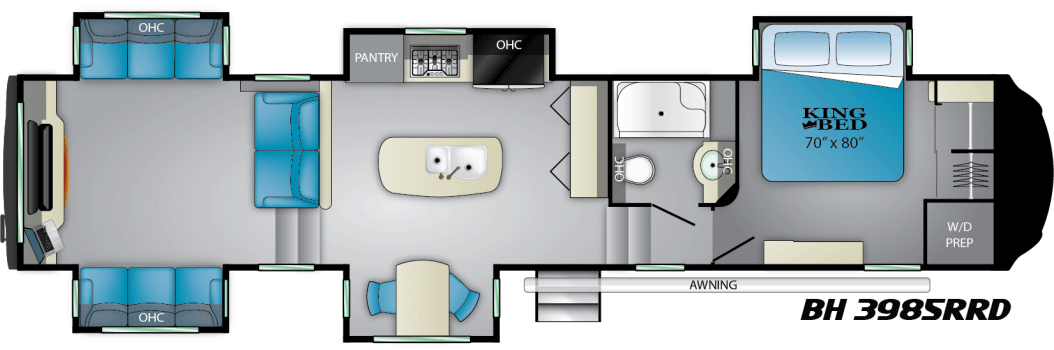

Floorplan: 3985 RRD (Fifth Wheel)

Dimensions

Weights

Capacities

2019 Heartland Bighorn RVs for Sale Near You

Exterior

Electrical

Features

TOP 10 SELLING FEATURES:
16" G Rated Tires & Wheels
Mor/Ryde Suspension
2" Receiver Hitch
Laminated Main Floor & Bath Deck
Power Cord Reel
7'6" Elite Slide Boxes
Power Theater Seating standard
55" TV Standard
Solid Surface Countertops Throughout
Tray Ceiling

HAND CRAFTED CABINETS:
Glazed hardwood Magnolia Maple cabinetry & fascia
Amish-crafted natural hardwood cabinet doors with hidden hinges and drawers
All cabinet frames are pre-drilled, and screwed together - not stapled
Baltic birch drawer construction (Real Wood)
Deluxe ball-bearing drawer guides
PATENT PENDING Front Cap and Frame Design
SPECIALLY Designed and Engineered For SHORT BED TRUCKS, allows for tighter turning radius on short bed, extended cab trucks
Truly unique aerodynamic profile
Painted front cap

EXTERIOR STANDARD FEATURES:
High gloss sidewalls
Entry door overhead light
Automotive aerodynamic styled rear cap with LED turn lights
Painted aluminum rear ladder
2" Accessory receiver

UNIVERSAL DOCKING CENTER STANDARD FEATURES:
12 volt light
Exterior shower with hot & cold water
Black tank flush system hook up
City water hook-up with high pressure fresh tank fill
Shielded RG-6 coaxial cable hook-up
Satellite hook-up (roof or tri-pod)
Holding tanks pull handles
Winterization valves

LARGEST EXTERIOR STORAGE IN ITS CLASS:
Offering over 140 cubic feet of storage!
Large insulated slam baggage doors
Unobstructed pass-through design
12V lights
1 cable outlet / 110 volt outlet

STANDARD WINDOW FEATURES:
Frameless dark tinted safety glass windows with UV inhibitor
Huge panoramic rear bay window
Huge panoramic windows in dinette
Ventilation slider side windows

TANK SIZE & LP GAS STANDARD FEATURES:
67 gallons - fresh water capacity
135 gallons waste water - 90 gal. grey / 45 gal. black
(2) 30# LP bottles with auto change over (room for (2) 40# LP bottle option

PLUMBING STANDARD FEATURES:
Color-coded Plumb-PLEX™ water lines with 10/25 year warranty
Quick and easy winterization system)

BEDROOM STANDARD FEATURES:
Built-In closet system featuring hanging clothes rods, recessed shelving
King size bed
Upgraded foam mattress
Two windows in slide for better air flow
Tall dresser with four large drawers
6´4" bedroom ceiling height throughout
Level floor between bath and bedroom
LED reading lights over bed
Storage shelves in bed slide room
Deluxe headboard design
Pillow package and comforter
Massive under bed storage
Pull-out storage drawer in steps
32" deep bedroom electric slide rooms

CONSTRUCTION STANDARD FEATURES:
Laminated fiberglass sidewalls
Double-welded aircraft quality aluminum superstructure cage construction
Drip rail with down spouts
Deluxe power exterior awning
Welded aluminum frame
Walkable roof decking
One-piece seamless EPDM rubber roof
Radius metal roof cap
Strong 12" I-beam frame with rust prohibitive coating
Hydraulic landing gear jacks (no snap pins required)
Six point auto leveling system
Seamless corrugated underbelly material
Heated and enclosed underbelly
Heated and Insulated holding tanks & gate valves
Flexfoil insulation (R-14)

3" LAMINATED FLOOR CONSTRUCTION STANDARD FEATURES:
Strong aluminum framing
Block foam insulation
3/8" seamless decking
Thermo-board luan on the bottom
R-14 laminated upper deck floor

HEATING & COOLING STANDARD FEATURES:
Seamless one piece below floor heat duct
42,000 BTU furnace
Whisper Quiet A/C system - includes dual high output 15,000 BTU A/C units
Insulated in-roof A/C duct system for maximum efficiency
Air conditioned stool room

TIRES & AXLES STANDARD FEATURES:
Heavy-duty G-rated 16" tires
Aluminum rims
Spare tire
Mor-Ryde™ suspension system by Dexter with quad shocks - for the smoothest ride around
7,000 lb. Dexter axles with Easy-Lube™ hubs (all models)
2" x 12" Nev-R-Adjust brakes by Dexter
ABS fender skirts

INTERIOR STANDARD FEATURES:
All-in-one master control panel with DSI water heater switch, tank level monitors, slide switches and light switches
"Welcome back light"
MCD roller shades - Day/Night
Metal entry handle
Custom slide out fascia
Convection oven
Programmable safe
Power Theater seating
Deluxe coffered ceiling

POWER STANDARD FEATURES:
80 Amp/12V DC power converter
50 Amp Power Coord Reel
Dual battery box (1 battery included)
110V exterior electrical receptacles
Battery disconnect

APPLIANCES & LIGHTING STANDARD FEATURES:
18 Cu.Ft stainless steel refrigerator
3-burner cook top w/oven
30" microwave oven over the range
Boutique pull out sprayer faucet in kitchen
12 gal. water heater (gas/electric DSI)

TOTAL INSULATION VALUES STANDARD FEATURES:
Walls - R11 *All formaldehyde-free insulation
Roof – R38
Slide room floors - radiant insulation R38 equivalent
Main floor - R38 • upper deck floor - R14

BATH STANDARD FEATURES:
6´4" bath/bed ceiling height
Residential resilient flooring all linoleum
Solid surface countertop with undermount sink and matching sink cover
Large mirrored medicine cabinet
Linen base cabinet storage

ENTERTAINMENT & CONNECTIONS STANDARD FEATURES:
Decorative glass door inserts
55" LED high definition TV all models
Pre-wired for Winegard Trav'ler satellite system
Residential style receiver with built-in DVD Player, FM radio and BluetoothTM

COMMODE STANDARD FEATURES:
Power roof ventilation
Dual 12V LED lights with soft lighting lenses
Porcelain commode w/foot flush

LIVING ROOM STANDARD FEATURES:
Power Theater Seating
Upgrade flip & fold sleeper sofa

KITCHEN STANDARD FEATURES:
Recessed LED lighting
Real solid surface countertops with pencil nose edge
Residential resilient flooring
Deep residential sized cabinets
Toe kicks (most models)
Residential size, stainless steel kitchen sink with matching solid surface sink covers
20" deep residential size drawers
Custom crafted dinette table and two chairs with built-in storage
Large, deep pantry
Fan with rain sensor

SHOWER STANDARD FEATURES:
1-piece fiberglass shower
Elegant glass shower surround
Domed king skylight over shower
