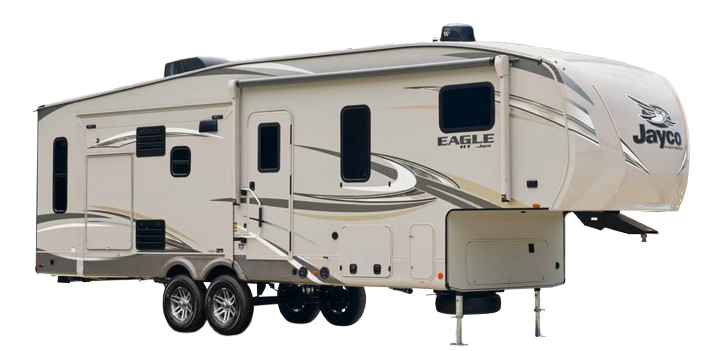

Specs for 2020 Jayco - Eagle HT

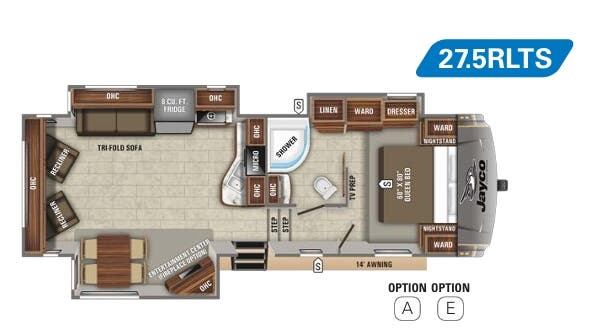

Floorplan: 27.5RLTS (Fifth Wheel)

Dimensions

Weights

Capacities

2020 Jayco Eagle HT RVs for Sale Near You

Exterior

Electrical

Features

STANDARD EXTERIOR EQUIPMENT
StrongholdVBL™ aluminum framed and vacuum bond laminated gel-coated fiberglass exterior walls
Magnum Truss™ Roof System (strongest tested roof in the industry) with one-piece, seamless DiFlex II material
Climate Shield™ zero-degree tested weather protection:
Fully enclosed and heated underbelly (ducted)
35,000 BTU output furnace
Double layer fiberglass batt insulation in ceiling and floor
Double sided radiant barrier insulation (roof, floor, cap, and slide room floors)
PEX plumbing
HELIX Cooling System™ (industry exclusive):
Exterior-mounted 15,000 BTU "Whisper Quiet" A/C unit
Jayco exclusive insulated dual duct design
Directional and closeable A/C vents
Larger return air vents with user accessible filters
JaySMART™ (Safety Markers And Reverse Travel) LED Lighting (patent-pending)
Painted fiberglass front cap with built-in specialty LED lighting
Custom automotive-grade vinyl exterior graphics package
LED exterior lighting package
Detachable Powersmart™ LED shore power cord
Dual 30 lb. propane bottles with auto regulator
Pass-through storage with Slam-latch™ baggage doors
Digital TV antenna with Wi-Fi Prep
Exterior marine-grade speakers
Fully enclosed, LED-lighted Nautilus universal docking center:
Selectable water connections
Quick connect outside shower
Black tank flush, winterization, and sanitization
Independent satellite and whole coach cable hookups
Water heater bypass
Battery disconnect
Under-mounted spare tire (Goodyear® Endurance®, Made in U.S.A.)
LP quick connect (outside grill prep)
Roof ladder
Slide topper/awning prep
"Industry's BEST" outside kitchen
Front electric landing gear


STANDARD INTERIOR EQUIPMENT
Solid hardwood slide fascia
Handcrafted and glazed doors, drawers and trim
Heavy-duty, 75 lb., full extension, steel ball-bearing drawer guides
5/8 in. tongue and groove joined plywood floor decking
Shaw® residential carpeting with R2X® stain guard (Made in U.S.A.)
Shaw® residential carpet pad with R-value and sound dampening (Made in U.S.A.)
Shaw® "Wood Plank" vinyl flooring (Made in U.S.A., standard minimal carpeting)
LED interior lighting throughout
LED dimmer switches in main room and dining area
Central command center with built-in tank monitoring
Tri-fold hide-a-bed sofa with residential sleep surface
Swivel glider recliners
Stainless steel kitchen sink
Brushed nickel kitchen faucet with pullout sprayer
Gas/electric RV refrigerator with freezer 8 cu. ft.
Dual USB charging ports (kitchen and bedroom)
Bluetooth speaker prep
12V charging station
Extra 110V power outlets in kitchen and slide rooms
Bathroom skylight
LED backlit medicine cabinet with custom framed mirror
Bathroom stone and glass tile backsplash
Blue LED nightlights (bathrooms and bunkrooms)
Porcelain foot flush toilet
Residential quilted bedspread and pillows
Gas-strutted under-bed storage
"Smart" LED Reading Lights (with blue nightlight mode)
CPAP prepped bedroom
Carbon monoxide and LP detector

CUSTOMER VALUE PACKAGE (MANDATORY)
MORryde® StepAbove™ entrance steps (main entrance) with blue LED light
15,000 BTU "Whisper Quiet" A/C
50 amp service with dual A/C ducts and second A/C prep
Electric patio awning with integrated LED lights
Quick recovery gas/electric DSI water heater (17.8 gal. per hour)
Residential Queen (60 in. x 80 in.) Serta® mattress  with under-bed storage
Custom machined aluminum rims
Rear 2 in. receiver
LED HDTV with fully digital HDMI output
12V AM/FM/CD/DVD/USB A/V system with Bluetooth® and HDMI®
Stainless steel range with glass cover
Stainless steel microwave with exhaust fan
Keyed Alike™ lock system (single key for all doors/locks)
Rooftop and ground solar prep by Go Power®
Backup camera prep (rear observation)
Hidden hinges
Rain-proof EZ Breeze™ 350CFM bathroom power vent
Upgraded friction hinge entrance door with XL grab handle
Wireless remote control system

4 STAR HANDLING PACKAGE (MANDATORY)
Goodyear® Endurance™ Tires (Made in U.S.A., Load Range 'E')
Dexter® Axles with Nev-R-Adjust® brakes and E-Z Lube® hubs
MORryde® CRE-3000™ rubberized suspension
Wet bolt fasteners, bronze bushings, and shock absorber prep
