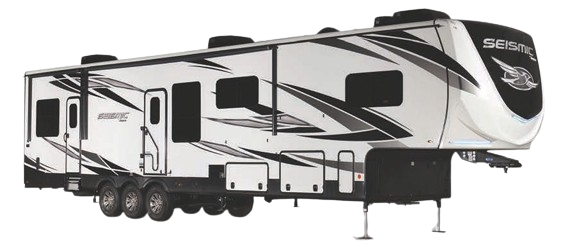

Specs for 2020 Jayco - Seismic

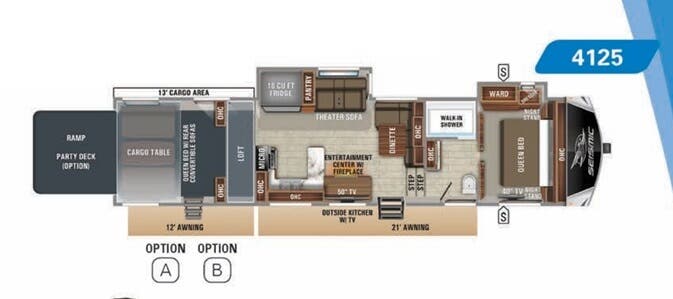

Floorplan: 4125 (Toy Hauler)

Dimensions

Weights

Capacities

2020 Jayco Seismic RVs for Sale Near You

Exterior

Electrical

Features

STANDARD EXTERIOR EQUIPMENT
Wide-body structural steel l-beam construction
Stronghold VBLTM aluminum framed and vacuum bond laminated gel-coat fiberglass exterior walls (including rear wall and slide room end walls)
Magnum TrussTM Roof System (strongest tested roof in the industry) with one-piece, seamless DiFlex II material
Climate Shield TM zero-degree tested weather protection: Fully enclosed and heated underbelly (ducted), 35,000 and 40,000 BTU output futnace, Double layer fiberglass batt insulation in ceiling and floor, Double sided radiant barrier insulation (roof, floor, cap, and slide room floors), PEX plumbing
HELIX Cooling SystemTM (industry exclusive): Exterior-mounted 15,000 BTU "Whisper Quiet" A/C unit, Jayco exclusive insulated dual duct design, Directional and closeable A/C vents, Larger return air vents with user accessible filters JaySMARTTM (Safety Markers And Reverse Travel) LED lighting (patent-pending)
Painted fiberglass front cap with built-in specialty LED lighting Custom automotive-grade vinyl exterior graphics package
LED exterior lighting package
Detachable PowersmartTM LED shore power cord
Dual 30 lb. propane bottles with auto regulator
Pass-through storage with Slam-latchTM baggage doors
Digital TV antenna with Wi-Fi prep
Exterior marine-grade speakers
Fully enclosed, LED-lit Nautilus universal docking center: Selectable water
connections, Quick connect outside shower, Black tank flush, winterization and sanitation, Independent satellite and whole coach cable hookups
Water heater bypass
Battery disconnect
Under-mounted spare tire (Goodyear® Endurance®, Made in USA)
Folding roof ladder
Slide topper/ awning prep

STANDARD INTERIOR EQUIPMENT
Solid hardwood slide fascia
Handcrafted and glazed doors, drawer and trim
Heavy-duty, 75 lb., full-extension,steel ball-bearing drawer glides 5/8 in. tongue and groove joined plywood main floor decking
ShawR residential carpeting with R2X® stain guard (Made in USA)
ShawR "Wood Plank" vinyl flooring (Made in USA, standard minimal carpeting)
LED interior lighting throughout
LED dimmer switches in main room
SuperSofa with heat, massage, and LED lighting
Stainless steel kitchen sink
Brushed nickel kitchen faucet with pullout sprayer
18 cu. ft. Norcold Polar Max 2-way refrigerator with ice maker
12V charging station
Bathroom skylight
LED backlit medicine cabinet with custom framed mirror
Bathroom stone and glass tile backsplash
Porcelain foot flush toilet
Residential quilted bedspread and pillows
Gas-strutted under-bed storage
Hardwood safety handrail on steps
Bathroom hallway window
CPAP prepped bedroom
Carbon monoxide and LP detector
LED fireplace with 5,000 BTU electric space heater

RAMP AND CARGO EQUIPMENT
Hinged spring-assist, radius-cornered ramp door, 2,500 lb. capacity, 93-3/8 in. wide openeing with anti-slip, non-skid flooring
LED high-intensity, ramp lights
Tuff-ply, rubberized garage floor liner 2 in. block-foam insulated garage floor Garage D-rings mounted to steel frame
24 in. x 72 in. garage entry door with step light
Vent ports and tinted power roof vent
Happi JacR electric-lift Queen beds/ convertible sofas with folding armrests and cup holders
Pull-down ramp door screen
Dual 30 gal. fuel tanks with timer (1 dedicated to generator)

CUSTOMER VALUE PACKAGE (MANDATORY)
MORryde® StepÅboveTM entrance steps (main entrance) with blue LED light
Equalizer Hydraulic auto-leveling system with oversized foot pad JAYCOMMANDTM "Smart RV system powered by BMPRO Drinking Water SystemTM (patent-pending)
15,000 BTU "Whisper Quiet" A/C
2nd 15,000 BTU A/C ducted in bedroom
Dual electric patio awning with integrated LED lights
10 gal. quick-recovery gas/electric DSI water heater (20 gal. per hour)
Residential Queen (60 in. x 80 in.) Serta® mattress with under-bed storage
Central vacuum system
Custom machined aluminum rims
LED HDTV with fully digital HDMI output
12V AM/FM/CD/DVD/USB A/V system with Bluetooth® and HDMI®
Stainless-steel range with glass cover
BellavatiR solid-surface kitchen countertop with bamboo sink cover and strainer
Convection microwave Integrated sound bar
32 in bedroom TV
Oversized 36 in. wide residential shower
MCDR day/night roller shades in living room
Washer/dryer prep
Keyed AlikeTM lock system
Rooftop and ground solar prep by Go Power®
Backup camera prep
Cellular prep for antenna and JAYCOMMANDTM "Smart RV" system
Tire Pressure Monitoring System
Lamilux high gloss gel-coated exterior sidewalls
Frameless dark tinted safety glass windows
5,500W OnanR micro-quiet gas generator (CARB-certified)

5-STAR HANDLING PACKAGE
Goodyear® Endurance® tires (Made in the USA, Load Range 'E')
7,000 lb. Dexter® Axles with Nev-R-AdjustR brakesand E-Z LubeR hubs
MORryde® CRE-3000TM rubberized suspension Wet bolt fasteners and bronze bushings MORryde® pin box
