Specs for 2021 Entegra Coach - Anthem

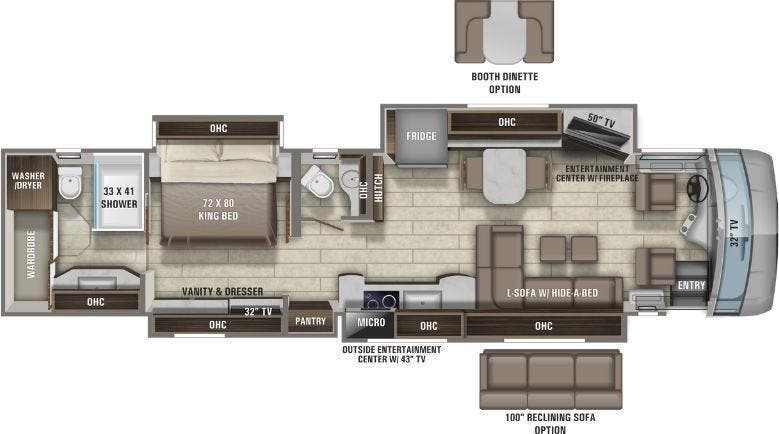

Floorplan: 44B (Diesel Pusher)

Dimensions

Weights

Capacities

2021 Entegra Coach Anthem RVs for Sale Near You

Engine/Transmission

Exterior

Electrical

Features

CHASSIS
Side-mounted, parallel-airflow radiator
170-amp alternator
1,000-watt engine block heater
Two-stage engine brake
Valid air leveling system with auxiliary air compressor
Equalizer™ hydraulic automatic coach leveling
Reyco® Granning® front axle with independent front suspension - 20,000-lb. rating
Meritor rear axle - 20,000-lb. rating
Tag axle with air dump - 12,000-lb. rating
ABS disc brakes on front axle, drum brakes on drive and tag axle
4.88 rear axle ratio
Michelin ® XZA 365/70R 22.5" tires (front) and XZA 315/80R 22.5" tires (rear)
Tire pressure monitoring system (TPMS) with temperature monitoring
Automatic traction control
Bilstein® shocks- 60mm front axle & 46mm rear/tag axles
Remote air connection
(2) 12V chassis batteries
150-gal. fuel tank (dual fill)
15-gal. DEF tank (dual fill)
55-degree wheel cut
Spartan® Safehaul tow vehicle air brake system
15,000-lb. hitch with 7/4-pin plug

CONSTRUCTION
Roof: 4" arched aluminum trusses filled with batt insulation and reflective Flexfoil® topped with 3/8" plywood decking then one-piece fiberglass
Sidewalls: 2-1/2" exterior walls with Aluma-Tru™ welded tubular aluminum studs on 16" centers or less filled with batt and Flexfoil® insulation then covered with high-gloss gelcoat fiberglass (R-16)
Floors: 2" x 4" wood trusses on 16" centers or less filled with batt and Flexfoil® insulation then topped with 3/4" 7-ply plywood decking (R-33)
X-Bridge™ bracing welded into chassis frame
Aqua-Hot ® heated basement storage on thermostat
Insulated front and rear caps (R-24)
Entegra-exclusive Relia-Torque flush-mounted 12V slideout system with VegaTouch and push button controls
Steel-reinforced front cap and windshield frame

HEAT, A/C, WATER, AND POWER
Onan® 12,500-watt diesel generator, with automatic start, on powered slide-out tray
(2) 3,000-watt pure sine wave inverters
(4) L16 AGM batteries (6V/390-amp hrs. ea.)
50-amp power cord on electric-powered reel
Premium surge protector with smart transfer switch
(3) 15,000-BTU A/C units with heat pumps and condensation drain system
Aqua-Hot® 450D hydronic water and heating system with in-floor heat throughout and engine preheat
Sani-Con® Macerator holding tank dump system with manual gate valves and manual backup
Black holding tank sprayer
City and tank water filtration system
Winterizing drain system
Trutank™ ultrasonic tank monitoring system displayed on VegaTouch screen
Water hose with electric reel

EXTERIOR
Premier Bus Armor 8" stainless-steel trim
Power rear engine door with manual override
Dual roof-mounted Girard ® Vision dual-pitched patio awnings with LED lights
Girard® power entrance door awning with LED lights
Girard® Ultra slideout awnings
Girard® Ultra window awnings
Frameless, dual-pane, tinted, safety-glass windows
Lit grab handle with keypad system for keyless entry
43" Samsung® 4K UHD Slim, Smart TV with Bose® Solo 5 sound bar on TV bracket with extend, tilt and swivel arm
Chrome, heated, remote-control, side-view mirrors with integrated cameras and blind-spot indicators
Diamond Shield™ front protective film mask
LED high/low beam headlights and fog lights
Daytime running lights
LED accent lights under passenger slideout rooms
LED marker lights, turn lights, license plate light, accent lights, & docking lights
LED-lit chrome clearance accent light
Full-width rear mudflap, with chrome "Anthem" nameplate
Winegard ® TRAV'LER satellite dish DIRECTV® - standard with USA option
Winegard® TRAV'LER satellite dish Shaw TV - standard with CSA option
Winegard® Rayzar automatic-powered TV antenna
Winegard® WiFi extender with 4G/LTE
Heated exterior utility center with 5" LED Firefly® tank monitoring panel
2.8-cu. ft. exterior Dometic® refrigerator/freezer on slideout tray
(1) power slideout basement storage trays
Power-locking baggage doors
Sikkens custom full-body paint
LED third brake light

COCKPIT
Xite™ 360° camera system
Valid 15" digital dash with selector knob and three main selection screens
Dual, glass panel 9" touchscreen in-dash infotainment center with Rand McNally™ RV navigation, Bluetooth®, SiriusXM™, AM/FM tuner, integrated camera control, house mode whole-coach audio distribution, and integrated VegaTouch coach control
E-Z Steer™ electric, adjustable power steering assist with steering angle sensor
VIP wood-grain, leather-wrapped, power-tilt and telescoping steering wheel with integrated controls for radio, cruise, wipers, and Bluetooth® phone functionality
Blind spot monitoring system displayed on digital dash screen
JBL ® premium audio 11-speaker sound system with amplifier, speakers, and DVC subwoofer
Ultra-Vision® one-piece wrap-around tinted windshield
Push-button start system
Samsung® 32" LED Slim 1080P Smart TV in front overhead
Villa® 8-way power, lumbar, heated Ultraleather® driver and passenger seats with integrated seatbelt
Powered flush stepwell cover
Power adjustable brake and accelerator pedals
Powered front sun visors and privacy shade
Wrapped dash with molded side consoles
(2) dual USB ports and (2) 12V sockets for charging

INTERIOR
10" VegaTouch touchpad system for complete integration of coach controls (mobile app available)
50" Samsung® 4K UHD Smart TV
Sony® HD Blu-Ray™ player
Bose ® SoundTouch 700 sound system
Premium Villa® Ultraleather furniture throughout
Hand-laid, high-gloss porcelain floor tiles
Premium, recessed, 12V, LED lighting
Decorative ceiling feature with integrated accent lighting
Powered solar day and black out night shades
Central vacuum system
Aire-Secure™ travel locks for all pocket doors
LED-lit fireplace with 1500W heating element
Removable screen on entry door

KITCHEN
Window with slider and screen
Whirlpool® stainless-steel residential refrigerator with ice maker and water dispenser
Induction cooktop with matching wood cover
Whirlpool® 1.9-cu. ft. convection microwave oven
24" stainless EZ clean Fisher and Paykel dishwasher
Porcelain tile backsplash
Solid-surface countertops with Blanco single bowl granite sink and dimmable LED accent lighting
Maxxair® power vent exhaust fan with intake
Large, deep drawer for waste basket with easy access trash chute
Slide-out storage tray(s) in overhead cabinet

BEDROOM
Select Comfort® Sleep Number® king-sized mattress
32" Samsung ® LED, HD Slim 1080P Smart TV
Sony® Blu-Ray™ player
Bose ® Solo 5 sound bar
Ceiling fan
Nightstands with USB ports and solid-surface tops
Large cedar-lined wardrobe with motion activated LED light

BATHROOM
Solid-surface countertops with integrated glass sink and dimmable LED accent lighting in master bath
Porcelain tile shower with skylight and clear glass shower door
Teakwood shower seat
Fixed shower head and separate hand-held spray wand
Aqua View Showermiser water saving system
Macerator toilet in main bath
Thetford® Aria china toilet in stool room
Maxxair® Deluxe power exhaust vent fan with intake
Whirlpool® stacked washer and dryer with drain pan

SAFETY
Carbon monoxide detector
Porch light and motion sensor security lights
Security system with glass shatter sensors
Smoke alarm
Safe
