Specs for 2022 Jayco - Embark

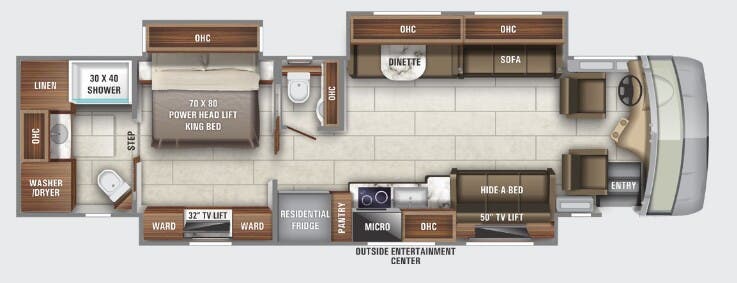

Floorplan: 39T2 (Class A)

Dimensions

Weights

Capacities

2022 Jayco Embark RVs for Sale Near You

Engine/Transmission

Exterior

Electrical

Features

CHASSIS
Spartan® K1 raised-rail chassis
Cummins® B6.7 turbocharged 360 HP engine with 800-lb. ft. torque at 1,800 RPM
Allison® 3,000 MH 6-speed transmission
Rear-mounted radiator
170-amp alternator
750-watt engine block heater
Variable geometry turbo (VGT) engine brake
Independent front air suspension (IFS) front axle - 14,320 lb.
Rear axle- 22,000 lb.
4.88 rear axle ratio
Michelin® 275/80R 22.5" tires
Bilstein® 46mm shocks
Tire pressure monitoring system (TPMS) with temperature monitoring
Equalizer™ hydraulic automatic coach leveling
Remote air connection
(2) 12V chassis batteries
100-gal. fuel tank
10-gal. DEF tank
55 degree turning radius
Spartan® Safehaul tow vehicle air brake system
10,000-lb. hitch with 7-pin plug

CONSTRUCTION
Roof: One-piece fiberglass with 3/8" plywood decking, 4" arched aluminum trusses, insulation and reflective Flexfoil® (R-24)
Sidewalls: Vacuum-bonded, high-gloss gelcoat with R-8 bead-foam insulation
Floors: Vacuum-bonded layers of Darco underbelly, a welded aluminum frame, R-9 bead-foam insulation, 3/8" Structurwood® and 1/4" plywood
X-Bridge™ bracing welded into chassis frame
Heated basement storage
Insulated front and rear caps (R-24)
Steel-reinforced front cap and windshield frame
Electric-powered slideout rooms

HEAT, A/C, POWER, AND WATER
Onan® 8,000-watt diesel generator, with automatic start, on slide-out tray
2,000-watt pure sine wave inverter with 100-amp battery charger
(2) L16 AGM batteries (6V/390-amp hrs. ea.)
50-amp power cord
Automatic transfer switch with surge protection
(3) 15,000 BTU A/C units with heat pumps
(1) 20,000 and (1) 30,000 BTU furnace
Tankless gas water heater
24.5-gal. propane tank
Sani-Con® Macerator holding tank dump system with manual gate valves, manual backup, and metal door
Black holding tank sprayer
City and tank water filtration system
Winterizing drain system

EXTERIOR
Carefree® power patio awning with LED lights
Carefree® power entrance door awning with LED lights
Carefree® slideout awnings
Carefree® window awnings
Frameless, dual-pane, tinted, safety-glass windows
Grab handle and keypad system for keyless entry
43" Samsung® 4K UHD Smart TV with tilt, swivel, and extend adjustment
JBL radio and speakers with USB port and receptacle
Heated, remote-control, side-view mirrors with integrated cameras
Diamond Shield™ front protective film mask
Halogen high/low beam headlights and fog lights
Daytime running lights
LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights
Porch light
Mudflap with chrome "Entegra" nameplate
Winegard® TRAV'LER satellite dish DIRECTV® - standard with USA option
Winegard® TRAV'LER satellite dish Shaw TV - standard with CSA option
Winegard® Rayzar Z1 TV antenna
Winegard® WiFi extender with 4G/LTE
Solar power prep
Exterior utility center
Slideout basement storage tray
Sikkens custom full-body paint

COCKPIT
Valid 12.3" digital dash with quad core graphics processor, on-board diagnostics, selector knob and ability to display traditional instrument cluster, 360° camera system or GPS navigation
Xite™ 360° HD digital camera system
Xite™ XSG4 infotainment system with 9" touchscreen, iGO navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control, and house mode whole-coach audio distribution
Steering wheel with integrated controls for cruise, wipers, radio, and Bluetooth® phone functionality
Manual tilt and telescoping steering column
Ultra-Vision® one-piece wrap-around tinted windshield
6-way power adjustable driver and passenger seats
Powered flush stepwell cover
Power adjustable brake and accelerator pedals
Powered front sun visors and privacy shades
(2) dual USB ports and (2) 12V sockets for charging

INTERIOR
JAYCOMMAND® powered by Firefly with 7" VegaTouch touchscreen for complete integration of coach controls (mobile app available)
50" Samsung® 4K UHD Smart TV
Samsung® sound bar with subwoofer
Sony® Blu-ray™ player
Premium furniture
Hand-laid porcelain tiled floors
LED interior lighting
Decorative ceiling feature with integrated accent lighting
Manual solar day shades and blackout night shades
Central vacuum system
Removable screen on entry door

KITCHEN
Window with slider and screen
Whirlpool® stainless-steel residential refrigerator with ice maker and water dispenser
Induction cooktop
1.5-cu. ft. convection microwave oven
Solid-surface countertops with stainless steel sink
Fan-Tastic power exhaust fan with intake

BEDROOM
King-size pillow-top mattress on tilt bed
32" Samsung® LED 1080P Smart TV
Sony® Blu-ray™ player

BATHROOM
Solid-surface countertops with integrated sink
One-piece fiberglass shower with skylight
Aqua View® SHOWERMI$ER™ water saving system
Thetford® Aqua Magic toilet with foot flush
Fan-Tastic power exhaust fan with intake
Whirlpool® stacked washer and dryer

SAFETY
Combination carbon monoxide detector and LP gas alarm
Smoke alarm
