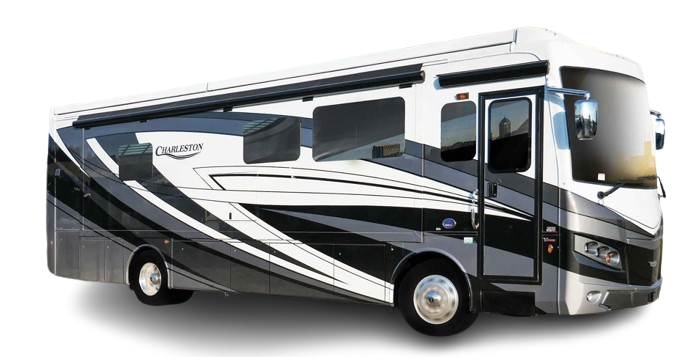

Specs for 2023 Forest River - Charleston

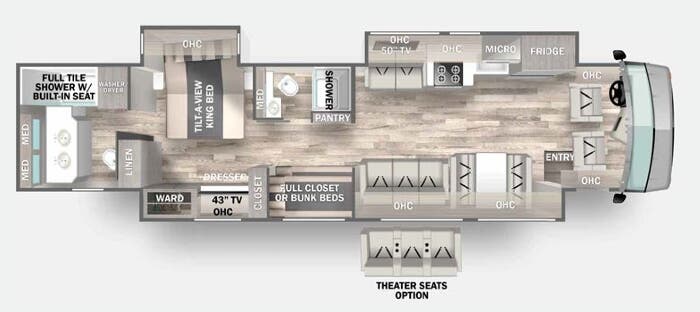

Floorplan: 45D (Class A)

Dimensions

Weights

Capacities

2023 Forest River Charleston RVs for Sale Near You

Engine/Transmission

Exterior

Electrical

Features

CHASSIS
Freightliner XCR Raised Rail Chassis
Exclusive chassis maintenance Center w/advanced wire/hose routing
Cummins ISL 450HP, 1000RPM, 2200GOV RPM, 1250 LB/FT @ 1400RPM
Allison 3000MH 6-speed transmission
120V Engine Heater 1000W
22.5" Polished Aluminum Wheels
Michelin 315/80R22.5 Front, 295/80R22.5 Rear/Tag Tires
Trailer Hitch, 15,000 # Capacity
100 gallon, locking dual fill fuel tank
Dual Side DEF Fill
Day time running lights
7-Pin tow power connector
18.7 CFM air compressor
Farr Eco-air cleaner
Air filter restriction indicator
Fuel/water separator
Brake line Air Dryer w/Heater
Automatic, heated moisture ejectors
Heavy duty-windshield wipers w/intermittent function
160 amp alternator
ABS Disc brakes w/auto slack adjuster
Two (2) 1900 CCA at 0°F, maint. free
Adjustable suspended brake pedals
Jacobs compression brake
Electronic stability control (ESC)
Automatic traction control (ATC)
Sachs custom tuned shock absorbers
Auto air suspension deflation system
Side radiator cooling package
Brake sync tow system
Push button start
Transmission oil cooler
5 year / 100,000 mile coolant (some maintenance required)
Independent front suspension (IFS) & V-ride (rear axle)
Adaptive Cruise Collision Mitigation
Ultra steer tag axle
Tire pressure Monitoring system (TPMS)

CONSTRUCTION AND EXTERIOR
Fiberglass front and rear caps
Full body exterior paint includes slideout end walls
Four (4) point fully auto hydraulic leveling system w/auto air dump
Steel basement structure
Tru-Brace Anti Camber chassis support system
Rust resistant aluminized steel chassis skirts
Diamond shield front mask protective film
1 Piece Molded Fiberglass Roof
Top-mount chrome remote mirrors w/heat, turn signal & sideview cameras
Frameless dual pane, dark tint windows
Automotive foam and Ziebart seal undercoating
Carefree power door awning
Carefree fully integrated dual pitch patio awning w/led lights & Wind Sensor
Carefree s/o topper w/covers
Full height strut assisted compt doors w/full pass through storage w/power lock
"One Key" system, ext-compartment, entry door & fuel fill doors
Quiet integrated A/C intake/ducting roof system
Crowned and layered vacuum bonded fiberglass roof
Vacuum bonded gel coated fiberglass with composite backing Sidewalls
Vacuum bonded s/o floor w/fiberglass bottom
Block foam polystyrene insulation in walls, roof and floors
30" Entryway
Heavy duty powered entry step
Channeled drains for A/Cs
Tube steel firewall w/polystyrene insulation
Lighted exterior assist handle
84" interior ceiling height
PTL steel entrance door with deadbolt
Auxiliary air chuck (front driverside compartment)
Auto LED Headlights & Marker Lights
Full length mud flap w/ chrome Charleston name
Slide tray in basement compartment

ELECTRICAL
All Electric
50A service, auto transfer w/surge protection & 34' power cord reel
EZ power cord entry
12kW Onan diesel generator w/manual slide tray
Energy management system
Electronic house power disconnect switch
Generator start/stop switch (On dash/bedroom)
Multi-plex w/Precision plex app control
Dimmer control lighting throughout
LED lighting package
Decorative bath, dinette & wall lights w/applicable
Individual bed led reading lights in overhead
2800kW pure sine inverter/converter
Auto generator start control
(6) Six volt deep cycle AGM house batteries w/tray
House Battery Distribution Center
(HBC)
Chassis & house battery bank master shut off switches
Led porch & patio lights
Easy read 12v house/Chassis load centers
Automotive chassis fuse panel (front driverside compt)
Ceiling fan in bedroom
Kitchen & living room accent lighting
175W solar panel w/MPPT Controller
Auto cargo lights

PLUMBING
Variable speed 4GPM water pump
Individual zoned hot/cold manifold water supply system
4-way water management valve in water bay compartment
Powered hose reel
Bath - solid surface under mount sink
Kitchen - Stainless steel sink
Full Tile Shower
Whole house water filter
Black water tank flush system
Kitchen single lever faucet w/ pull-out sprayer
Porcelain china bowl toilet w/foot flush
Clean-easy exterior shower hose
Convenience monitor panel in water bay door
Gallons Tank Monitoring
360 Roof vent caps
Tecma-macerator toilet

DRIVER/PASSENGER COCKPIT
One piece windshield
Power front day/night shades
Passenger & driver window day/night shades
3D Carbon fiber dash panels
Road Watch w/Mobileye collision avoidance system
Optiview glass instrument panel
Steering wheel - w/radio audio, wipers, engine brake, cruise, adjustable pedals & transmission mode control
Auto headlight system
Electronic cruise control w/ high idle
Auxiliary Fog lights
10" Dash radio w/ color back-up and side view camera pkg w/Navigation
Villa soft touch wide driver seat, swivel,recline seat w/6-Way pwr adj.
Villa passenger seat, swivel, recline & power footrest
Driver/Passenger side consoles w/cupholders
Passenger seat workstation
Driver console wireless cellphone charger
Lighted step well
Two (2) Defroster fans w/ high and low settings
Automotive dash AC/heater w/ deluxe controls
Multiple auxiliary/USB & 12V charging ports at dash
Power flushfloor stepwell cover
Multiple entry assist handles
Driver & Passenger LED ceiling map lights
Emergency/aux engine start switch at dash
Fitted Cockpit floormat w/ "Charleston" logo
Fitted entryway step carpet mats
Keyless entry w/power baggage door locks

ENTERTAINMENT
49" LED TV, living room
43" LED TV, exterior TV w/ bluetooth radio & Speakers
43" LED TV, bedroom
32" LED TV, cockpit O/H
22" LED TV, (2) each bunk w/ easy access HDMI jack
JBL Soundbar w/subwoofer
Roof mount Winegard Trav'ler satellite prep
Park/cable prep
High Definition Cat6 matrix signal distribution
Hi-Definition digital TV antennae
JBL Dash speakers tuned amplifier system
Sirius/XM satellite Ready Radio
Blu-ray DVD player
Auto WiFi extended range Falcon antennae & router

INTERIOR
Matte Finish porcelain tile throughout
Semi gloss hardwood cabinetry w/glazingy, interior doors & slideout fascia
Hardwood full overlay raised panel cabinet doors w/glazing
Auto wardrobe Lights
Hidden hinges and bar pull style cabinet hardware
Dovetailed drawer boxes
Crown trim - Living/kitchen and Bedroom room ceilings
Hardwood window valances w/accent lighted Legs
"Soft Touch" dream booth dinette (expandable/dinette-36A)
Villa Ultrafab love seat
Villa Ultrafab hide-a-bed sofa
Polished solid surface kitchen and bath countertops
Polished solid surface backsplash
Full extension soft close drawer guides throughout
Galley storage compartment for sink covers
Kitchen Pantry
Bi-fold doors, bunk beds
"Soft Touch" padded ceiling
Roller style day/night shades
Dresser drawers and wardrobe bedroom cabinetry
Power recline master bed
72"x 80" Motorized Tilt Serta king bed w/bedspread & decorative pillows
Contoured overhead cabinets in slide rooms
Bed night stands, w/dual USB jack & overhead cabinetry
Towel bar, toilet Paper holder & towel ring
Towel bar, toilet Paper holder & towel ring
LP gas, carbon monoxide & smoke
Living room ceiling feature
Electronic safe
LP gas, carbon monoxide & smoke detectors
Fire extinguisher

APPLIANCES
(3)15,000 btu A/C's (Front & Rear-w/ heat pump)
Heated holding tank compartment
Aqua Hot hydronc heat w/continuous flow hot water
Electric heated tile fl oors
30" OTR convection microwave oven
23 cf french door residential refrigerator w/ice maker
Electric induction glass cook top
Power fan in bathroom w/rain cover
Maxxair in galley w/wireless remote control w/rain cover
Stackable washer & dryer
Electric fi replace
Central vacuum system w/toe kick
Stainless steel dishwasher
