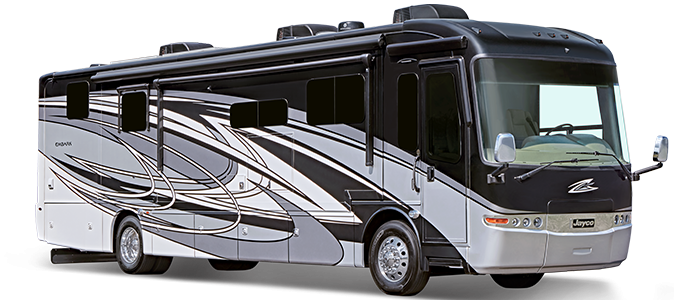

Specs for 2023 Jayco - Embark

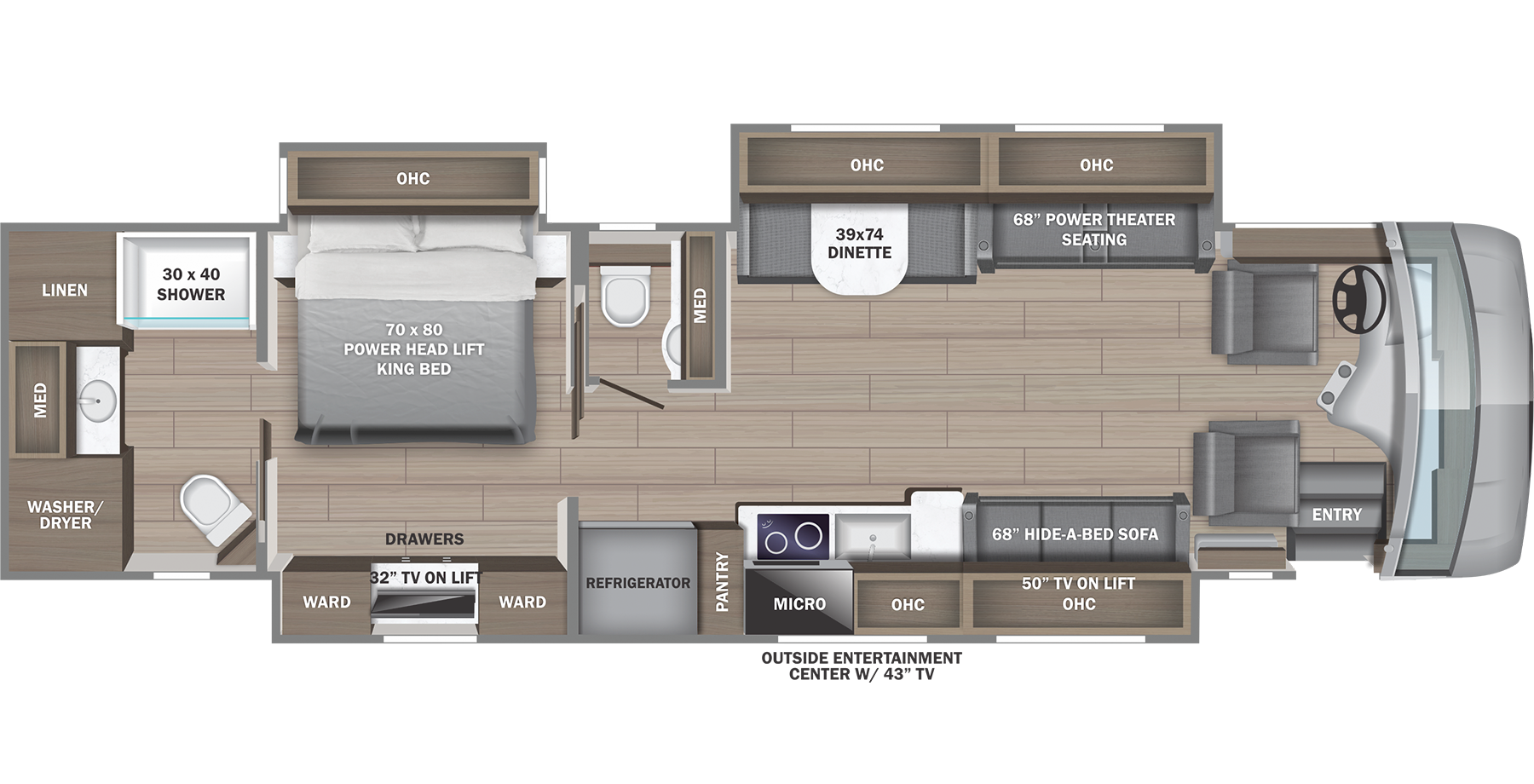

Floorplan: 39T2 (Class A)

General

Dimensions

Weights

2023 Jayco Embark RVs for Sale Near You

Capacities

Engine/Transmission

Exterior

Electrical

Features

CUSTOMER VALUE PACKAGE:
Onan® 8,000W diesel generator, with automatic start, on slide-out tray
2,000W pure sine wave inverter with 100-amp battery charger
(3) 15,000 BTU A/C units with heat pumps
Equalizer™ hydraulic automatic coach leveling
Xite™ 360° HD digital camera system
Carefree® power patio awning with LED lights
43 in. Samsung® 4K UHD Smart TV with tilt, swivel, and extend adjustment
JBL radio and speakers with USB port and receptacle
Manual solar day shades and blackout night shades


DRIVING:
Rear-mounted radiator
170-amp alternator
750W engine block heater
Variable geometry turbo (VGT) engine brake
Independent front air suspension (IFS) front axle - 14,320 lb.
Rear axle - 22,000 lb
4.88 rear axle ratio
Michelin® 275/80R 22.5 in. tires
Bilstein® 46mm shocks
Wireless tire pressure monitoring system (TPMS) with temperature monitoring
Remote air connection
(2) 12V chassis batteries
100 gal. fuel tank
10 gal. DEF tank
Spartan® Safehaul tow vehicle air brake system
10,000 lb. hitch with 7-pin plug
Valid 12.3 in. digital dash with quad core graphics processor, on-board diagnostics, selector knob, and ability to display
traditional instrument cluster, 360° camera system or GPS navigation
Xite™ XSG4 infotainment system with 9 in. touchscreen, iGO navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control, and house mode whole-coach audio distribution
Steering wheel with integrated controls for cruise, wipers, radio and
Bluetooth® phone functionality
Manual tilt and telescoping steering column
Ultra-Vision® one-piece wrap-around tinted windshield
6-way power adjustable driver and passenger seats with power recline
Powered flush stepwell cover
Powered adjustable brake and accelerator pedals
Powered front sun visors and privacy shades


EXTERIOR:
Roof: One-piece fiberglass with 3/8 in. plywood decking, 4 in. arched aluminum trusses, insulation and reflective Flexfoil® (R-24)
Sidewalls: Vacuum-bonded, high-gloss gelcoat with R-8 bead-foam insulation
Floors: Vacuum-bonded layers of Darco underbelly, a welded aluminum frame, R-9 bead-foam insulation, 3/8" Structurwood® and 1/4" plywood
X-Bridge™ bracing welded into chassis frame
Heated basement storage
Insulated front and rear caps (R-24)
Steel-reinforced front cap and windshield frame
Electric-powered slideout rooms
(2) L16 AGM batteries (6V/390-amp hrs. ea.)
50-amp power cord
Automatic transfer switch with surge protection
(2) 190W Go Power!® solar panels
(1) 20,000 and (1) 30,000 BTU furnace
Tankless gas water heater
24.5 gal. propane tank
Sani-Con® macerator holding tank dump system with manual gate valves and manual backup
Black holding tank sprayer
City and tank water filtration system
Winterizing drain system
Carefree® power entrance door awning with LED lights
Carefree® slideout awnings
Carefree® window awnings
Frameless, dual-pane, tinted, safety-glass windows
Grab handle and keypad system for keyless entry
Heated, remote-control, side-view mirrors with integrated cameras
Diamond Shield™ front protective film mask
Halogen high and low beam headlights and fog lights
Daytime running lights
LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights
Porch light
Winegard® TRAV'LER satellite dish DIRECTV® - standard with USA option
Winegard® TRAV'LER satellite dish Shaw TV - standard with CSA option
Winegard Connect 2.0 Wi-Fi/4G antenna
Exterior utility center
Slideout basement storage tray
Sikkens custom full-body paint


INTERIOR:
(2) dual USB ports and (2) 12V sockets for charging
Firefly multiplex system with 7 in. VegaTouch touchscreen for complete integration of coach controls (mobile app available)
50 in. Samsung® 4K UHD Smart TV
Samsung® sound bar with subwoofer
Sony® Blu-ray™ player
Premium furniture
Hand-laid, woodgrain porcelain tiled floors
LED interior lighting
Decorative ceiling feature with integrated accent lighting
Central vacuum system
Removable screen on entry door
Window with push-out lever operation and screen
Whirlpool® stainless-steel residential refrigerator with ice maker and water dispenser
Induction cooktop
1.5 cu. ft. convection microwave oven
Solid-surface countertops with stainless steel sink
Fan-Tastic power exhaust fan with intake
King-size pillow-top mattress on tilt bed
32 in. Samsung® LED 1080P Smart TV
Sony® Blu-ray™ player
Solid-surface countertops with integrated sink
One-piece fiberglass shower with skylight
Aqua View SHOWERMI$ER™ water saving system
Thetford® Aqua Magic toilet with foot flush
Fan-Tastic power exhaust fan with intake
Whirlpool® stacked washer and dryer
Combination carbon monoxide detector and LP gas alarm
Smoke alarm
