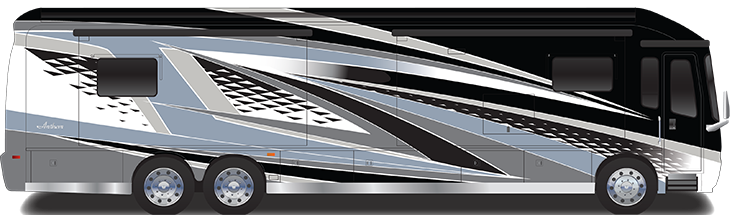

Specs for 2024 Entegra Coach - Anthem

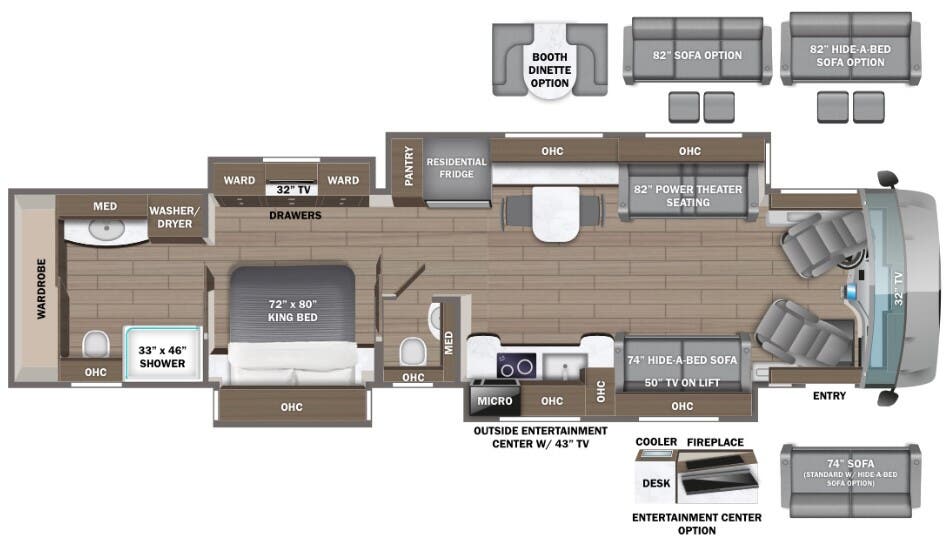

Floorplan: 44W (Diesel Pusher)

Dimensions

Weights

Capacities

2024 Entegra Coach Anthem RVs for Sale Near You

Engine/Transmission

Exterior

Electrical

Features

CHASSIS
Spartan® K2 raised-rail chassis
Cummins® L9 turbocharged 450 HP engine with 1,250 lb. ft. torque at 1,400 RPM
Allison® 3,000 MH 6-speed transmission
Side-mounted, parallel-airflow radiator
170 amp alternator
1,000W engine block heater
Three-stage engine brake
Meritor® front axle with independent front suspension, integrated anti-sway bar and custom-tuned Koni® shocks- 20,000 lb. rating
Meritor® rear axle - 20,000 lb. rating
Tag axle with one-touch manual air dump - 12,000 lb. rating
ABS disc brakes on front axle, drum brakes on drive and tag axle 4.88 rear axle ratio
Michelin® XZA 365/70R 22.5 in. tires (front) and XZA 315/80R 22.5 in. tires (rear)
Tire pressure monitoring system (TPMS) with temperature monitoring
Automatic traction control
Equalizer™ hydraulic automatic coach leveling
Valid™ Truline air leveling system with auxiliary air compressor
Remote air connection
(2) 12V chassis batteries
150 gal. fuel tank with dual fills
15 gal. DEF tank with dual fills
Spartan® Safehaul tow vehicle air brake system
15,000 lb. hitch with 7-pin plug

CONSTRUCTION
Roof: 4 in. arched aluminum trusses filled with batt insulation and reflective Flexfoil® topped with 3/8 in. plywood decking then qone-piece fiberglass
Sidewalls: 2-1/2 in. exterior walls with Aluma-Tru™ welded tubular aluminum studs on 16 in. centers or less, filled with batt and
Flexfoil® insulation, then covered with high-gloss gelcoat fiberglass (R-16)
Floors: 2 in. x 4 in. wood trusses on 16 in. centers or less filled with batt and Flexfoil® insulation then topped  with 3/4 in. 7-ply plywood decking (R-33)
X-Bridge™ bracing welded into chassis frame
Aqua-Hot® heated basement storage
Insulated front and rear caps (R-24)
Entegra-exclusive Relia-Torque flush-mounted 12V slideout system

HEAT, A/C, WATER, AND POWER
Onan® 10,000W diesel generator, with automatic start, on powered slide-out tray
3,000W pure sine wave inverter
(4) L16 AGM batteries (6V/390 amp hrs. ea.)
(2) 200W solar panels
50 amp power cord on electric powered reel
Smart automatic transfer switch with surge protection
Bergstrom dual-zone HVAC system
(3) 15,000 BTU A/C units with heat pumps and condensation drain system
Aqua-Hot® 450D hydronic water and heating system with in-floor heat throughout and engine preheat
Sani-Con® macerator holding tank dump system with manual gate valves and manual backup
Black tank flush
Grey tank flush
Tilt tank dump
City and tank water filtration system
Hot and cold water hook-up in front cap area with 30 ft. quick-disconnect hose
Water hose with electric reel

EXTERIOR
Premier Bus Armor 8 in. stainless steel trim
Power rear engine door with manual override
Dual roof-mounted Girard® Vision dual-pitched patio awnings with LED lights
Girard® power entrance door awning with LED lights
Girard® Ultra slideout awnings
Girard® Ultra power window awnings
Frameless, dual-pane, tinted, safety-glass windows
Lit grab handle with doorbell and keypad system for keyless entry
43 in. Samsung® QLED 4K UHD Smart TV with tilt, swivel, and extend adjustment
JBL® radio and speakers with USB port and receptacle
Chrome, heated, remote-control, side-view mirrors with blind-spot indicators
Diamond Shield™ front protective film mask
Automatic LED high and low beam headlights
Halogen fog lights
Automatic daytime running lights
LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights
LED accent lights under all slideout rooms
LED-lit chrome clearance accent light
Porch light and motion sensor security lights
Mudflap with chrome "Entegra" nameplate
Starlink satellite internet system
Winegard® TRAV'LER satellite dish DIRECTV® - standard with USA option
Winegard® TRAV'LER Pro satellite dish Shaw TV - standard with CSA option
Winegard® Rayzar Automatic powered TV antenna
Winegard® WiFiRanger™ Wi-Fi extender
Heated exterior utility center with 5 in. LED SeeLeveL™ tank monitoring panel
(2) power slideout basement storage trays
2.8 cu. ft. exterior refrigerator/freezer on slideout tray
Push-button, power-unlatching baggage doors with LED indicator light
Sikkens custom full-body paint

COCKPIT
Valid™ 15 in. digital dash with quad core graphics processor, on-board diagnostics and ability to display traditional instrument cluster, 360° camera system or GPS navigation
Delta Mobile Systems® aiDARS™ 1X active 360° surround view system with 14 smart radar sensors and 6 HD cameras displayed on digital dash screen
Valid™ infotainment system with 15 in. touchscreen, Sygic navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control, house mode whole-coach audio distribution and integrated VegaTouch coach control
4.3 in. infotainment control touchscreen in passenger console
E-Z Steer™ adjustable power steering assist
Steering wheel with integrated controls for screen selection, instrument cluster navigation, media source slection, cruise, wipers and Bluetooth® phone functionality
Power tilt and telescoping steering column
JBL® premium audio 11-speaker sound system with amplifier, speakers and DVC subwoofer
All-in-one automotive antenna for AM/FM/Sirius/GPS dash radio system
Ultra-Vision® one-piece wrap-around tinted windshield
Rain-sensing windshield wipers
32 in. Samsung® QLED 4K UHD Smart TV in front overhead
Heated leather driver and passenger seats with powered 6-way adjustment, lumbar, recline and footrest functions
Powered flush stepwell cover
Powered adjustable brake and accelerator pedals
Powered front sun visors and privacy shades
Dual USB port and one 12V socket for charging

INTERIOR
Firefly multiplex system with 10 in. VegaTouch touchscreen, for complete integration of coach controls, with remote monitoring and control (mobile app available)
Spyder 3.5 in. touchscreen switches throughout
50 in. Samsung® QLED 4K UHD Smart TV
Bose® sound bar with subwoofer and universal remote control
Sony® Blu-ray™ player
Premium leather Crown Compass furniture
Hand-laid porcelain tiled floors
LED interior lighting
Decorative ceiling feature with integrated accent lighting
Powered solar day and blackout night shades
Central vacuum system
Aire-Secure™ travel locks for all pocket doors
Removable screen on entry door

KITCHEN
Window with push out lever operation and screen
Stainless steel residential refrigerator with ice maker and water dispenser
Induction cooktop with matching wood cover
1.9 cu. ft. convection microwave oven
Fisher & Paykel dishwasher
Solid-surface countertops with Blanco single-bowl granite sink and dimmable LED accent lighting
Filtered water dispenser at kitchen sink
Maxxair® power vent exhaust fan with intake and touch screen control
Large, deep drawer for waste basket
Pantry with pull-out shelves
Slide-out storage tray(s) in overhead cabinet

BEDROOM
Select Comfort® Sleep Number® king-size mattress
32 in. Samsung® LED 4K UHD Smart TV
Bose® sound bar with universal remote control
Sony® Blu-ray™ player
Ceiling fan
Nightstands with solid-surface tops
Large cedar-lined wardrobe
Automatic light in rear closet

BATHROOM
Solid-surface countertops with integrated sink and dimmable LED accent lighting
Porcelain tile shower with skylight and clear glass shower door
Teakwood shower seat
Fixed shower head and separate hand-held spray wand
Aqua View SHOWERMI$ER™ water saving system
Thetford® macerator toilet in main bath
Thetford® macerator toilet in mid bath
Maxxair® Deluxe power exhaust vent fan with intake
Separate washer and dryer

SAFETY
Carbon monoxide detector
Smoke alarm
Storage safe
