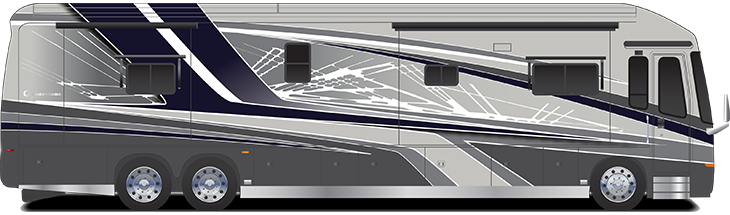

Specs for 2024 Entegra Coach - Cornerstone

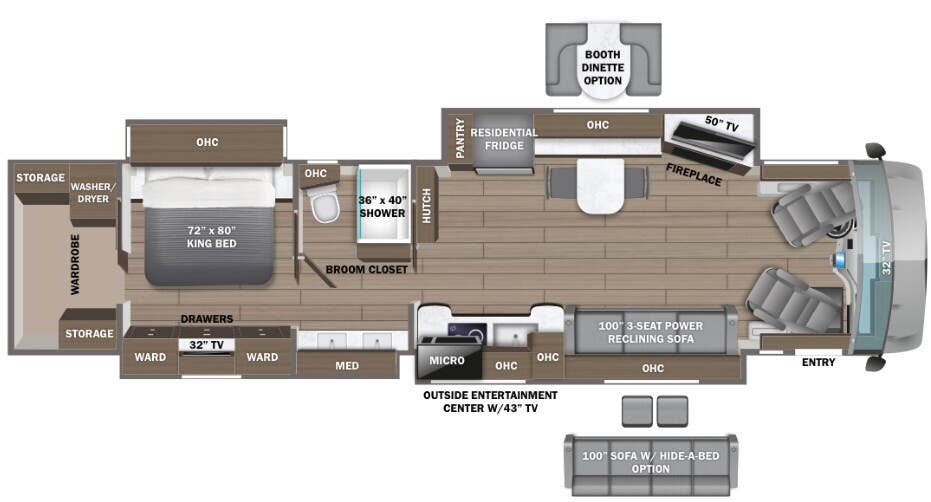

Floorplan: 45Z (Diesel Pusher)

Dimensions

Weights

Capacities

2024 Entegra Coach Cornerstone RVs for Sale Near You

Engine/Transmission

Exterior

Electrical

Features

CHASSIS
 Spartan® K3 raised-rail chassis
 Cummins® 15 liter X15 turbocharged 605 HP engine with
 1,950 lb. ft. torque at 1,150 RPM
 Allison® 4,000 MH 6-speed transmission
 Side-mounted, parallel-airflow radiator
 210 amp alternator
 1,500W engine block heater
 Three-stage engine brake
 Collision avoidance system with collision warning, adaptive cruise control and electronic stability control
Meritor® front axle with independent front suspension, integrated anti-sway bar and custom-tuned Koni® shocks- 20,000 lb. rating
 Dana® rear axle - 20,000 lb. rating
Reyco® Granning® passive-steer tag axle with one-touch manual air dump - 14,000 lb. rating
All-wheel ABS disc brakes
 4.30 rear axle ratio
Michelin® 365/70R 22.5 in. tires (front) and 315/80R 22.5 in. tires (rear)
 Tire pressure monitoring system (TPMS) with temperature monitoring
 Automatic traction control
 Equalizer™ hydraulic automatic coach leveling
 Valid™ Truline air leveling system with auxiliary air compressor
 Remote air connection
 (2) 12V chassis batteries
 150 gal. fuel tank with dual fills
 15 gal. DEF tank with dual fills
 Spartan® Safehaul tow vehicle air brake system
20,000 lb. hitch with 7-pin plug

CONSTRUCTION
 Roof: 4 in. arched aluminum trusses filled with batt insulation and reflective Flexfoil® topped with 3/8 in. plywood decking then one-piece fiberglass
 Sidewalls: 2-1/2 in. exterior walls with Aluma-Tru™ welded tubular aluminum studs on 16 in. centers or less, filled with batt and
Flexfoil® insulation, then covered with high-gloss gelcoat fiberglass (R-16)
 Floors: 2 in. x 4 in. wood trusses on 16 in. centers or less filled with batt and Flexfoil® insulation then topped with 3/4 in. 7-ply plywood decking (R-33)
 X-Bridge™ bracing welded into chassis frame
Aqua-Hot® heated basement storage
 Insulated front and rear caps (R-24)
 Entegra-exclusive Relia-Torque flush-mounted 12V slideout system

HEAT, A/C, WATER, AND POWER
Onan® 12,500W diesel generator, with automatic start, on powered slide-out tray
 3,000W pure sine wave inverter
 (4) L16 AGM batteries (6V/390 amp hrs. ea.)
 (2) 200W solar panels
50 amp power cord on electric powered reel
Smart automatic transfer switch with surge protection
 Bergstrom dual-zone HVAC system
 (3) 15,000 BTU A/C units with heat pumps and condensation drain system
 Aqua-Hot® 450D hydronic water and heating system with in-floor heat throughout and engine preheat
LED-lit fireplace with 5,000 BTU heating element
Sani-Con® macerator holding tank dump system with power gate valves and manual backup
 Black tank flush
 Grey tank flush
 Tilt tank dump
 City and tank water filtration system
 Hot and cold water hook-up in front cap area with 30 ft.
 quick-disconnect hose
 Water hose with electric reel

EXTERIOR
Executive Bus Armor 10 in stainless steel trim
 Power rear engine door with manual override
 Dual roof-mounted Girard® Vision dual-pitched patio awnings with LED lights
Girard® power entrance door awning with LED lights
Girard® Ultra slideout awnings
 Girard® Ultra power window awnings
 Frameless, dual-pane, tinted, safety-glass windows
 Lit grab handle with doorbell and keypad system for keyless entry
43 in. Samsung® QLED 4K UHD Smart TV with tilt, swivel, and extend adjustment
 JBL® radio and speakers with USB port and receptacle
 Chrome, heated, remote-control, side-view mirrors with blind-spot indicators
 Diamond Shield™ front protective film mask
 Automatic LED high and low beam headlights
Halogen fog lights
 Automatic daytime running lights
 LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights
 LED accent lights under all slideout rooms
 LED-lit chrome clearance accent light
 Porch light and motion sensor security lights
Mudflap with chrome "Entegra" nameplate
 Starlink satellite internet system
 Winegard® TRAV'LER satellite dish DIRECTV®  - standard with USA option
 Winegard® TRAV'LER Pro satellite dish Shaw TV  - standard with CSA option
 Winegard® Rayzar Automatic powered TV antenna
Winegard® WiFiRanger™ Wi-Fi extender
Heated exterior utility center with 5 in. LED Firefly® tank monitoring panel
 (2) power slideout basement storage trays
2.8 cu. ft. exterior refrigerator/freezer on slideout tray
 Push-button, power-unlatching baggage doors with LED indicator light
 Sikkens custom full-body paint

COCKPIT
Valid™ 15 in. digital dash with quad core graphics processor, on-board diagnostics and ability to display traditional instrument
 cluster, 360° camera system or GPS navigation
 Delta Mobile Systems® aiDARS™ 1X active 360° surround view system with 14 smart radar sensors and 6 HD cameras displayed on digital dash screen
 Valid™ infotainment system with 15 in. touchscreen, Sygic navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control, house mode whole-coach audio distribution and integrated VegaTouch coach control
 4.3 in. infotainment control touchscreen in passenger console
E-Z Steer™ adjustable power steering assist
 Steering wheel with integrated controls for screen selection, instrument cluster navigation, media source slection, cruise, wipers  and Bluetooth® phone functionality
 Power tilt and telescoping steering column
 JBL® premium audio 11-speaker sound system with amplifier, speakers and DVC subwoofer
 All-in-one automotive antenna for AM/FM/Sirius/GPS dash radio system
Ultra-Vision® one-piece wrap-around tinted windshield
 Rain-sensing windshield wipers
 32 in. Samsung® QLED 4K UHD Smart TV in front overhead
 Heated and cooled leather driver and passenger seats with powered
6-way adjustment, lumbar, recline, footrest and massage functions
 Powered driver's window
 Powered flush stepwell cover
 Powered adjustable brake and accelerator pedals
 Powered front sun visors and privacy shades
 Dual USB port and one 12V socket for charging

INTERIOR
Firefly multiplex system with 10 in. VegaTouch touchscreen for complete integration of coach controls, with remote monitoring  and control (mobile app available)
 Spyder 3.5 in. touchscreen switches throughout
 50 in. Samsung® QLED 4K UHD Smart TV
 Bose® sound bar with subwoofer and universal remote control
 Sony® Blu-ray™ player
 Premium leather Crown Compass furniture
 Hand-laid porcelain tiled floors
 LED interior lighting
 Decorative ceiling feature with integrated accent lighting
 Powered solar day and blackout night shades
 Central vacuum system
 Aire-Secure™ travel locks for all pocket doors
 Removable screen on entry door
 Bar area with beverage chiller and rain glass upper cabinet door with LED accent lighting (45R only)

KITCHEN
Window with push out lever operation and  screen
 Stainless steel residential refrigerator with ice maker and water dispenser
Induction cooktop with matching wood cover
 1.9 cu. ft. convection microwave oven
Fisher & Paykel dishwasher
 Solid-surface countertops with Blanco single-bowl granite sink and dimmable LED accent lighting
 Filtered water dispenser at kitchen sink
 Maxxair® power vent exhaust fan with intake and touch screen control
 Large, deep drawer for waste basket with easy access trash chute
 Pantry with pull-out shelves
 Slide-out storage tray(s) in overhead cabinet

BEDROOM
 Select Comfort® Sleep Number® king-size mattress
 32 in. Samsung® LED 4K UHD Smart TV
 Bose® sound bar with universal remote control
 Sony® Blu-ray™ player
Ceiling fan
 Nightstands with solid-surface tops
Large cedar-lined wardrobe
 Automatic light in rear closet


BATHROOM
Solid-surface countertops with integrated glass sink and dimmable
LED accent lighting
 Porcelain tile shower walls and floor with skylight and frameless glass shower door
 Teakwood shower seat
Pivoting shower head and separate hand-held spray wand
 Aqua View SHOWERMI$ER™ water saving system
 Thetford® macerator toilet in main bath
Thetford® macerator toilet in mid bath
 Maxxair® Deluxe power exhaust vent fan with intake
 Separate washer and dryer


SAFETY
 Carbon monoxide detector
 Smoke alarm
 Storage safe
