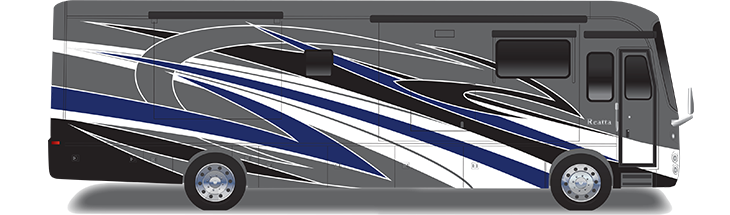

Specs for 2024 Entegra Coach - Reatta
Floorplan: 39BH (Diesel Pusher)

Dimensions

Weights

Capacities

2024 Entegra Coach Reatta RVs for Sale Near You

Engine/Transmission

Exterior

Electrical

Features

CHASSIS
Spartan® K1 raised-rail chassis
Cummins® B6.7 turbocharged 360 HP engine with 800 lb.-ft. torque at 1,800 RPM
Allison® 3,000 MH 6-speed transmission
Rear-mounted radiator
170 amp alternator
750W engine block heater
Variable geometry turbo (VGT) engine brake
Independent front air suspension (IFS) front axle - 14,320 lb.
Rear axle - 20,000 lb.
4.88 rear axle ratio
Michelin® 275/80R 22.5 in. tires
Bilstein® 46mm shocks
Wireless tire pressure monitoring system (TPMS) with temperature monitoring
Equalizer™ hydraulic automatic coach leveling
Remote air connection
(2) 12V chassis batteries
100 gal. fuel tank
10 gal. DEF tank
Spartan® Safehaul tow vehicle air brake system
10,000 lb. hitch with 7-pin plug

CONSTRUCTION
Roof: One-piece fiberglass with 3/8 in. plywood decking,
4 in. arched aluminum trusses, insulation and reflective
Flexfoil® (R-24)
Sidewalls: Vacuum-bonded, high-gloss gelcoat with R-8 bead-foam insulation
Floors: Vacuum-bonded layers of Darco underbelly, a welded aluminum frame, R-9 bead-foam insulation,
3/8 in. Structurwood® and 1/4 in. plywood
X-Bridge™ bracing welded into chassis frame
Heated basement storage
Insulated front and rear caps (R-24)
Electric-powered slideout rooms

HEAT, A/C, WATER, AND POWER
Onan® 8,000W diesel generator, with automatic start, on slide-out tray
2,000W pure sine wave inverter with 100 amp battery charger
(2) L16 AGM batteries (6V/390 amp hrs. ea.)
50 amp power cord
Automatic transfer switch with surge protection
(2) 200W Go Power!® solar panels
(3) 15,000 BTU A/C units with heat pumps
(1) 20,000 and (1) 30,000 BTU furnace
Tankless gas water heater
24.5 gal. propane tank
Sani-Con® macerator holding tank dump system with manual gate valves and manual backup
Black tank flush
Grey tank flush
City and tank water filtration system
Hot and cold water hook-up in front cap area with 30 ft. quick-disconnect hose

EXTERIOR
Carefree® power patio awning with LED lights
Carefree® power entrance door awning with LED lights
Carefree® slideout awnings
Carefree® window awnings
Frameless, dual-pane, tinted, safety-glass windows
Grab handle and keypad system for keyless entry
43 in. Samsung® 4K UHD Smart TV with tilt, swivel, and extend adjustment
JBL® radio and speakers with USB port and receptacle
LED accent lights under all slideout rooms
Heated, remote-control, side-view mirrors with integrated cameras
Diamond Shield™ front protective film mask
LED high and low beam headlights
Halogen fog lights
Automatic daytime running lights
LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights
Porch light
Mudflap with chrome "Entegra" nameplate
Winegard® TRAV'LER satellite dish DIRECTV® - standard with USA option
Winegard® TRAV'LER Pro satellite dish Shaw TV - standard with CSA option
Winegard Connect 2.0 Wi-Fi/4G antenna
Exterior utility center
Slideout basement storage tray
Sikkens custom full-body paint

COCKPIT
Valid™ 15 in. digital dash with quad core graphics processor, on-board diagnostics, selector knob and ability to display traditional instrument cluster, 360° camera system or GPS navigation
Xite™ 360° HD digital camera system
Xite™ XSG4 infotainment system with 9 in. touchscreen,
iGO navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control and house mode whole-coach audio distribution
Leather-wrapped steering wheel with integrated controls for cruise, rain-sensing wipers, radio and Bluetooth® phone functionality
Manual tilt and telescoping steering column
Ultra-Vision® one-piece wrap-around tinted windshield
Rain-sensing windshield wipers
6-way power adjustable driver and passenger seats with power recline
Powered flush stepwell cover
Powered adjustable brake and accelerator pedals
Powered front sun visors and privacy shades

INTERIOR
Firefly multiplex system with 7 in. VegaTouch touchscreen for complete integration of coach controls (mobile app available)
50 in. Samsung® 4K UHD Smart TV
Samsung® sound bar with subwoofer
Sony® Blu-ray™ player
Premium furniture
Hand-laid, woodgrain porcelain tiled floors
LED interior lighting
Decorative ceiling feature with integrated accent lighting
Manual solar day shades and blackout night shades
Central vacuum system
Removable screen on entry door

KITCHEN
Window with push-out lever operation and screen
Stainless steel residential refrigerator with ice maker and water dispenser
Induction cooktop
1.5 cu. ft. convection microwave oven
Solid-surface countertops with stainless steel sink
Filtered water dispenser at kitchen sink
Fan-Tastic power exhaust fan with intake

BEDROOM
King-size pillow-top mattress on tilt bed
32 in. Samsung® LED 1080P Smart TV
Sony® Blu-ray™ player

BATHROOM
Solid-surface countertops with integrated sink
One-piece fiberglass shower with skylight
Aqua View SHOWERMI$ER™ water saving system
Thetford® Aqua Magic toilet with foot flush
Fan-Tastic power exhaust fan with intake
Separate washer and dryer

SAFETY
Combination carbon monoxide detector and LP gas alarm
Smoke alarm
