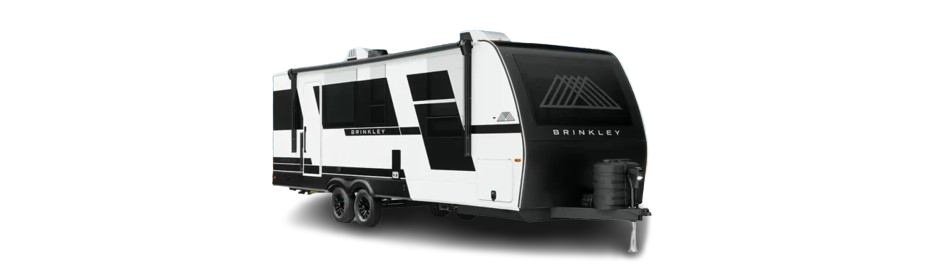

Specs for 2025 Brinkley RV - Model I
Floorplan: 275 (Travel Trailer)

General

Dimensions

Weights

2025 Brinkley RV Model I RVs for Sale Near You

Capacities

Exterior

Electrical

Features

Chassis & Suspension
Drop Frame Chassis (Brinkley Spec & Certified)
Road Defense Triple Powder Coated Chassis
Premium Hankook Vantra 225/75 Load Range E 10-Ply Tires
15" Custom Aluminum Luxury Wheels
Galvanized Wheel Well Shields for Road Debris
Anti-Lock Braking System (ABS) w/ Anti-Sway & Dynamic Brake Boost
Banded Tire Pressure Monitoring System (TPMS) w/ Wireless Display
Power Tongue Jack w/ LED Illumination
4-Point Power Stabilizer Jack System
High-Performance Road Armor™ Suspension Equalizer System
Heavy Duty 5,100 lbs. Axles
Reinforced Axle Hangers
Demco EZ Latch Trailer Coupler
Upgraded 6' Coiled Breakaway Safety Cable
LED Underbody Ground Lighting
2" Rear Cargo Receiver Hitch (300 lbs. Capacity)


Exterior & Storage
Seamless Laminated Aluminum Exterior
Euramax StrongLite Laminated Aluminum
Automotive-Grade Paint
UV Protected for a Lasting Finish
Square Euro Frameless Windows w/ Up To 6" Openings (Industry 1st)
Sleek & Clean Styling w/ Automotive-Grade Exterior Graphics
Front Dotless COB Neon LED Docking Lights
76"x45" Picture Perfect Front Window w/ Insulated Privacy Shade
Exterior Rockford Fosgate Speakers w/ In-Frame Mounted Weather-Proof Enclosures
Electric Awning w/ LED Lighting
Slide-Out Topper Ready
Backup/Security Furrion Camera Prep
Winegard Air 360+ TV & FM Antenna w/ Wi-Fi Booster (Gateway Ready)
Front Pass-Through Storage Compartment:
Full-Width LED Strip Lighting
2x Power Outlets
Forced-Air Heated & Insulated
Tough-Ply Floor (Gray)
Thick Bulkhead Walls (Designed For Mounting & Securing Items)
Pet & Property Security Campside Tie-Down
Slam Latch Baggage Doors
Exterior Ladder w/ Secure Transition
Exterior Camp-Side Outlets
Extended Front Rock Guard Protective Shield
TuffCoat Protective Epoxy (Front Cap)
Deluxe Entrance Package:
28"x72" Entry Door
Extended Entry Latch
Screen Shot Automatic Screen Door Closer
Solid Entry Steps
44" Telescoping Entry Handrail (Extends to Bottom Step)

Solar, Electrical & HVAC
200 Watt Solar Panel (600 Watt Ready)
30 Amp Victron MPPT Solar Controller (600W Solar & Lithium Ready)
18k BTU Furrion Chill Cube Air Variable Speed Conditioner (Main) SO Hot Feature Icon Round
8k BTU Furrion Chill Air Conditioner (Bedroom)
Brinkley Smart-Command™ Center w/ App Control
Thermaflex® No Kink No Tear Heat Ducts
Travel, Storage, & Solar Mode Battery Disconnects
Pre-Engineered & Assembled Wiring Harnesses, Loomed, Labeled, & Color Coded for Easy Serviceability (Segment-First)
35k BTU High-Capacity Furnace
50-Amp Electric Service
Detachable 50-Amp Power Cord w/ Angled Connector


Plumbing & LP
Brass Plumbing Fittings (Industry First)
Water Shutoff Valve on ALL Fixtures
Thermofoil Insulated & Heated Holding Tanks w/ Steel Cross Supports
Extended Waste Hose Carrier Storage Tube
Clear "No Surprises" Sewer Cap w/ Lanyard
Brinkley On-Command™ Docking & Utility Center
65' Retractable City Water Hose
2x 90-Degree Brass Elbows for Docking Station Water Hoses
EZ Winterization Valve in Utility Center
2x Hot/Cold Exterior Spray Ports (Campside & Off-Campside)
Tankless On-Demand Water Heater
Dual 30-Gallon LP/Propane Tanks w/ Cover
LP-IQ Propane Gauge
Exterior LP Quick Connect


Interior & Living Spaces
Brinkley CraftSense™ Wood Trim Construction
Flush Floor Stepless Slide-Out
72.5" Slide Out Height
Window Integrated Blackout Shades w/ Reflective Insulation + Full Bug Screens
Dimmable Living Room Lights
Premium Rockford Fosgate Sound System w/ Bluetooth & Physical Controls
62" Wall Hugger Theater Seating w/ 2 Recliners
Well-Placed Outlets w/ USB & USB-C High-Speed Charging Stations
Fireplace w/ Electric Heat
Wall Coat Hooks
Pet-Friendly Package:
Ductless Floors
100% Carpet Free
Exterior Pet & Property Security Tie-Down

Kitchen & Dining
Premium Residential Drawers w/ Dovetail Joints
Residential Solid Surface Kitchen Countertop
Pull-Out Dining Table w/ Utensil + 2x Drawers (2 Positions, Seats up to 4)
2x Folding Chairs
Pull-Out Trash Bin w/ Utility Storage
Stow 'n Go Paper Towel Caddy
Magnetic Cabinet & Drawer Catches
Dishwasher Prep
Large Pantry w/ Pull-Out Drawers & Appliance Outlet
12 cu.ft. Energy Efficient 12-Volt Refrigerator
3-Burner Stovetop
Residential 30" Convection Microwave
Farmhouse Stainless Steel Sink w/ Tuff Coat & Roller Cover
Maxxair Fan w/ Rain Sensor

Bathroom
Marine Grade Dotless COB Neon LED Shower Lighting
Space Saving Bathroom Pocket Door
Lighted Bathroom Mirror
Oversized Stainless Steel Sink w/ Tuff Coat
Glass Sliding Shower Door
One-piece 42"x30" Molded Fiberglass Shower w/ Built-In Seat
Residential Shower System w/ Head & Handheld Sprayers
Overhead Shower Cove
Porcelain Toilet
Maxxair Fan w/ Rain Sensor


Bedroom
Dimmable Bedroom Lights SO Hot Feature Icon Round
King Bed w/ Residential 7" Memory Foam Bamboo Mattress (66"x80")
Dual Bedside Nightstands w/ Deep Storage & Outlets w/ USB & USB-C Charing Ports (CPAP Ready)
Matching Comforter & 3 Pillow Package
MaxSpace Split-Level Wardrobe™ w/ Hanging Closet, Shelves, & Hamper
Dual Reading Sconce Lights
Floor-to-Ceiling Wardrobe w/ Clothing Rod & Drawers
TV Prep (Bedroom)
3x Wall Coat Hooks

Construction & Warranty
Designed For Full-Time RVing ? Warrantied for Full-Time RVing
1-Year Transferrable Limited Base Warranty
3-Year Limited Structural Warranty
3-Year Limited Internal Seals & Gasket Warranty
Brinkley Automotive Exterior Seals Package!
Low-Maintenance Roof (Industry First)
20-Year Roof Membrane Warranty & 25-Year Seal Warranty
5-Year Limited w/ 1-Year No Questions Tire Warranty
Complimentary 24/7 Roadside Assistance (12 Months)
Developed by Campers with Customer Feedback
Basement Utility Access w/ Removable Sliding Doors & Motion Activated Lights
Automotive-Style Riveted Wheel Skirts & Panels
Euramax StrongLite Laminated Aluminum Exterior Walls w/ Azdel Composite w/ 3-Year Warranty Covering Color & Gloss Retention
Reinforced & Walkable Slide Roofs
Thermaflex® No Kink No Tear Heat Ducts
Pre-Engineered & Assembled Wiring Harnesses, Loomed, Labeled, & Color Coded for Easy Serviceability (Segment-First)
Water Shutoff Valve on ALL Fixtures
Brass Plumbing Fittings (Segment First)
Industry Best Insulation Package:
R40 Roof, R9 Walls, R40 Floor Insulation
Double Insulated Roof, Front Cap, & Main Floor
Heated & Enclosed Underbelly (Circulated Forced Air)
Insulated Slide-Out Floors
Every Coach Every Time - Industry Leading Pre-Delivery Tests & Inspection Process:
Industry Leading 350+ Point Inspection & Testing Process
Off-Road Simulation Tested (Industries Exclusive) SO Info Icon
Complete Unit Pressure Test (Seals, Gaskets, Slide-Out, Etc.)
