Specs for 2025 DRV - Mobile Suites

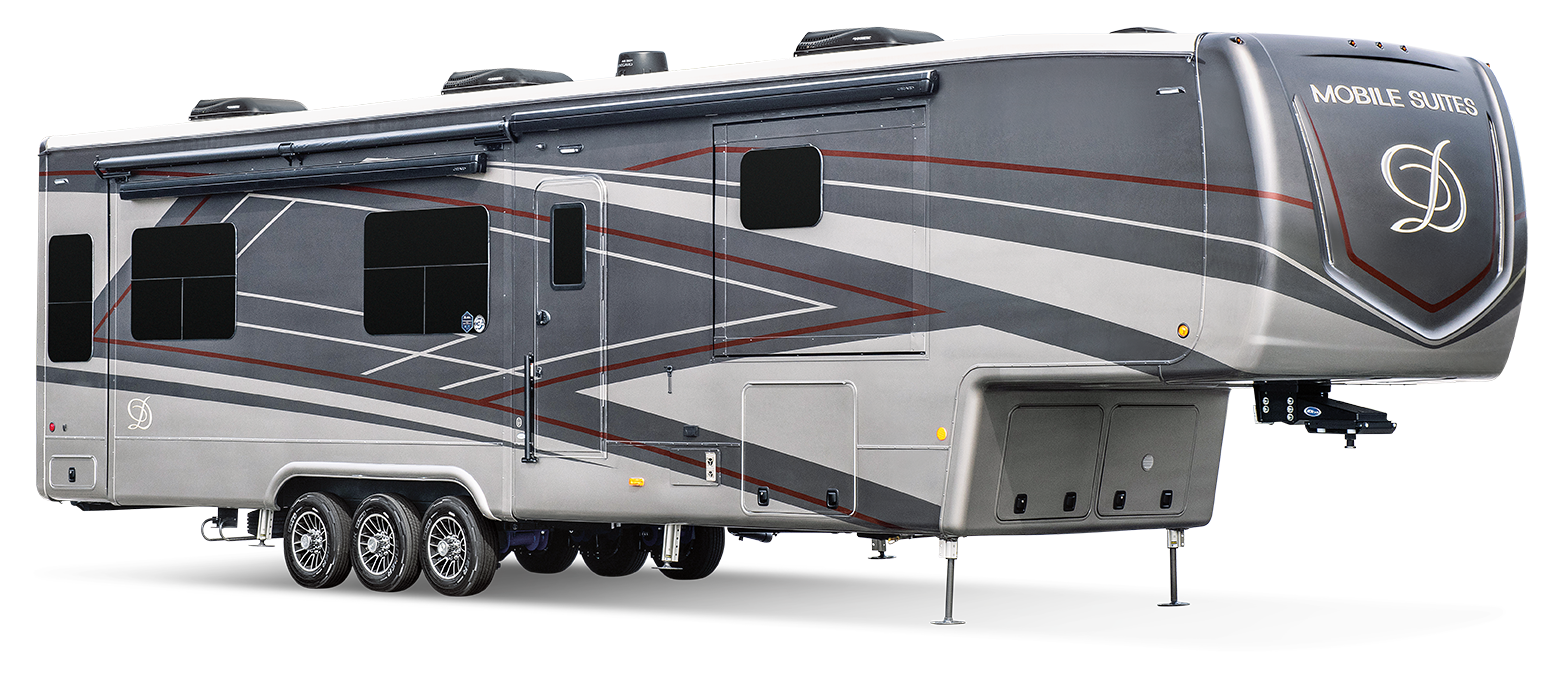

Floorplan: MS Manhattan (Fifth Wheel)

Dimensions

Weights

Capacities

2025 DRV Mobile Suites RVs for Sale Near You

Exterior

Electrical

Features

Top Selling Features
15" Triple Stacked Box Tube Frame
3" Thick Floor
3 1/4" Thick Walls/Slides
1/4" Thick Gelcoat Azdel Fiberglass w/Wood Backer
1/4" Monsanto® Fome-Cor Vapor Barrier (Eliminates Condensation)
Seamless, 1-Piece Rubber Roof
Custom Painted Exterior w/Clear Coat
Frameless Tinted Safety Glass Windows
Residential 5 Duct Heating System w/6" Ducting
17 1/2" H-Rated Tires

Framing/Running Gear
17 1/2" H-Rated Tires
Heavy Duty Grease Bolt Shackles w/Bronze Bushing
Kodiak® Automotive Disc Brakes
Heavy Duty Axles
Commercial Grade E-Z Lube® Hubs
15" Triple Stacked Box Tube Frame
101" Wide Body
Industrial Hydraulic System for Jacks & Lower Level Slides
Electric Bedroom Slide
Slide Outs w/Select Push Button Controls
Pinless Hydraulic Front Landing Jacks at 5 Degree Outboard Angle

Construction - Floor
3" Thick Floor
14" O.C. Floor Aluminum Floor Joists
Screwed & Glued Joist Construction
5/8" Tongue & Groove Plywood Flooring
Residential Perimeter Heating
Residential Rated R29 Insulation

Construction - Walls/Slides
3 1/4" Thick Walls/Slides
16" O.C. Stud Spacing
Screwed & Glued Aluminum Stud Construction
1/4" Monsanto® Fome-Cor Vapor Barrier (Eliminates Condensation)
1/4" Thick Gelcoat Azdel Fiberglass w/Wood Backer
Residential Rated R16 Insulation

Construction - Roof
16" O.C. Rafter Spacing
Residential Rated R25 Insulation
1/2" Plywood Roof Overlayment
Seamless, 1-Piece Rubber Roof
Soft-Touch Vinyl Ceiling, Including Interior Slide-Out Ceilings

Exterior Features
Straight Roof Line w/8' Tall Interior Slide Out Height
High Density Insulation
Custom Painted Exterior w/Clear Coat
Gelcoat Fiberglass Molded Caps
Frameless Tinted Safety Glass Windows
Five Exterior Security Lights
Commercial LED Exterior Clearance Lights
Amber LED Front Cap Turn Signal
LED Docking Lights
78" Entry Door
Metal Slam Door Compartment Latches
Extra Thick Compartment Doors w/Gas Struts
Motion Sensor LED Light Switches for Basement
Washable Storage Compartment Liner
Custom Enlarged Control Center w/LED Lighting
Lend-a-Hand Exterior Grab Handle
Power Awning w/LED Lights & Aluminum Weather Shield
Water Pump Switch at Outside Hookup Center

Systems/Tanks
50 Amp Service w/Detachable Cord
80 Amp 12 VDC Converter
100 Gal. Fresh Water Tank
75 Gal. Grey Water Tank w/Power Flush
50 Gal. Black Water Tank w/Power Flush
SeeLevel Tank Monitoring System on All Tanks
Residential Type 1/2" Water Lines
Exclusive Copper Water Manifold w/Individual Shut-Off Valves
Whole House Water Filtration System
Multi-Switch Water Bypass System
Slide Out Propane Tray w/Dual 40 Lb. Tanks
12 VDC Battery on Pull Out Tray
40,000 BTU Furnace w/Custom Plenum
Residential 5 Duct Heating System w/6" Ducting
Forced Heat Ducting to Tanks/Water System
Fully Ducted A/C System w/Cold Air Return
15,000 BTU Low-Profile Main A/C
Wired & Ducted Bedroom A/C w/Cold Air Return
Triple 15,000 BTU Low-Profile A/Cs
Solar Prep
HD Roof Satellite Prep for Dual DVR Receivers
HD Ground Satellite & Cable Prep
Power HD TV Antenna

Interior - Living Room/Dinette
Hand Laid Vinyl Plank Tile
Residential Rebond Carpet Pad
Plush Residential High Durability Carpet
Toffee Grove /Chai Hickory/Italian White Solid Hardwood Cabinetry
Solid Hardwood Fascia Trim Around Slide Outs w/LED Lights
Solid Hardwood Cabinet Stiles (Pocket Drilled/Screwed)
Concealed Cabinet Door Hinges
Raised Panel Cabinetry
Soft-Close Full Extension Metal Drawer Guides
LED Interior Ceiling Lighting on Dimmer Switches
Decorative Wall Clock (Most Models)
Utility Closet w/Coat Storage & Centralized Control Station (Most Models)
Interior Ceiling Fan (Most Models)
Decorative 12V Light Sconces
Custom Hardwood Dinette Buffet w/Solid Surface Top
Dinette Table w/Hidden Leaf Extension
(2) Hardwood Dinette Chairs w/Fabric Accent
Crown Molding Throughout
HD Wiring Throughout
Residential Sofa w/Hide-a-Bed (Most Models)
Residential Theatre Seating w/Center Console (Side Entertainment Models)
Residential Recliners (Rear Entertainment Models)

Interior - Gourmet Kitchen
20 Cu. Ft. Residential Stainless Steel French Door Refrigerator
Stainless Steel Convection/Microwave
Stainless Steel Residential Style Gas Oven
Stainless Steel Residential Dishwasher
Pull-Out 13 Gal. Garbage Can (Most Models)
Deep Double Bowl Stainless Steel Sink w/Sink Covers
Residential Kitchen Faucet
Custom Hand Laid Tile Backsplash
High Polished Solid Surface Countertops
Custom Appliance Garage w/Pull-Out Tray (Most Models)
Custom Over the Island Accent Light
Lighted Pantries & Kitchen/Bathroom Toe Kicks

Interior - Master Bath/Hallway
Hardwood Steps with Woven Inlay
Hand Laid Vinyl Plank in Hallway/Bathroom
No Carpet in Hallway
Washer/Dryer Prep
Heat & A/C Ducting in Bathroom
Powered Fan in Bathroom (Exhaust Only)
Sky-Light Over Shower w/LED Pot Light
Porcelain Toilet w/Water Saver Spray
Fiberglass Shower Pan w/Full Height Decorative Shower Walls
