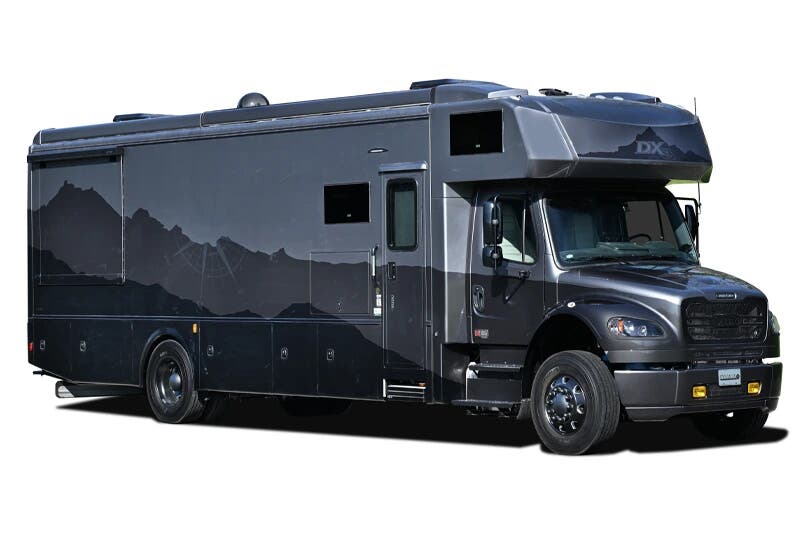

Specs for 2025 Dynamax Corp - DX3

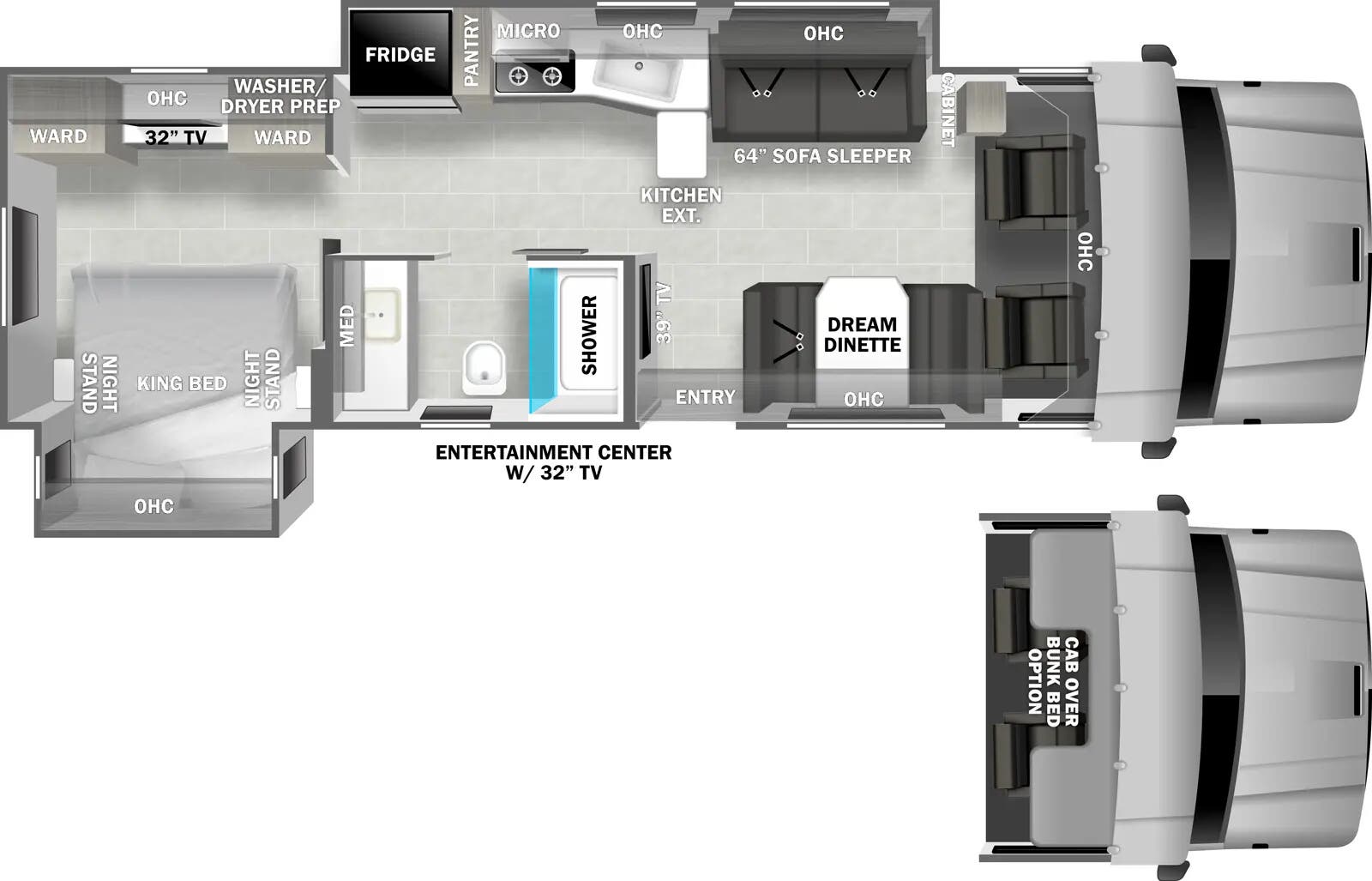

Floorplan: 32KD (Class C)

General

Dimensions

Weights

2025 Dynamax Corp DX3 RVs for Sale Near You

Capacities

Engine/Transmission

Exterior

Electrical

Features

CHASSIS

Freightliner® M2 106 Plus Chassis (33,000-lbs. GVWR)
Cummins® L9 Turbo Diesel Engine (360hp / 1,150 lb-ft. of Torque)
Allison® 3200 TRV Six-Speed Automatic Transmission
100-Gallon Fuel Capacity (Twin 50-Gallon Aluminum Fuel Tanks)
6-Gallon Diesel Exhaust Fluid Tank
Trailer Hitch (20,000 Tow lbs. / 2,000 Tongue lbs.) with 7-Way Round Tow Connection
Brake Controller
C-Brake by Jacobs® with High/Medium/Low Settings
Locking Differential
Airliner® 21,000-lb. Rear Suspension
Manual Air Suspension Dump Valve Switch on the Dash
275-Amp Alternator
Quick Disconnect Fitting with Tire Inflation Kit
Air Brakes with 4-Wheel ABS
Bilstein® Gas-Charged Front Shock Absorbers
Equiflo™ Inboard Fuel System (Dual Supply – Dual Return)
Fuel Filter/Water Separator with Primer Pump
Engine Block Heater
Steel-Reinforced, Aluminum Cab
Chrome Grille and Air Intake Grille
Front and Rear Tires: Michelin® XZE2 275/80R22.5 (14 Ply Radials)
Single Front Wheels: Alcoa® Aluminum (22.5" x 8.25") *Outside Rims are Polished
Dual Rear Wheels: Alcoa® Aluminum (22.5" x 8.25") *Outside Rims are Polished
Valve Extensions
Tire Pressure Monitoring System
4.78 Rear Axle Ratio
Daytime Running Lights
LED Headlights
Tinted Door Glass and Wing Windows
Chassis Battery Shut Off Switch in Cab
Leatherette Driver and Passenger Air Ride Seats with Air Lumbar Controls
Quad-View Camera System (Right Side, Left Side, Hitch, and Rear Horizon Views)
Kenwood® 10” Touch Screen Dash Infotainment System with AM/FM, Bluetooth®, Sirius/XM® (Tuner and Antenna), Apple® CarPlay™ / Android® Auto™ Functionality, and Garmin® RV Navigation
JBL® Premium Cab Sound System – Full Range/Tweeter Coaxial Speakers, Dual Voice Coil Subwoofer, and High-Efficiency, High-Performance 4-Channel DSP Amplifier Tuned Specifically for the Freightliner M2
Mobileye® Collision Avoidance System
Air Horn
12V Accessory Ports
One Valve Parking Brake System with Warning Indicator
Engine After-Treatment Device with Automatic Regeneration and Dash-Mounted Regeneration Switch
Momentary Battery Booster Switch (Connects Chassis and House Batteries)
Marker Lights with Separate Interrupter Switch
Low Air Pressure Light and Buzzer
Cruise Control
Adjustable Steering Column
18" Leather-Wrapped Steering Wheel
Power and Heated Exterior Mirrors
Power Windows and Locks
3-Point Seat Belts
Dual Reading Lights
Two Cup Holders in Dash

CONSTRUCTION

2" Aluminum-Framed, Laminated Sidewalls with High-Density Block Foam Insulation
Composite Exterior Fiberglass (No Exterior Wood)
Aluminum-Framed Floor
Aluminum-Framed Roof Trusses
Crowned, One-Piece Fiberglass Roof
Foil-Lined Ductwork Throughout
Fiberglass Rear Cap and Front Wing Panels
Automatic 4-Point Hydraulic Leveling Jacks
Dual-Pane, Dark-Tinted Frameless Windows
Seamless Rotocast Storage Compartments with LED Lighting
Side-Hinged, Locking Aluminum Exterior Storage Doors with Paddle Latches

EXTERIOR

Custom Full Body Paint Package
Premium Cut and Buffed Paint Finish
Front-End Diamond Shield® Paint Protection
Roof-Mounted, Integrated Armless Patio Awning with LED Lighting and Wind Sensor
Aluminum-Wrapped Slideout Toppers
LED Patio Light
Entry Door with Rotary Latch, Dark-Tinted Frameless Window, and Integrated Shade
Keyless Entry Touch Pad at Entry Door
Lighted Acrylic Entry Grab Handle
Power Entry Steps with Upgraded SeaDek® Step Treads
Exterior Wall-Mounted Entertainment Center with 32" LED Smart TV
Front and Rear LED Clearance and Marker Lighting
Rear LED Docking Lights
Polished Stainless Steel Cab Step Treads
Rear “DYNAMAX” Rock Guard
Chrome Exhaust Tip

INTERIOR

Luxury Vinyl Tile with Soft Silence Acoustical Pad Throughout
Deluxe Carpet with Pad in Select Living Area Slide Rooms
Soft-Touch Padded Vinyl Ceiling
Luxury Vinyl Tile Entry with Non-Skid Rubber Steps
LED Recessed Ceiling Lights
Sprung, Residential-Style Dinette Seats with Lift-Up Storage
Tri-Fold Sofa
Coordinating Fabric Window Treatments
Day/Night Roller Shades
Hardwood Raised Panel Cabinetry with Five-Piece Drawer Fronts
Hardwood Shaker-Style Passage Doors
Full Extension, Soft-Closing Drawer Guides (where applicable)
Hidden Hinges
42" LED Smart TV (Living Area)
Sound Bar
Thermal Reflective Front Privacy Shades
USB Charging Ports

KITCHEN

16 cu. ft. Residential Refrigerator with Ice Maker
Sealed Gas Range with Glass Cover
Convection Microwave Oven
Solid Surface Countertops with LED Edge Lighting and Backsplash
Stainless Steel Sink with Solid Surface Covers
Residential Stainless Steel Spring Gooseneck Faucet
Pantry
Overhead Cabinet Accent Lighting
Under-Cabinet Lighting
MaxxAir® Power Vent with Built-In Rain Cover

BEDROOM

King Bed (71" x 78") with Gel-Infused Memory Foam Mattress
Deluxe Padded Headboard
Designer Bedding Package
32" LED Smart TV with Sound Bar
Cedar-Lined Wardrobe
Nightstands with Solid Surface Countertops
LED Reading Lights
USB Charging Ports

BATHROOM

Polymarm® Shower Surround
Shower Skylight
Glass Shower Door
Oxygenics Body Spa® RV Shower Head
Solid Surface Countertop with LED Edge Lighting and Backsplash
Under-Mount Sink with Residential Brushed Nickel Faucet
Porcelain Electronic-Flush Macerator Toilet(s)
MaxxAir® Power Vent with Built-In Rain Cover

UTILITIES

Dual 12V 8D AGM Deep-Cycle, Maintenance-Free Batteries
Multiplex® Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth® Smartphone App Control
Battery Disconnect
50-Amp Service with Power Cord Reel
3,000W Hybrid Pure Sine Wave Inverter/Charger (3,500 Peak Watts)
8kW Onan® Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)
Automatic Generator Start
Solar Panel – Single 200 Watt with 30 Amp Controller
Dual Ducted, Low-Profile 15,000-BTU Air Conditioners with Heat Pumps
Aqua-Hot® 400D Diesel System
Combo Washer/Dryer Prep
20.3-Gallon LP Tank (WC)
LP Quick Connect
Water Filtration System
Exterior Shower in Service Bay
Power Water Hose Reel in Service Bay
Exterior GFCI Receptacle
Winegard® AIR 360+™ Dome Antenna (WiFi Extender, 4G LTE, Omnidirectional VHF/UHF OTA, FM, SIM Card Port)
4x4 HDMI Matrix
Cable TV/Satellite Hookup in Service Bay
Thetford® Sani-Con Turbo Macerator System
Black Tank Flush
SureLevel® Tank Level Monitoring System
Utility Compartment Heated by Aqua-Hot® System
Enclosed Holding Tanks Heated by Aqua-Hot® System
Upgraded 12V On-Demand Water Pump (4 Gallons Per Minute)
Carbon-Monoxide, LP Gas, and Smoke Detectors
Fire Extinguisher
Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD)
