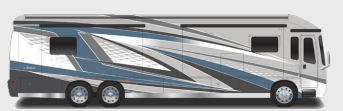

Specs for 2025 Entegra Coach - Anthem

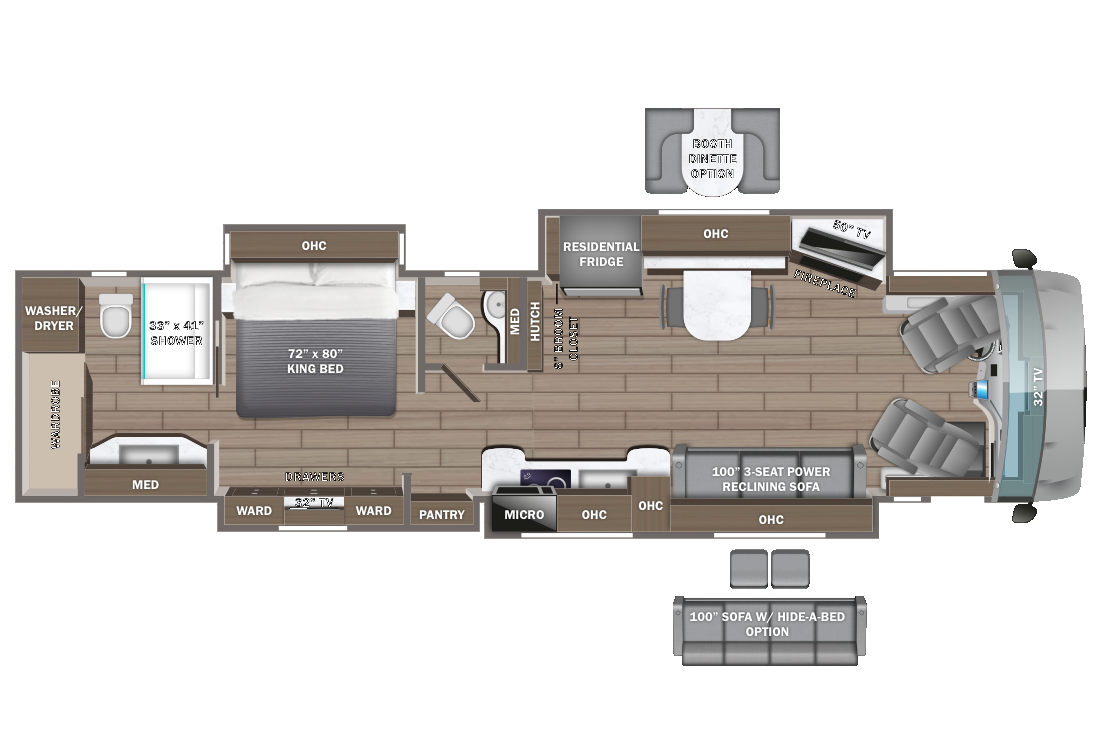

Floorplan: 44B (Diesel Pusher)

Dimensions

Weights

Capacities

2025 Entegra Coach Anthem RVs for Sale Near You

Engine/Transmission

Exterior

Electrical

Features

Chassis
Chassis	Spartan® K2 raised-rail chassis
Engine	Cummins® L9 turbocharged 450 HP engine with 1,250 lb. ft. torque at 1,400 RPM
Transmission	Allison® 3,000 MH 6-speed transmission
Radiator	Side-mounted, parallel-airflow radiator
Alternator	170 amp alternator
Engine Block Heater	1,000W engine block heater
Engine Brake	Three-stage engine brake
Front Axle	Meritor® front axle with independent front suspension, integrated anti-sway bar and custom-tuned Koni® shocks- 20,000 lb. rating
Rear Axle	Meritor® rear axle - 20,000 lb. rating
Tag Axle	Tag axle with one-touch manual air dump - 12,000 lb. rating
Braking System	ABS disc brakes on front axle, drum brakes on drive and tag axle
Rear Axle Ratio	4.88 rear axle ratio
Tires	Michelin® XZA 365/70R 22.5 in. tires (front) and XZA 315/80R 22.5 in. tires (rear)
Tire Pressure Monitoring	Tire pressure monitoring system (TPMS) with temperature monitoring
Traction Control	Automatic traction control
Leveling System	Equalizer™ hydraulic automatic coach leveling
Air Leveling	Valid™ Truline air leveling system with auxiliary air compressor
Air Connection	Remote air connection
Chassis Battery	(2) 12V chassis batteries
Fuel Tank	150 gal. fuel tank with dual fills
DEF Tank	15 gal. DEF tank with dual fills
Tow Air Brake System	Spartan® Safehaul tow vehicle air brake system
Hitch	15,000 lb. hitch with 7-pin plug

Construction
Roof	4 in. arched aluminum trusses filled with batt insulation and reflective Flexfoil® topped with 3/8 in. plywood decking then one-piece fiberglass
Walls	2-1/2 in. exterior walls with Aluma-Tru™ welded tubular aluminum studs on 16 in. centers or less, filled with batt and Flexfoil® insulation, then covered with high-gloss gelcoat fiberglass (R-16)
Floor	2 in. x 4 in. wood trusses on 16 in. centers or less filled with batt and Flexfoil® insulation then topped with 3/4 in. 7-ply plywood decking (R-33)
Frame	X-Bridge™ bracing welded into chassis frame
Slideouts	Entegra-exclusive Relia-Torque flush-mounted 12V slideout system

Heat, AC, Water & Power
Heated Tanks	Aqua-Hot® heated basement storage
Generator	Onan® 10,000W diesel generator, with automatic start, on powered slide-out tray
Batteries	(4) L16 AGM batteries (6V/390 amp hrs. ea.)
Solar	(2) 200W solar panels
Electrical Hookup	50 amp power cord on electric powered reel
Transfer Switch	Smart automatic transfer switch with surge protection
Air Conditioning	(3) 15,000 BTU A/C units with heat pumps and condensation drain system
Heating System	Aqua-Hot® 450D hydronic water and heating system with in-floor heat throughout and engine preheat
Black Tank Management	Sani-Con® macerator holding tank dump system with manual gate valves and manual backup
Tank Flush	Black tank flush; Grey tank flush
Tank Assist	Tilt tank dump
Water Filtration	City and tank water filtration system
Water Hook-Up	Hot and cold water hook-up in front cap area with 30 ft. quick-disconnect hose
Water Hose w/ Electric Reel	Water hose with electric reel
Inverter	Victron 3,000W Pure Sine Inverter with LED Screen
Water Softner	Water softener prep in driver-side compartment

Exterior
Front/Rear Cap	Insulated front and rear caps (R-24)
Utility Center	Heated exterior utility center with 5 in. LED SeeLeveL™ tank monitoring panel
Stainless Steel Accents	Premier Bus Armor 8 in. stainless steel trim
Engine Door	Power rear engine door with manual override
Patio Awnings	Dual roof-mounted Girard® Vision dual-pitched patio awnings with LED lights
Door Awning	Girard® power entrance door awning with LED lights
Slideout Awnings	Girard® Ultra slideout awnings
Window Awnings	Girard® Ultra power window awnings
Windows	Frameless, dual-pane, tinted, safety-glass windows
Exterior	Diamond Shield™ front protective film mask
Entertainment	43 in. Samsung® QLED 4K UHD Smart TV with tilt, swivel, and extend adjustment; JBL® radio and speakers with USB port and receptacle
Mirrors	Blind-spot monitoring indicators in chrome, heated, remote-control side-view mirrors
Keypad	Lit grab handle with doorbell and keypad system for keyless entry
Headlights	Automatic LED high and low beam headlights
Fog Lights	Halogen fog lights
Daytime Running Lights	Automatic daytime running lights
LED Lights	LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights
Accent Lights	LED accent lights under all slideout rooms
Chrome Accents	LED-lit chrome clearance accent light
Lights	Porch light and motion sensor security lights
Rear Mudflap	Mudflap with chrome “Entegra Coach” nameplate
Satellite Internet	Starlink satellite internet system
Satellite Dish - US	Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option
Satellite Dish - CA	Winegard® TRAV’LER Pro satellite dish Shaw TV - standard with CSA option
Antenna	Winegard® Rayzar Automatic powered TV antenna
Wi-Fi	Winegard® WiFiRanger™ Wi-Fi extender
Cargo Features	(2) power slideout basement storage trays
Freezer	2.8 cu. ft. exterior refrigerator/freezer on slideout tray
Baggage Doors	Push-button, power-unlatching baggage doors with LED indicator light
Exterior Walls	Sikkens custom full-body paint
Entrance Door	Removable screen on entry door

Cockpit
Additional Amenities	Bergstrom dual-zone HVAC system; Dual USB port and one 12V socket for charging
Dash	Valid™ 15 in. digital dash with quad core graphics processor, on-board diagnostics and ability to display traditional instrument cluster, 360° camera system or GPS navigation
Cameras	Delta Mobile Systems® aiDARS™ 1X active 360° surround view system with 14 smart radar sensors and 6 HD cameras displayed on digital dash screen
Infotainment System(s)	Valid™ infotainment system with 15 in. touchscreen, Sygic navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control, house mode whole-coach audio distribution and integrated VegaTouch coach control
Side Consoles	4.3 in. infotainment control touchscreen in passenger console
Driving Features	E-Z Steer™ adjustable power steering assist
Steering Wheel	Leather steering wheel with integrated controls for screen selection, instrument cluster navigation, media source selection, cruise, wipers and Bluetooth® phone functionality
Steering Column	Power tilt and telescoping steering column
Sound System	JBL® premium audio 11-speaker sound system with amplifier, speakers and DVC subwoofer
Antenna	All-in-one automotive antenna for AM/FM/Sirius/GPS dash radio system
Windshield	Ultra-Vision® one-piece wrap-around tinted windshield; Rain-sensing windshield wipers
Driver / Passenger Seats	Heated and cooled leather driver and passenger seats with powered 6-way adjustment, lumbar, recline and footrest functions
Power Features	Powered flush stepwell cover
Pedals	Powered adjustable brake and accelerator pedals
Visors & Privacy Shade	Powered front sun visors and privacy shades
Collision Mitigation	Collision avoidance system with collision warning, adaptive cruise control and electronic stability control

Interior
Electric Fireplace	LED-lit fireplace with 5,000 BTU heating element
Television - Front Overhead	32 in. Samsung® QLED 4K UHD Smart TV in front overhead
Command Center	Firefly multiplex system with 10 in. VegaTouch touchscreen, for complete integration of coach controls, with remote monitoring and control (mobile app available)
Switches	Spyder 3.5 in. touchscreen switches throughout
Television - Living Room	50 in. Samsung® QLED 4K UHD Smart TV
Sound - Living Room	Bose® sound bar with subwoofer and universal remote control
DVD Systems	Sony® Blu-ray™ player
Furniture	Premium leather Crown Compass furniture
Flooring	Hand-laid porcelain tiled floors
Lighting	LED interior lighting
Ceiling	Decorative ceiling feature with integrated accent lighting
Window Treatments	Powered solar day and blackout night shades
Central Vacuuming System	Portable Shark® vacuum cleaner
Interior Doors	Aire-Secure™ travel locks for all pocket doors
Washer/Dryer	Splendide stackable washer and dryer

Kitchen
Window	Window with push out lever operation and screen
Refrigerator	Stainless steel residential refrigerator
Cooktop	Induction cooktop with matching wood cover
Microwave	1.9 cu. ft. convection microwave oven
Dishwasher	Fisher & Paykel dishwasher
Countertops	Solid-surface countertops and dimmable LED accent lighting
Water Dispenser	Filtered water dispenser at kitchen sink
Vent	Maxxair® power vent exhaust fan with intake and touch screen control
Waste Basket	Large, deep drawer for waste basket with easy access trash chute
Storage	Pantry with pull-out shelves; Slide-out storage tray(s) in overhead cabinet
Sink	Blanco single-bowl granite sink

Bedroom
Bed	Personal Comfort® A5 king-size mattress
Television	32 in. Samsung® LED 4K UHD Smart TV
Sound	Bose® sound bar with universal remote control
DVD Systems	Sony® Blu-ray™ player
Ceiling Fan	Ceiling fan
Nightstands	Nightstands with solid-surface tops
Wardrobe	Automatic light in rear closet

Bathroom
Countertop(s)	Solid-surface countertops with integrated sink and dimmable LED accent lighting
Shower	Porcelain tile shower with skylight and clear glass shower door
Shower Seat	Teakwood shower seat
Shower Head	Fixed shower head and separate hand-held spray wand
Water Saving System	Aqua View SHOWERMI$ER™ water saving system
Toilet	Thetford® macerator toilet in main bath; Thetford® toilet in mid bath
Vent	Maxxair® Deluxe power exhaust vent fan with intake

Safety
Carbon Monoxide Detector	Carbon monoxide detector
Smoke Alarm	Smoke alarm
Security Safe	Storage safe
