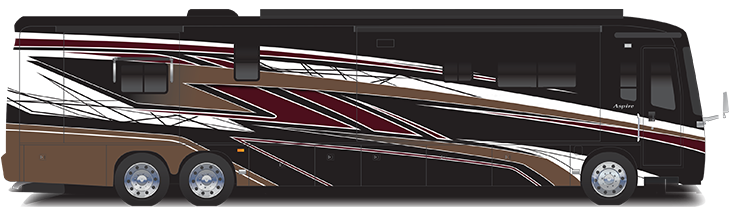

Specs for 2025 Entegra Coach - Aspire

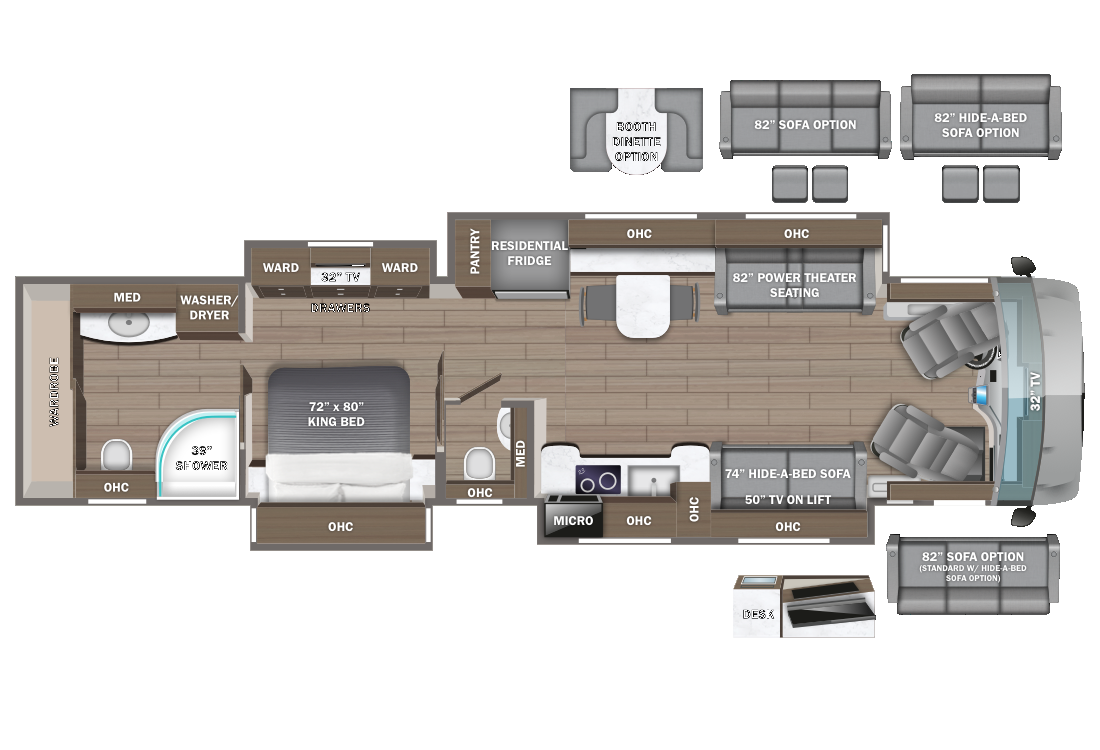

Floorplan: 44W (Diesel Pusher)

Dimensions

Weights

Capacities

2025 Entegra Coach Aspire RVs for Sale Near You

Engine/Transmission

Exterior

Electrical

Features

CHASSIS:

Spartan® K2 raised-rail chassis
Cummins® L9 turbocharged 450 HP engine with 1,250 lb.-ft.
torque at 1,400 RPM
Allison® 3,000 MH 6-speed transmission
Side-mounted, parallel-airflow radiator
170 amp alternator
1,000W engine block heater
Three-stage engine brake
Reyco® Granning® front axle with independent front
suspension - 17,000 lb. rating
Meritor rear axle - 20,000 lb. rating
Tag axle with one-touch manual air dump
- 12,000 lb. rating
ABS disc brakes on front axle, drum brakes on drive and tag axle
4.88 rear axle ratio
Michelin® X Coach Z tires (315/80R22.5 in front,
295/80R22.5 in rear)
Bilstein® 46mm shocks
Tire pressure monitoring system (TPMS) with
temperature monitoring
Equalizer™ hydraulic automatic coach leveling
Valid™ Truline air leveling system with auxiliary
air compressor
Remote air connection
(2) 12V chassis batteries
150 gal. fuel tank with dual fills
15 gal. DEF tank with dual fills
Spartan® Safehaul tow vehicle air brake system
15,000 lb. hitch with 7-pin plug

CONSTRUCTION:

Roof: 4 in. arched aluminum trusses filled with batt
insulation and reflective Flexfoil® topped with 3/8 in.
plywood decking then one-piece fiberglass
Sidewalls: 2-1/2 in. exterior walls with Aluma-Tru™
welded tubular aluminum studs on 16 in. centers or
less, filled with batt and Flexfoil® insulation, then covered with high-gloss gelcoat fiberglass (R-16)
Floors: 2 in. x 4 in. wood trusses on 16 in. centers or less
filled with batt and Flexfoil® insulation then topped with
3/4 in. 7-ply plywood decking (R-33)
X-Bridge™ bracing welded into chassis frame
Aqua-Hot® heated basement storage
Insulated front and rear caps (R-24)
Entegra-exclusive Relia-Torque flush-mounted 12V
slideout system

HEAT, A/C, WATER, AND POWER:

Onan® 10,000W diesel generator, with automatic start,
on slide-out tray
Victron 3,000W pure sine wave inverter with LED Screen
(2) L16 AGM batteries (6V/390 amp hrs. ea.)
(2) 200W solar panels
50 amp power cord on electric powered reel
Smart automatic transfer switch with surge protection
Bergstrom dual-zone HVAC system
(3) 15,000 BTU A/C units with heat pumps and condensation drain system
Aqua-Hot® 400D hydronic water and heating system with
in-floor heat throughout
Sani-Con® macerator holding tank dump system with manual gate valves and manual backup
Black tank flush
Grey tank flush
Tilt tank dump
City and tank water filtration system
Hot and cold water hook-up in front cap area with 30 ft.
quick-disconnect hose
Water softener prep in driver-side compartment
Water hose with electric reel

EXTERIOR:

Power rear engine door with manual override
Dual roof-mounted Girard® Vision dual-pitched patio awnings with LED lights
Girard® power entrance door awning with LED lights
Girard® Ultra slideout awnings
Girard® window awnings
Frameless, dual-pane, tinted, safety-glass windows
Lit grab handle with doorbell and keypad system for
keyless entry
43 in. Samsung® 4K UHD Smart TV with tilt, swivel, and
extend adjustment
JBL® radio and speakers with USB port and receptacle
Blind-spot monitoring indicators in chrome, heated,
remote-control side-view mirrors
Diamond Shield™ front protective film mask
Automatic LED low beam headlights, halogen high beam
headlights and fog lights
Automatic daytime running lights
LED marker lights, turn lights, license plate light, third brake
light, accent lights and docking lights
LED accent lights under all slideout rooms
Porch light and motion sensor security lights
Mudflap with chrome “Entegra Coach” nameplate
Starlink satellite internet system
Winegard® TRAV’LER satellite dish DIRECTV®
- standard with USA option
Winegard® TRAV’LER Pro satellite dish Shaw TV
- standard with CSA option
Winegard® Rayzar Z1 TV antenna
Winegard® WiFiRanger™ Wi-Fi extender
Heated exterior utility center with 5 in. LED SeeLeveL™
tank monitoring panel
Slideout basement storage tray
Push-button, power-unlatching baggage doors with LED
indicator light
Sikkens custom full-body paint

COCKPIT:

Valid™ 15 in. digital dash with quad core graphics
processor, on-board diagnostics and ability to display
traditional instrument cluster, 360° camera system or
GPS navigation
Ramco 360° HD digital camera system
Valid™ infotainment system with 15 in. touchscreen, Sygic
navigation, Bluetooth®, Sirius XM™ and AM/FM tuner,
integrated camera control and house mode whole-coach
audio distribution
4.3 in. infotainment control touchscreen in passenger console
E-Z Steer™ adjustable power steering assist
Leather steering wheel with integrated controls for screen
selection, instrument cluster navigation, media source
selection, cruise, wipers and Bluetooth® phone functionality
Manual tilt and telescoping steering column
JBL® premium audio 5-speaker sound system with amplifier,
speakers and DVC subwoofer
All-in-one automotive antenna for AM/FM/Sirius/GPS dash
radio system
Ultra-Vision® one-piece wrap-around tinted windshield
Rain-sensing windshield wipers
32 in. Samsung® LED 1080P Smart TV in front overhead
Leather driver and passenger seats with powered 6-way
adjustment, lumbar and footrest functions
Powered flush stepwell cover
Powered adjustable brake and accelerator pedals
Powered front sun visors and privacy shades
Dual USB port and one 12V socket for charging

INTERIOR:

Firefly multiplex system with 10 in. VegaTouch touchscreen
for complete integration of coach controls
(mobile app available)
50 in. Samsung® 4K UHD Smart TV
Bose® sound bar with subwoofer and universal remote control
Sony® Blu-ray™ player
Premium leather Crown Compass furniture
Hand-laid porcelain tiled floors
LED interior lighting
Decorative ceiling feature with integrated accent lighting
Manual solar day shades and blackout night shades
Portable Shark® vacuum cleaner
Aire-Secure™ travel locks for all pocket doors
Removable screen on entry door
Carbon monoxide detector
Smoke alarm

KITCHEN:

Window with push out lever operation and screen
Stainless steel residential refrigerator
Induction cooktop with matching wood cover
1.9 cu. ft. convection microwave oven
Fisher & Paykel dishwasher
Solid-surface countertops with stainless steel sink and
dimmable LED accent lighting
Filtered water dispenser at kitchen sink
Maxxair® power vent exhaust fan with intake and touch
screen control
Large, deep drawer for waste basket with easy access trash
chute
Pantry with pull-out shelves
Slide-out storage tray(s) in overhead cabinet

BEDROOM:

King-size gel memory-foam mattress
32 in. Samsung® LED 1080P Smart TV
Bose® sound bar with universal remote control
Sony® Blu-ray™ player
Ceiling fan
Nightstands with solid-surface tops
Automatic light in rear closet
Storage safe

BATHROOM:

Solid-surface countertops with integrated sink and
dimmable LED accent lighting
Textured porcelain tile shower with skylight and clear
glass shower door
Teakwood shower seat
Fixed shower head and separate hand-held spray wand
Aqua View SHOWERMI$ER™ water saving system
Thetford® macerator toilet in main bath
Thetford® macerator toilet in mid bath
Maxxair® power exhaust fan with intake
Splendide stackable washer and dryer
