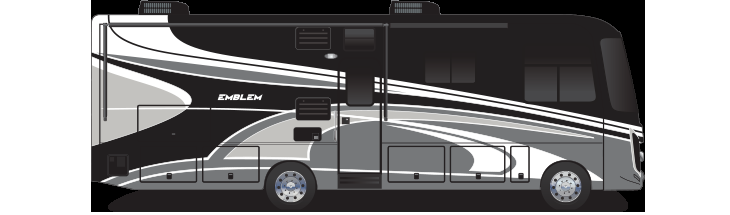

Specs for 2025 Entegra Coach - Emblem

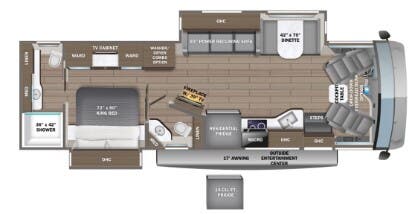

Floorplan: 36U (Class A)

Dimensions

Weights

Capacities

2025 Entegra Coach Emblem RVs for Sale Near You

Engine/Transmission

Exterior

Electrical

Features

CUSTOMER VALUE PACKAGE:

E-Z Drive™ Elite: Computer-balanced driveshaft, Bilstein® steering
 stabilizer, Koni® shocks, variable-rate front and rear jounce
 bumpers, heavy-duty front and rear stabilizer bars, 22.5 in.
Michelin® tires
Automatic hydraulic leveling jacks
Lippert™ 4000 series frameless bonded windows
15,000 BTU A/C unit with heat pump and second 13,500 BTU
 A/C unit
Exterior entertainment center with outside speakers and LED HD
 Smart TV mounted on swivel bracket
Electric patio awning with LED lights
Slideout cover awnings
5,500W generator with auto-gen start
2,000W inverter
50-amp electrical service
10 gal. gas/electric water heater
Sony® infotainment center with Apple® CarPlay and Android Auto™
Backup and side-view cameras
Removable driver/passenger cockpit table
LED-lit, solid-surface kitchen countertops with recessed stainless
 steel sink and sink covers
LED HD Smart TV in living area
Integrated day/night cassette shades

STANDARD CHASSIS EQUIPMENT
Ford® F53 chassis
GVWR- 24,000 lb.
GCWR- 30,000 lb.
7.3L V-8 335 HP engine with 468 ft.-lb. torque
6-speed automatic TorqShift® transmission with overdrive and tow
 haul mode
210-amp alternator
Catalytic converter theft deterrent
G-rated highway tires - 255/80R22.5
Front and rear disc, 4-wheel anti-lock brakes
5,000 lb. rear hitch receiver with dual connector and 7-pin plug
12V chassis battery
80 gal. fuel tank

STANDARD EXTERIOR EQUIPMENT
Tuff Shell™ vacuum-bond laminated roof, fl oor and sidewalls
Bead-foam insulation (R-24 max roof, R-9 max fl oor, R-8 max walls)
One-piece, seamless, crowned fi berglass roof
One-piece, seamless fi berglass front and rear caps
Premium Sikkens full-body paint
Entrance door with industry’s largest travel-view window
Electric-powered entrance steps
Lockable pass-through storage compartments with slam latches
Thetford® Sani-Con® Turbo macerator system
LED headlights
Third brake light
Roof ladder
Prep for satellite dish
Cable TV hookup with RG-6 coax
Winegard 2.0 Wi-Fi/4G antenna
200W solar panel with dual controller
(2) 6V AGM (220Ah) house batteries on slideout tray
Transfer switch with reverse polarity protection
24.5 gal. propane tank (83 lb.)
LP quick-connect hookup
Exterior utility center
Winterization drain system
Black tank fl ush
Outside shower
12V demand water pump
Water fi ltration system

STANDARD COCKPIT EQUIPMENT
120 in. panoramic windshield
Power front privacy shade with manual side privacy shades
6-way power and swivel driver/passenger seats
Soft-touch, vinyl-wrapped automotive dash
Tilt steering wheel
Cruise control
Hill start assist
Electronic stability control
Traction control
Auxiliary start

STANDARD INTERIOR EQUIPMENT
Firefl y Multiplex system - wall-mounted touchscreen and mobile
 app for total coach control
84 in. interior ceiling height with padded vinyl ceiling
High-intensity recessed LED ceiling lights
Vinyl plank fl ooring
LED-lit hardwood fascia
Hardwood cabinet doors and drawer fronts
Deluxe hidden cabinet hinges
Ball-bearing drawer guides
30,000 BTU auto-ignition ducted furnace
Electric fi replace
Entegra-exclusive, easy-operation legless dinette table
2-point lap safety belts in all designated seating locations
Car seat tethers (select fl oorplans)
JBL® audio system
Smoke alarm
Carbon monoxide detector
Fire extinguisher
Wood-framed kitchen window with spice cabinets
Residential refrigerator
2-burner induction cooktop
Residential-size convection microwave oven
Walk-around, king-size bed with bedspread and nightstands
USB port and wireless charging in nightstands
Under-bed storage (select models)
LED HD Smart TV in bedroom
Large wardrobes
Shower with decorative surround, glass door, skylight and light
Recessed, LED-lit, stainless steel bathroom sink
Porcelain toilet with foot fl ush
Powered roof vent in bathroom with wall switch
