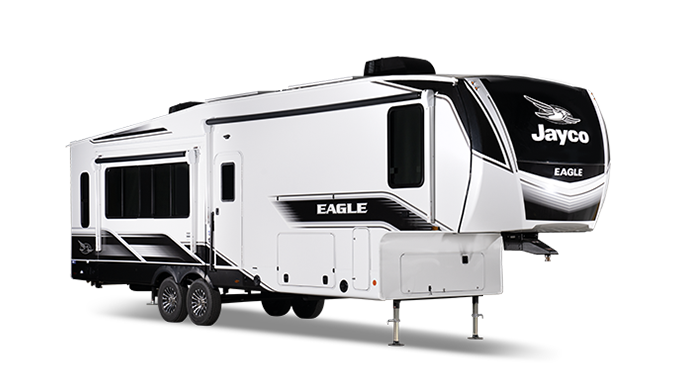

Specs for 2025 Jayco - Eagle
Floorplan: 355MBQS (Fifth Wheel)

Dimensions

Weights

Capacities

2025 Jayco Eagle RVs for Sale Near You

Exterior

Electrical

Features

EXTERIOR:
1.5 in. fresh water drain valve
5 in. Magnum Truss™ with plywood roof decking
50-amp detachable power cord
Additional dump valve at termination
Alpha Ply TPO roof membrane (thickest roof membrane with
 limited lifetime warranty)
Auto-grade vinyl graphics
Automotive style front cap with max turn radius
Black tank flush
Climate Shield™ zero-degree tested weather protection:
* Fully enclosed and heated underbelly (ducted)
* 35,000 BTU furnace
* Double layer fiberglass batt insulation in ceiling and floor
* Double sided radiant barrier insulation (roof, floor and
 behind cap)
* PEX plumbing
Commercial grade rubber flooring in pass through area
Dual 30 lb. LP bottles
Factory installed roof ladder
Galvanield steel coated outside kitchens
HELIX Cooling System™ (industry exclusive):
* Jayco exclusive insulated dual duct design
* Directional and closeable A/C vents
* Larger return air vents with user accessible filters
Independent satellite and cable hookups (outside kitchens
 and/or pass through storage areas)
LED exterior lighting package
LED light and switch at termination
LED lighting in pass through area
LP quick connect for gas griddle (next to JayPort)
Metal slam latch baggage doors
Nautilus 2.5 water connections
Nitrogen filled under mount spare tire (16 in.)
Quick connect water connections (door side hot/cold and off
 door side cold only)
Slide topper/awning prep
Stronghold VBL™ walls (laminated sidewalls, rear walls and
 slide out walls)

INTERIOR:
100% No Floor Vents
2-piece high gloss bathroom surround
5/8 in. tongue-and-groove plywood flooring
75 lb. full extension drawer guides
Bathroom skylight
Bedroom TV, satellite and cable prep
Extra 120V power outlets in kitchen and slide rooms
 (where applicable)
Gas strutted under bed storage
Handcrafted and glazed door/drawer fronts
Matte black kitchen faucet with pull-out sprayer
Medicine cabinet with custom framed mirror
NuVo H20 Water Treatment System (filters included)
Porcelain foot flush toilet
Residential vinyl flooring throughout (NO CARPET)
Solid hardwood slide fascia
Teak seat shower prep
Theater seating (select models)
Tri-fold hide-a-bed sofa with residential memory foam sleep
 surface (select models)
USB 12V charging ports (multiple locations throughout)
Water shutoff at all faucet locations

CUSTOMER VALUE PACKAGE (MANDATORY):
15,000 BTU “Whisper Quiet” A/C and bedroom A/C prep
50-amp service with dual A/C ducts
60,000 BTU on-demand tankless water heater
Custom machined aluminum rims
Electric patio awning (integrated dimmable LED lights with
 BMPro Tablet)
Exterior “Blue Sync” Audio Connect with MB Quart Sound
 (TV and phone)
Hidden hinges on cabinet doors
Interior “Blue Sync” Audio Connect with MB Quart Sound
 (TV and phone)
Keyed-Alike™ lock system
MORryde Step Above™ entrance steps (main entrance) with
 blue LED light
Rain proof bathroom power vent
Rear 2 in. towing receiver with 4-pin connector
Upgraded friction hinge entrance door
Winegard Air 360 + antenna and router prep (NOW 5G)

LUXURY PACKAGE (MANDATORY):
Blackout roller shades with reflective side throughout
Electric auto-leveling
GE 30 in. over-the-range black and stainless microwave with
 exhaust fan
Inverter pre-wire (multiple locations) ((7) 110 outlets) (6 USBs 12V)
JayPort 2 in. mount (for outside accessories)
Magnetic catches for all drawers and doors
Multi-Function “ALL in ONE” Stainless steel kitchen sink
Residential style glass shower door
Washer/dryer prep (select models)

5-STAR HANDLING PACKAGE (MANDATORY):
Dexter® ABS brake system with anti-sway
Dexter® Axles with NEV-R-Adjust® brakes and E-Z Lube® hubs
16 in. Goodyear® Endurance® tires (load range E)
MORryde® CRE-3000™ rubberized suspension
Wet bolt fasteners with bronze bushings

COMFORT PLUS PACKAGE (MANDATORY):
15,000 BTU “Whisper Quiet” Bedroom A/C
16 cu. ft. 12V refrigerator
16 in. Endurance® Goodyear® wheels/tires
50 in. 4K Ultra LED HD Smart TV in living room
90 in. x 92 in. residential quilted bedspread
BMPro Bluetooth® light switches throughout
Furniture cup holder tables (1 pair)
GE 24 in. residential stove with 4-burner cooktop
JAYCOMMAND® Smart RV System (Pro Tablet)
JaySMART™ (Safety Marker And Reverse Travel) exterior LED lights
King bed (72 in. x 80 in.) mattress with under-bed storage
Larger exterior baggage door sizes
LED fireplace with 5,000 BTU electric space heater
LED lights with dimmer switches and motion activated
 (throughout interior)
MORryde Safe-T-Rail grab handle
Overlander 1 Solar Package (200W panel and 30-amp solar
 controller)
Second power awning (dimmable LED lights)(select models)
Security monitor prep (rear, sides and entrance door)
Solid surface kitchen countertop
TPMS in Stem Monitoring (Tire Pressure Monitoring System)
