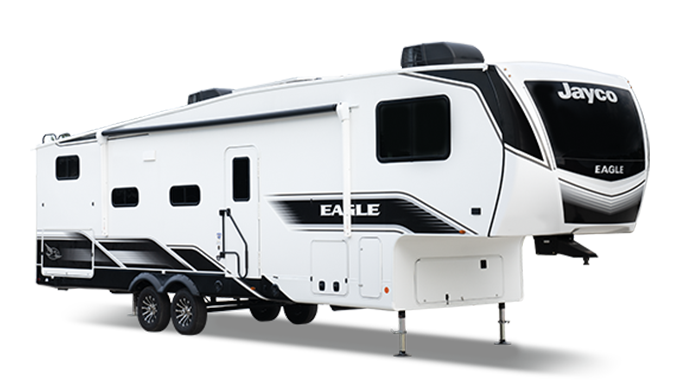

Specs for 2025 Jayco - Eagle HT
Floorplan: 28CRT (Fifth Wheel)

Dimensions

Weights

Capacities

2025 Jayco Eagle HT RVs for Sale Near You

Exterior

Electrical

Features

EXTERIOR:
1.5 in. fresh water drain valve
5 in. Magnum Truss™ with plywood roof decking
50-amp detachable power cord
Additional dump valve at termination
Alpha Ply TPO roof membrane (thickest roof membrane
 with limited lifetime warranty)
Auto-grade vinyl graphics
Automotive style front cap with max turn radius (painted
 on select models)
Backup camera prep
Black tank flush
Climate Shield™ zero-degree tested weather protection:
* Fully enclosed and heated underbelly (ducted)
* 35,000 BTU furnace
* Double layer fiberglass batt insulation in ceiling and floor
* Double sided radiant barrier insulation (roof, floor
 and behind cap)
* PEX plumbing
Commercial grade rubber flooring in pass through area
Dual 30 lb. LP bottles
Factory installed roof ladder
Galvanield steel coated outside kitchens
HELIX Cooling System™ (industry exclusive):
* Jayco exclusive insulated dual duct design
* Directional and closeable A/C vents
* Larger return air vents with user accessible filters
Independent satellite and cable hookups (outside kitchens
 and/or pass through storage areas)
LED exterior lighting package
LED light and switch at termination
LED lighting in pass through area
LP quick connect for gas griddle (next to JayPort)
Metal slam latch baggage doors
Nautilus 2.5 water connections
Nitrogen filled under mount spare tire (model/option
 varies 15 in. or 16 in.)
Overlander Solar Prep (Roof)
Quick connect water connections (door side hot/cold and
 off door side cold only)
Slide topper/awning prep
Stronghold VBL™ walls (laminated sidewalls, rear walls
 and slide out walls)

INTERIOR:
100% No Floor Vents
2-piece high gloss bathroom surround
5/8 in. tongue-and-groove plywood flooring
75 lb. full extension drawer guides
Bathroom skylight
Bedroom TV, satellite and cable prep
CPAP prepped bedroom (both sides)
Extra 120V power outlets in kitchen and slide rooms
 (where applicable)
Gas strutted under bed storage
Handcrafted and glazed door/drawer fronts
Matte black kitchen faucet with pull-out sprayer
NuVo H20 Water Treatment System (filters included)
Porcelain foot flush toilet
Residential vinyl flooring throughout (NO CARPET)
Solid hardwood slide fascia
Teak seat shower prep (select models)
Theater seating (select models)
Tri-fold hide-a-bed sofa with residential memory foam
 sleep surface (select models)
USB 12V charging ports (multiple locations throughout)
Water shutoff at all faucet locations

CUSTOMER VALUE PACKAGE (MANDATORY):
15,000 BTU “Whisper Quiet” A/C and bedroom A/C prep
40 in. 4K Ultra LED HD Smart TV in living room
50-amp service with dual A/C ducts
60,000 BTU on-demand tankless water heater
Custom machined aluminum rims
Electric patio awning
Exterior “Blue Sync” Audio Connect with MB Quart
 Sound (TV and phone)
Hidden hinges on cabinet doors
Interior “Blue Sync” Audio Connect with MB Quart
 Sound (TV and phone)
Keyed-Alike™ lock system
MORryde Step Above™ entrance steps (main entrance)
 with blue LED light
Rain proof bathroom power vent
Rear 2 in. towing receiver with 4-pin connector
Upgraded friction hinge entrance door
Winegard Air 360 + antenna and router prep (NOW 5G)

LUXURY PACKAGE (MANDATORY):
Blackout roller shades with reflective side throughout
Electric auto-leveling
GE 10 cu. ft. 12V refrigerator
GE 30 in. over-the-range black and stainless microwave
 with exhaust fan
GE black and stainless 21 in. range with edge to edge grates
Inverter pre-wire (multiple locations) ((7) 110 outlets)
 (6 USBs 12V)
JayPort 2 in. mount (for outside accessories)
Magnetic catches for all drawers and doors
Multi-Function “ALL in ONE” Stainless steel kitchen sink
Residential 66 in. x 80 in. Olympic size mattress
Residential style glass shower door
Washer/dryer prep (select models)

4-STAR HANDLING PACKAGE (MANDATORY):
Dexter® Axles with NEV-R-Adjust® brakes and
 E-Z Lube® hubs
Goodyear® Endurance® tires (load range E)
MORryde® CRE-3000™ rubberized suspension
Wet bolt fasteners with bronze bushings
