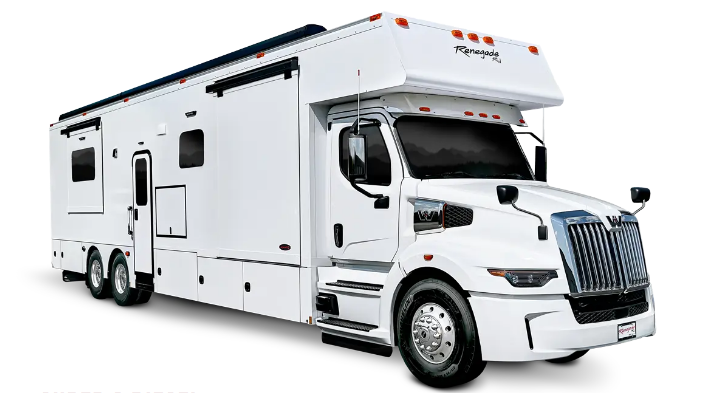

Specs for 2025 Renegade RV - Classic
Floorplan: 2609 (Super C)

Dimensions

Capacities

Engine/Transmission

2025 Renegade RV Classic RVs for Sale Near You

Exterior

Electrical

Features

CHASSIS AND CAB
Freightliner® Cascadia®, Volvo® VNR/VNL, Western Star®, and
Peterbilt® Chassis with Product-Specific Engine and Transmission
Options and Specifications Available
20,000 lbs Hitch, 7-Way Tow Connector with 2" Insert (Single Axle)
30,000 lbs Hitch, 7-Way Tow Connector with 2" and 2 5/16" Flip Ball
Receiver, 2" Insert, and Pintle Lock (Tandem Axle)
Polished Aluminum Wheels with Center Caps
Airliner® Rear Air Suspension
Auto Drain Valve for Air Brakes Reservoirs
Premium Touchscreen Dash Radio with Bluetooth and Integrated
Color Monitor (Chassis Specific)
Color Rear and Side View Cameras
Upgraded Cab Sound System (Chassis Specific)
Premium Freightliner® Sound and Thermal Insulation Package
LED Headlight with Bumper-Integrated Fog Lights
Power Windows and Door Locks
Power/Heated Remote-Control Mirrors
Air Ride Driver and Passenger Seat Pedestals with Swivels
Soft Touch Driver/Passenger Seats with Armrests
Auxiliary Air Chuck and Hose

EXTERIOR FEATURES
FRP Cabover Front with 60" Cab Bunk
Four-Point Hydraulic Leveling System with App
Lighted Exterior Entry Door Assist Handle
Keyless Entry
Powered Folding Double-Entry Steps
Unpainted (White) or 4-Tier Paint Personalization Program
Roof-Mounted Girard® 2-Stage Lateral Arm Awning with LED Lights
with End Caps
Slide Toppers with Covers
Frameless Dual Pane Tinted Windows with Screens
Power Locking, Side-Swing Aluminum Compartment Doors with
Single-Handle Paddle Latches and Double Catch
Steel Storage Compartments with Carpeted Lining
Full-Width Rock Guard Mudflap

CONSTRUCTION
5/8" FRP Roof and Exterior Walls (2 3/8" Total Wall Thickness)
1.5" High-Density Foam Insulation in Sidewalls and Roof
1.5? x 1.5? Wood Reinforcement Structure
"Super Sandwich" Floor Construction with Composite Underbelly
Includes:
2" Welded Steel Floor Joist System Mounted to (6" and 1.5?) Steel
Longitudinal Floor Beams
3/4" Fir Plywood Deck Over 2 x 4 Wood-Framed Residential Floor
with Thermal and Sound Deadening Insulation

PLUMBING SYSTEMS
150 Gallon Fresh Water Tank
75 Gallon Gray Tank
75 Gallon Black Tank
See-Level® Tank Monitoring System
Full Maintenance Wet Bay
Black Tank Flush System
Fresh Water Fill – City Water Hookup
Outside Faucet with Sprayer
On-Demand Water Pump
Whole House Water Filtration System

INTERIOR FEATURES
(3) Interior Décor Options
Décor Coordinating Wood Valances with Fabric Inserts
Double Roller Day/Night Shades (Manual)
Soft Touch Padded Walls and Ceiling
12" x 24" Porcelain Tile Flooring Throughout
Maple Hardwood Cabinetry
4-Wood Stain Color Options, 2-Finish Options
Dovetail Drawers on Soft Closing Slides
Framed Raised Panel Doors on Hidden Hinges
Pantry with Hidden Drawers
Hardwood Slide Fascia
Satin Nickel Door Hardware
Satin Nickel Kitchen Faucet
Solid Surface Countertops Throughout
Rectangular Single Bowl Undermount Kitchen Sink with Cover
Accent Lighting at Toe Kicks
Grouted Tile Backsplash
LED Dimmable Lighting
Memory Foam Mattress
Ultraleather® Furniture Upholstery
Convertible Booth Dinette with Storage
Sofa Sleeper, Hide-a-Bed
Loveseat with Storage (Select Floorplans)

BATH
Maple Hardwood Vanity, Medicine, and Linen Storage Cabinets
LED Vanity Light
Deluxe Satin Nickel Bath Faucet and Adjustable Showerhead
Satin Nickel Towel Bar, Towel Ring, and Toilet Paper Holder
Porcelain Macerator Toilet with Push Button Flush
Solid Surface Countertop with Integrated Sink
Solid Surface Shower with Wall Tile Inlay and Sliding Glass Door

APPLIANCES
18 cu. ft. French Door Residential Refrigerator with Stainless-Steel
Doors
Flush Mount 2-Burner Induction Cooktop
1.7 cu. ft. Stainless-Steel Convection Microwave Oven
Aqua-Hot® 450D Hydronic Water and Zone Heating System
(2 or 3) 15,000 BTU Roof A/C with Heat Pumps and Plumbed
Condensation Lines (Varies by Floorplan/Gen Size)
Ducted Air Conditioning
MaxxAir® Deluxe Power Vents
Central Vacuum System
Pre-Wired and Plumbed for Optional Washer/Dryer
Carbon Monoxide, LP and Smoke Detectors, and Fire Extinguisher

ELECTRICAL SYSTEMS
8KW Onan® Quiet Diesel Generator (Coaches Under 40')
12.5KW Onan® Quiet Diesel Generator (Coaches 40' and Over)
Automatic Generator Start System
50-Amp Electrical Panel
Dual 3,000W True Sine Wave Inverters
Transfer Switch with Surge Protection
(2) 330AH AGM House Battery
(3) 200W Solar Panels
Multiplex Control System with Wi-Fi App Control and Touchscreen
Switch Panels
USB/USB-C Charging in Living Area, Bedroom, Kitchen, and Bunk
Areas
50-Amp Power Retractable Shore Cord Reel
12V Holding Tank Heaters, Gray and Black Tanks

ENTERTAINMENT SYSTEMS
43"or 50? 4K Smart LED TV in Living Area (Floorplan Specific)
Soundbar Home Theater with Bluetooth Streaming and Wireless
Subwoofer in Living Area
32" or 43? 4K Smart LED TV in the Bedroom (Layout Configuration
Specific)
Exterior Entertainment Center
43" Smart LED TV on Swivel
Soundbar with Bluetooth Streaming
USB Charging
Winegard® Connect 5G Rooftop OTA Antenna with Wi-Fi and 5G
Ready (SIM Card Req.)
