Specs for 2026 Grand Design - Lineage Series VP

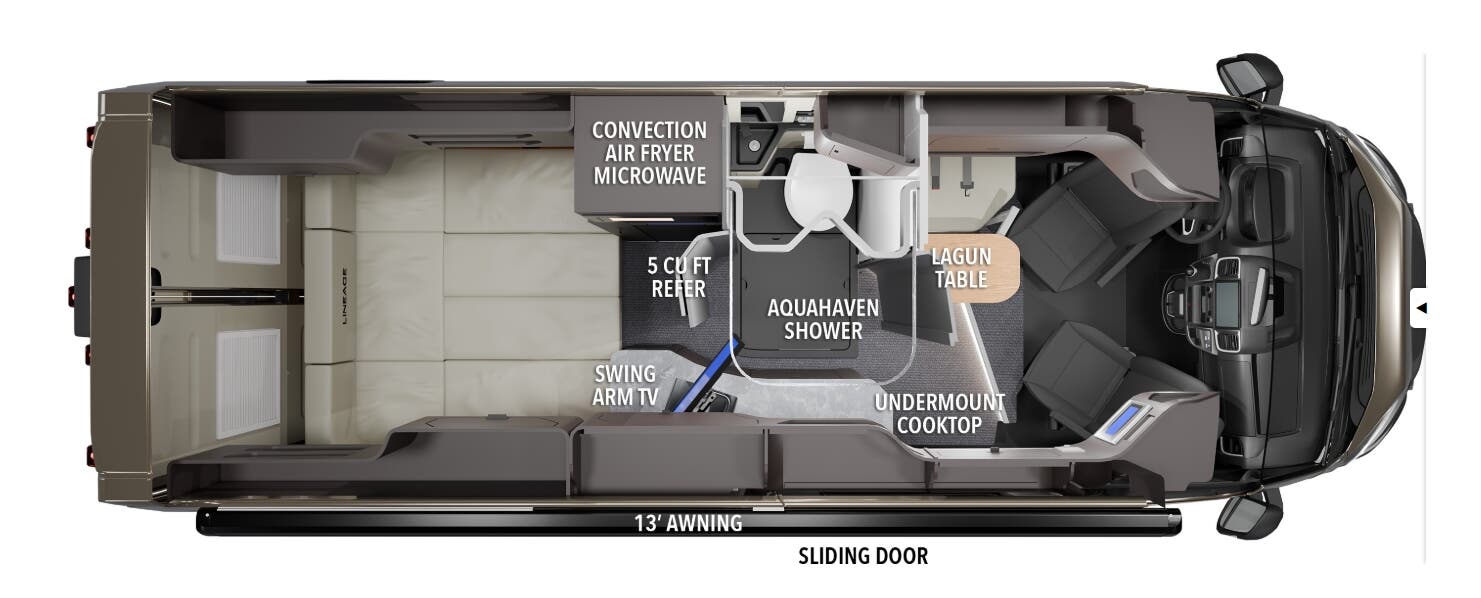

Floorplan: LVP2 (Class B)

General

Dimensions

Weights

2026 Grand Design Lineage Series VP RVs for Sale Near You

Capacities

Engine/Transmission

Exterior

Electrical

Features

FRAME & CHASSIS
3500 Cargo Van Super High Roof (159in WB EXT)
GVWR 9,350 lbs / GCWR 12,000 lbs
3.6L V6 24V VVT
Transmission: TorqueFlite FWD 9-Spd 948TE Auto Transmission
225/75R16C BSW All Season Tires
16 x 6-inch front and rear black aluminum wheels
Premium Heavy Duty Suspension
220 Amp Alternator
Auto high beam headlamp control
Full size spare tire underslung
Blind Spot and Cross Path Detection
Intelligent Speed Assist
Digital Rearview Mirror with AutoDim
Lane Departure Warning Plus
ParkSense FR/RR Park Assist System
Uconnect 5 Nav w 10.1" Display
Wireless Charging Pad
Passive Entry
Swiveling Driver and Passenger Seat
Apple CarPlay/Google Android Auto
Remote Start
SiriusXM Radio Service
Front Cup Holders
USB-C Socket
5,000lb tow hitch

CONSTRUCTION
2" Plascore Honeycomb composite floor with bottom radiant barrier
2tec2 Woven Fabric flooring
Alpha insulation and 3M Thinsulate
CNC Routed Wall Panels
Thermoformed ABS kithenette panels
Thermoformed Automotive wall panels
SharkBite Evo Pex Push2Connect Plumbing System (Max SS braided shut offs)

EXTERIOR
Polyplastic Double Pane acrylic operable windows
13ft Girard Armless Awning with Wind Sensor
Starlink prep included bracket and power cord
Exterior Shower
Ladder Prep
Power Sliding Step

INTERIOR
Side facing lounge bench w/ Lagun Table
Integrated black out window shades and screens
Multiple charging ports
Rear U-Shaped dinette lounge
6 seatbelt positions
Pull Across Flyscreen

KITCHEN
Invisacook Hidden Single Burner Induction Cooktop
Porcelain countertop
Furrion 0.9 cuft Air Fryer/Convection microwave
Positive locking latches
Soft-Close drawer slides
Norcold 5.3 cu. ft. 12V DC
Pull Out Pantry
Tip out trash can
Dovetail Drawer Boxes

BEDROOM
Expanding Lift Suite drop down bed
LED Reading Lights
USB-C Charging Ports
Pull Out and Telescoping Dinette Table
U shaped lounge converts to queen bed

BATHROOM
Thetford Toilet
LED Vent Fan
Medicine cabinet
Sink with pullout shower wand
Three position bathroom door: Travel, Toilet & Shower
Integrated flush floor shower pan

UTILITIES
Firefly Integrations® Touch Screen Command Center, Bluetooth® Switches & Smart Phone App (Global)
3,000 Watt 12 volt inverter charger
18K BTU Furrion Chill Cube Variable speed with Heat Pump
12V Water Pump
12V Heat pads (Fresh and Gray tanks)
Carbon-Monoxide, LP/ Smoke Detectors & Fire Extinguisher
30 Amp Electrical Service
Victron Solar Charge Controller
Maxx Air Fan
3,968 Watt-Hours 12V Lithionics battery (2nd battery optional)
180 Watt Merlin Solar Panel
Truma Combi G (Gasoline) Furnace and Hot Water Heater (2.6 gal)
