Specs for 2026 Jayco - Pinnacle

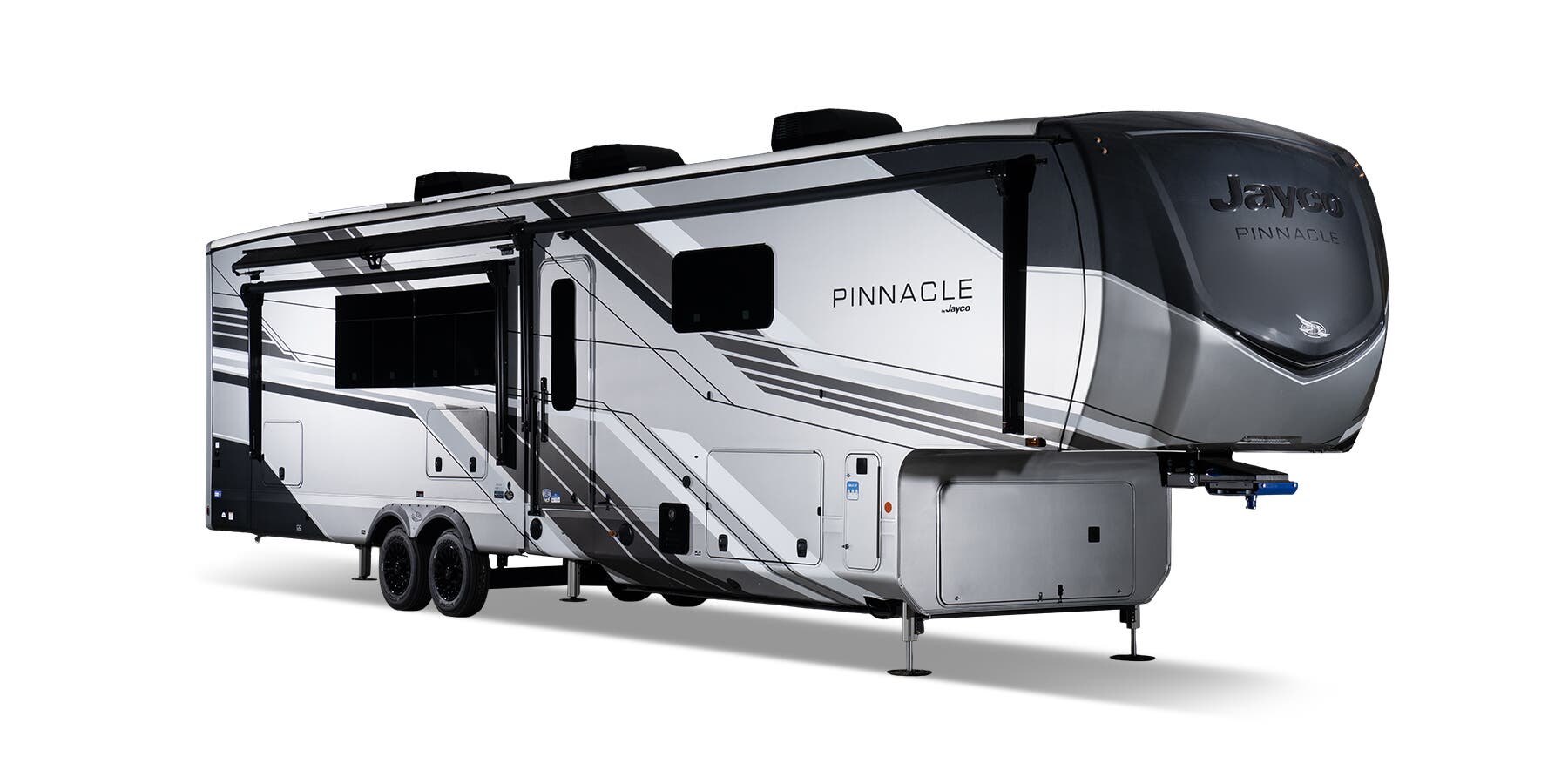

Floorplan: 36FBTS (Fifth Wheel)

General

Dimensions

Weights

2026 Jayco Pinnacle RVs for Sale Near You

Capacities

Exterior

Electrical

Features

Standard Exterior Equipment

102 in. wide-body construction
12 in. structural steel I-beam with 8 or 10 in. monster beam steel drop frame
3,000 lb. tow hitch with 4-way pin
Built-in sewer hose carrier
Painted fiberglass front and rear cap with clear coat and built-in specialty LED lighting
Skirt metal enclosed drop frame
Stronghold VBL™ aluminum-framed and vacuum-bond laminated gel-coated fiberglass exterior walls (including slide room end walls)
Magnum Truss™ XL6™ roof system with Alpha roof membrane system
Under-mounted spare tire
Under-mounted spare tire -Weather Protection (Climate Shield™ zero-degree tested)
40K BTU output furnace
Double-layer fiberglass batt insulation (roof and floor)
Fully enclosed and heated underbelly (ducted)
2 in. block foam insulation with reflective foil
120V heat blankets on all tanks
12V heat tape on freshwater line
Frameless dark-tinted safety-glass windows
Exterior marine-grade speakers with Bluetooth® controller
Digital TV antenna
JaySMART™ (Safety Markers And Reverse Travel) LED lighting
Pass-through storage with Slam-latch™ baggage doors
JayPort® outside griddle prep (standard on all floorplans without a standard outside kitchen)
Battery disconnect
Inverter pre-wire to select outlets
Water heater bypass
Battery disconnect -Fully enclosed universal docking center:
Black tank flush
Independent satellite wiring
Quick-connect outside shower
Selectable water connections
Whole-coach cable hookups
Winterization and sanitation hookups

Standard Interior Equipment

Ceiling fan (select models)
P.A.P-prepped bedroom
Tri-fold hide-a-bed sofa with sleep surface (select models)
Toe-kick nightlights in bedroom, bathroom, and kitchen
LED accent lighting above slideouts
LED backlit custom-framed mirror and medicine cabinet (most models)
Residential quilted bedspread and pillows
Carbon monoxide and LP detector
No in-floor heat ducts throughout the unit
12V charging station
Built-in laundry hamper in wardrobe (select models)
Cedar-lined front wardrobe closet
Flip-up hidden storage in bedroom chest of drawers (select models)
Flip-up tabletop storage next to tri-fold sofa (select models)
Flip-up countertop extension/bar top (select models)
Pantry with adjustable shelves and 120V outlet (most models)
“Shoe garage” in hallway step (select models)
Gas-strutted under-bed storage
Residential dovetail-jointed drawers throughout
Soft-close, heavy-duty, 75 lb. full-extension steel ball-bearing drawer guides
Hidden hinges, magnet latches, and soft-close cabinet doors and drawers
Bathroom skylight
Integrated under-mount sink and lever faucet in main bathroom
Porcelain toilet with foot flush
Residential "Do it all" sink with pull-out kitchen faucet, glass rinse, and vegetable rinse
5/8 in. tongue-and-groove joined plywood floor and 3/8 in. plywood roof decking
Handcrafted hardwood doors, stiles, drawers, and trim – hand-painted with 90 poly sheen
Solid hardwood slide fascia
Vinyl flooring (made in the USA) throughout, including slide rooms
Stain-protected fabric on all furniture
Residential NuvoH2O whole coach water treatment system with water softening and triple cartridge filters

Customer Value Package (Mandatory)

15K BTU “Whisper Quiet” A/C (bedroom) & 15K BTU “Whisper Quiet” A/C with heat pump (main)
On-demand tankless hot water heater
(3) 40 lb. LP propane bottles with auto regulator
Electric patio awning (multi-color with remote control)
Residential king (72 in. x 80 in.) mattress with under-bed storage
Hidden hinges, magnet latches, and soft-close cabinet doors
Free-standing ottoman with hinged top
MORryde® Safe-T-Rail™ grab handle
4K Smart LED HDTV with fully digital HDMI® output and two additional HDMI® cables
JBL® home entertainment system with sound bar and wireless subwoofer
Wireless remote-control system (includes Bluetooth® wireless interior controls) with dimmer switches
Backup, main entrance door, and side observation security camera prep (including a power switch in the bedroom to use the monitor for security)
Keyed-Alike™ lock system (single key for all doors/locks)
Overlander II Solar Package

Luxury Package (Mandatory)

2nd electric patio awning (multi-color LED with remote control)
40 in. 4K outside Smart LED TV
Frameless dark-tinted safety-glass windows
High-gloss, gel-coated sidewalls
MORryde® StepAbove™ entrance steps with strut assist
Oversized multi-battery compartment (room for 4–6 batteries)
32 in. 4K Smart LED bedroom TV
Day/night roller shades in living room
LED fireplace with electric space heater
Pull-out "Roll Top" dinette with two free-standing chairs and two folding chairs
Residential walk-in shower with teak seat
Solid hardwood cabinet doors, stiles, and fascia – hand-painted with 90 poly sheen
GE 21 cu. ft. residential refrigerator with 1,800W inverter
GE Profile Series 30 in. residential convection microwave with built-in air fryer
GE Profile Series residential 24 in. range
Residential “Do it all” sink
Residential, solid-surface kitchen and bathroom countertops
6-point hydraulic auto-leveling system
Central vacuum system with dust port
Powered 50-amp cord reel
Washer/dryer prep
JAYCOMMAND™ Smart RV System

5 Star Handling Package (Mandatory)

17.5 in., 16-ply, “H”-rated tires with SpartanLync™ TPMS
Dexter® axles with ABS and Tow Assist – includes Nev-R-Adjust® brakes and E-Z Lube® hubs
MORryde® LRE-4000™ rubberized suspension system
MORryde® rubber pin box
Wet bolt fasteners, bronze bushings, and 4K lb. leaf springs
