Specs for 2026 Jayco - Terrain

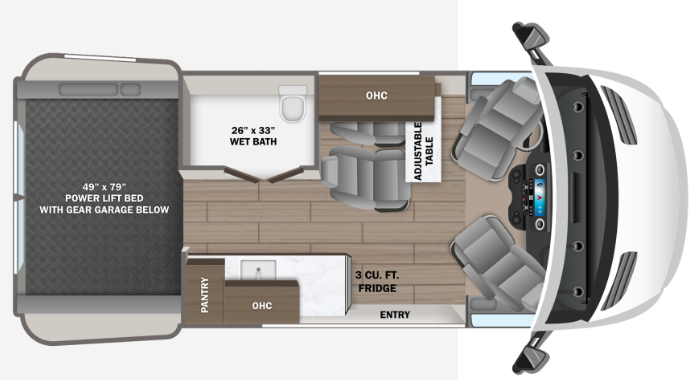

Floorplan: 19YG (Class B)

Dimensions

Weights

Capacities

2026 Jayco Terrain RVs for Sale Near You

Engine/Transmission

Exterior

Electrical

Features

Standard Driving Equipment:
Mercedes-Benz® Sprinter 2500 AWD van with 144 in. wheelbase
GVWR- 9,050 lb.
GCWR- 13,930 lb.
2.0L inline 4-cylinder Twin Turbo 211HP diesel engine with electronic fuel injection with 332 ft.-lb. torque
9-speed automatic transmission
250-amp alternator
5,000 lb. rear hitch receiver with 7 pin connector
12V chassis battery
24.5 gal. fuel tank (diesel)
5.8 gal DEF Tank
10.25 in. integrated Mercedes-Benz® MBUX infotainment center with Apple® CarPlay™ and Android Auto™
Power folding/heated side-view mirrors
Heated power swivel driver/passenger seats
Leather-wrapped tilt steering wheel with integrated controls
Smartphone tray with wireless charging
Parking package with 360° camera
Backup camera
Active Distance Assist DISTRONIC®
Active lane keeping assist
Crosswind assist
Hill start assist
Brake assist plus
Traffic sign assist
Attention assist
Breakdown management
Emergency call system
Driver and passenger airbags
Tire pressure monitoring system (TPMS)
Rain-sensing windshield wipers
Headlight assistant
LED high performance headlights
Third brake light
Power windows and door locks
Remote keyless entry

Standard Exterior Equipment:
LED-lit running boards for cab and entry doors
Fold-down exterior table
Daytime running headlamps
48V-165 amp hour smart lithium battery providing 7.9KW hours of power (19Y)
2,500W LP generator with auto-gen start (19YG)
6 gal. propane tank - 20 lb. (19YG)
(2) 12V AGM batteries - 230AH (19YG)
Prepped for auto engine start with high idle (19Y)
3,000W inverter (19Y)
2,000W inverter (19YG)
2nd 48V alternator dedicated to lithium battery (19Y)
House battery disconnect switch
200W of roof-mounted solar panels
30-amp electrical service with detachable power cord
120V exterior outlet
Starlink satellite internet system (19Y)
Heated grey tank (12V pad) with skid plate
Interior-mounted fresh water tank
LED-lit holding tank valves
Utility center with water controls and outside hose
City water connection
Winterization drain system
12V demand water pump
Water filtration system

Standard Interior Equipment:
Privacy shades for cab windows
Custom-molded ABS interior wall panels
Soft-touch vinyl ceiling
High-intensity LED ceiling lights
Tecnoform® European-style, cabinetry
Durable rubber flooring
Firefly total coach control system with wall-mounted touchscreen and mobile app
MaxxAir Deluxe roof vent
120V/USB outlets throughout
Side screen door with magnetic and zipper close offs
Removable privacy shade for sliding door window
Rear screen door with roll-up and black out capabilities
Rear dual-pane acrylic window with cassette shades
(2) sliding vented windows
(2) additional cab bucket seats with slide and recline features
Removable/adjustable table
Tecnoform® pull-out kitchen countertop extension
Pantry
3 cu.ft. DC refrigerator
Portable induction cooktop
Stainless-steel sink
Drop-down overhead bed with 750 lb. capacity
Fiberglass side pods create larger sleeping surface
Rear garage under bed with L-track mounts for securing cargo
(2) recessed under-bed storage bags
All-in-one wet bath with shower and cassette toilet
Aqua View® SHOWERMI$ER™ water management system
Removable bamboo shelf in wet bath
Retractable clothes line in shower
Powered roof vent in bathroom
Seatbelts in all seating locations
Smoke alarm
Carbon monoxide detector
Fire extinguisher

Customer Value Package (Mandatory):
JRide®: Koni® shocks, heavy-duty rear stabilizer bar
Carefree® armless patio awning with LED light strip and wind sensor
Double roof rack and moveable roof ladder
Front and rear wind deflectors with front LED light bar
17,000 BTU Timberline Binar 5D hydronic heating system with LED touchscreen control
13,500 BTU 48V Coleman®-Mach® 10 air conditioner (19Y)
13,500 BTU 110V air conditioner (19YG)
Black aluminum wheels with all-terrain 245/70R17 tires
