Specs for 2026 Newmar - Essex

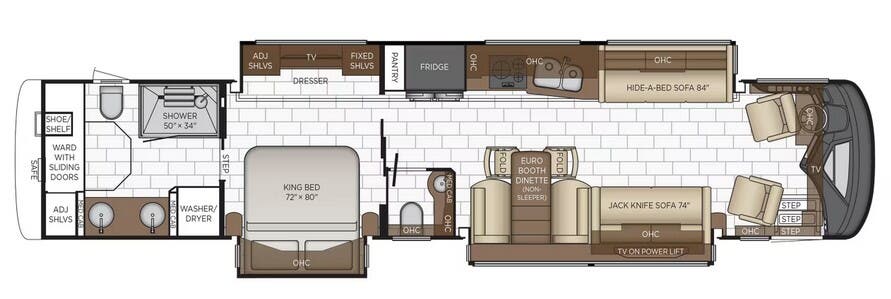

Floorplan: 4521 (Freightliner) (Class A)

General

Dimensions

Weights

2026 Newmar Essex RVs for Sale Near You

Capacities

Engine/Transmission

Exterior

Electrical

Features

Exterior
STANDARD

Exterior Full-Paint Masterpiece Finish™ With Cut and Buff
Push Button Release Baggage Door, Keyless Entrance Door With Touchpad & Door Bell
Entrance Door Assist Handle
Entrance Door Automatic Step
Dual-Latched Entrance Door With Power Flush Stepwell Cover
Convex Chrome Exterior Mirrors with Defrost, Remote Control, Turn Signal Indicators & Side-View Cameras
Front Cap Beta Fusion Protection
Holding Tank Levels Displayed In Exterior Water Works Compartment
Hydraulic Leveling Jacks
Mud Flaps
Rear Hitch For Towing Car
Stainless Steel Exterior Trim Pieces And Entrance Door Kick Panel
Storage Bins In Pegboard Compartment
Tow Guard Rear Protective With Stainless Newmar Name Cutout
Undercoating
Aluminum Alcoa Dura-Brite Wheels

Construction
STANDARD

16" On-Center Aluminum Frame Sidewalls & Roof Construction
Egress Door With Ladder System
Fiberglass Roof And Integrated Gutter Rail
Foamn Insulation 5/8" Laminated In Sidewalls & Ceiling
Gelcoated Fiberglass Exterior Sidewalls, Front & Rear Caps
Polar Pak R19 Batten Insulation In Roof
Slideout Automatic Lock Arms On Non Hydraulic - Paddle Style

Chassis
STANDARD

Air Leveling Control System
Anti-Lock Braking System
Auto Rain Sense Wipers
Back-Up Alarm
Battery Disconnect For Chassis Battery
Blind Spot Detection
Cockpit Seat Belts Latch Sensors
Cockpit Seat Occupancy Sensors
Comfort Drive™ Adaptive Steering with Power Column and Adjustable Control
Cruise Control
Cummins® Connected Diagnostic System
Driver Seat Memory Settings For Pedals, Steering Column & Mirrors On Spartan® Chassis
Electronic Chassis Information Center In Dash
Electronic Stability Control
Push Button Engine Start
Glass Dash Instrument Panel
Automatic High Beam Headlights
Automatic On/Off Headlights
Mobileye® Lane Tracking And Lane Departure Warning System
Recessed Fuel Fills, With Cross Over To Fill From Either Side
Seat Belt Warning Indicator In Dash Display
Freightliner®, Tag Axle, 605 HP, 45' Essex
Power Tilt/Telescope Steering Wheel with VIP Smart Wheel
Tank Dump Side Tilt Mode
Tire Pressures Displayed On Glass Dash
Trailer Tow Mode

Windows, Awnings & Vents
STANDARD
Fan-Tastic Vent with Rain Sensor with Hardwood Louver Cover in Kitchen, Bath & Enclosed Stool Room
Girard® Nova Two Side Awnings with Wind Sensor, Remote Control & LED Lights
Girard® Slideout Covers, Entrance Door & Power Armless Window Awnings On Most Windows
Kitchen Window
Power Window On Driver Side
Frameless Double-Pane Tinted Safety Glass Windows
Large Non-Ventilated Living Room And Dinette Windows
One-Piece Tinted Windshield

Air Conditioning & Heating
STANDARD

Three 15K BTU Heat Pump Air Conditioners With Remote Control Thermostat
Air Conditioning Drainage System For Roof
Chinook Dual Loop Heat With Continuous Hot Water
Dash Heater & Air Conditioner
Driver & Passenger Dash Overhead Ventilation System
Electric Radiant Heat Installed Below Floor Tile

Electrical
STANDARD

Accent Lights In Feature Ceiling, Lambrequins, Kitchen, Bed Base, Fascia Trim & Under Dash
Automatic Generator Start On Low Battery Or Temperature Setting
Battery Disconnect Switch For House Battery
Cable TV Connection
Dash Radio, Cameras And Monitors To Power Up From Both House Batteries & Ignition
LED Docking Lights With Stainless Steel Trim
50 Amp Electrical Service With Flexible Cord And Automatic Transfer Switch
Emergency Engine Start Switch
Engine Block Heater
Exterior LED Accent Lights Above Rear Tow Guard
Exterior Security Lights, One Installed On Each Side
Interior Courtesy Lights
LED Lights In Exterior Storage Compartments On Automatic Switches
LED Lights In Pullout Pantry, Kitchen And Bathroom Base Cabinets
LED Lights Installed Under Door Side Slideouts
LED Lights Recessed In Ceiling & Underneath Overhead Cabinets
LED Lights Installed Under Off-Door Side Slideouts
Lighted Vanity Mirrors
640 AHR Lithium lon Battery System with Two 3000W Pure Sine Inverters
Midship Side Turn Signals
Multiplex Electrical Wiring System
Multiplex Lighting Control System
10.1" Multiplex Monitor System In Center Of Coach with Interior Lighting & HVAC Controls
Newmar App
12.5 kW Cummins Onan® Diesel Generator with Auto Changeover on Hydraulic Slide Out Tray
Power Rewind Reel With 50' Cord
Reading Lights At Head Of Bed - Dimmable With Adjustable Aim
Rear Hitch Docking Light
11OV Recept In Bed Overhead With Two Pass Through Ports
12V Recept Auxiliary On Dashboard
Slideout Switch Manually Operated Hold To Run
1OW Solar Panel (To Charge Chassis Battery)
Solar Prep With 6 Gauge Wire Ran From Roof To House Battery Compartment
Spare Fuses In Chassis Fuse Panel
Spare Fuses In House Fuse Panel
Transfer Switch With Surge Protector
USB Outlet At Dash For Driver Use
USB Outlet High Power At Dinette & Bedroom Night Stand
Wireless Charging Mat Built Into Dash And Nightstands Countertops
Wireless Charging Mat Built Into Passenger Console

Plumbing & Bath
STANDARD

Aqua Miser® Shower System
Assist Handle - Each Shower
Auto Fill For Fresh Water Tank
Bladder Tank For Water Pump System
Demand Water System
Dump Valves Power For Holding Tanks
Exterior Convenience Station - Hot/Cold Water & Towel Dispenser
Hot Water Line To Generator Area
Manifold Plumbing System
Power Reel For Water Hose
RV Sanicon Turbo System
Sewage & Grey Holding Tank Rinse
Fully-Tiled Shower Walls and Floor
Fold-Down Shower Seat* (Floor Plan Specific)
Dometic® Concerto Electric Flush or Macerator China Bowl Stool* (Varies Per Floor Plan)
Water Filter, For Entire Unit

Cabinets & Furniture
STANDARD

Traditional Sable Maple Hardwood Cabinets - Suede Finish
Cabinet Construction Unitized With Full Overlay Doors
Concealed Cabinet Door Hinges
Extended Rotation Concealed Cabinet Door Hinges For Washer and Dryer
Soft-Close Cabinet Door (Side Hinge Doors Only)
Cabinet Drawers With Dove Tail Sides With Self Closing Full Extension Ball Bearing Guides
Cedar Paneling In Bedroom Wardrobe* (Floor Plan Specific)
Super Polished Solid-Surface Countertop In Bathroom And Bedroom
Super Polished Solid-Surface Countertop In Kitchen, Undermounted Stainless Steel Sink & Sink Covers
Euro Booth Dinette With Two Table Leaves And Two Folding Chairs
Air-Cooled Driver & Passenger Seats
Heated Driver & Passenger Seats with Power-Lumbar, Recline, Footrest & Standard Width Passenger Seat
Leather Sofa And Front Seats With Integrated Seat Belts
Lifts On Bed Top
Air R5 Radius Corner Mattress
Molded Silverware Divider Tray
Electric Pantry Door Travel Lock System
Pullout Pantry Shelves Pullout
Pantry With Space For Serving Trays/Bakeware
Sofa Side Hide-A-Bed With Memory Foam Mattress* (See Floor Plans for Availability)
Full-Height Wardrobe Beside Lav* (Floor Plan Specific)

Appliances
STANDARD

Air Horns
Bosch Three-Bumner All-Electric Induction Flush Mount Cooktop
Central Vacuum With Tool Kit
3 Cu. Ft. Dometic Freezer on Pullout Tray in Exterior Compartment
30" Bosch® Stainless Steel Convection Microwave
21.6 Cu. Ft. Bosch® Stainless Steel Refrigerator
Storage Shelf Above Freezer
Stacked Two-Piece Splendide® Washer and Dryer

Interior
STANDARD

Auto Motion Power Shade at Windshield & Power Shades at Driver & Passenger Side Windows
Auto Motion Power Window Shades & Lambrequins
Fitted Non-Quilted Bedspread & Accent Pillows
Designer Feature Ceiling With Cathedral Ceiling And Added Height - Rear Bath Models
Interior Passage Hardwood Raised Panel Doors
Flush Handle On Swinging Bath Doors
Interior Assist Handle At Main Entry Door
Sate Located In Wardrobe
Maximized Shoe Storage Shelves Recessed In Rear Of Wardrobe* (Floor Plan Specific)
Pullout Shoe Storage In Rear Wardrobe* (Floor Plan Specific)
Tile Floor In Kitchen, Bathroom, Bedroom & Living Areas
Trim Ring Hardwood Around Windows
Waste Basket In Kitchen Base Under Sink

Audio, Video & Accessories
STANDARD

Cat 6 TV Cables
Dash Radio With Touchscreen Navigation, Dual Monitors, Harman/JBL 360W Sound System & Subwooler
Exterior Entertainment Center with 43" Samsung® 4K LED TV & Soundbar
10 BC Fire Extinguisher, Carbon Monoxide, Smoke Detectors
Infra Red Repeater System To Operate Audio/Video Components
Internet Connectivity For Remote Access To Motorhome
Radio SiriusXM® Capability with Antenna (Does Not Include Monthly Subscription)
Satellite Dish Prep On Roof
Bose® 900 Sound Touch Soundbar In Livingroom
Bose® Bedroom Speaker
Bose® 500 Subwooler
Samsung® Tablet - With Control Of Av Equipment, Lights, Shades, Keyless Entry & SilverLeaf App
TV Jack And I1OV Recept In Door-Side Exterior Storage Compartment
43" Samsung 4K LED TV In Front Overhead
50" Samsung 4K LED TV On Televator In Living Area
Samsung® LED TV In Living & Bedroom Areas (TV Sizes Vary Per Floor Plan)
WiFiRanger Denali/Spruce LTE
Winegard® Rayzar Automatic Digital TV Antenna
Xite Dash Radio with Apple CarPlay®, 10" Dual Monitor with Nav-N-Go Navigation System
