Specs for 2026 Pleasure-Way - Lexor TS

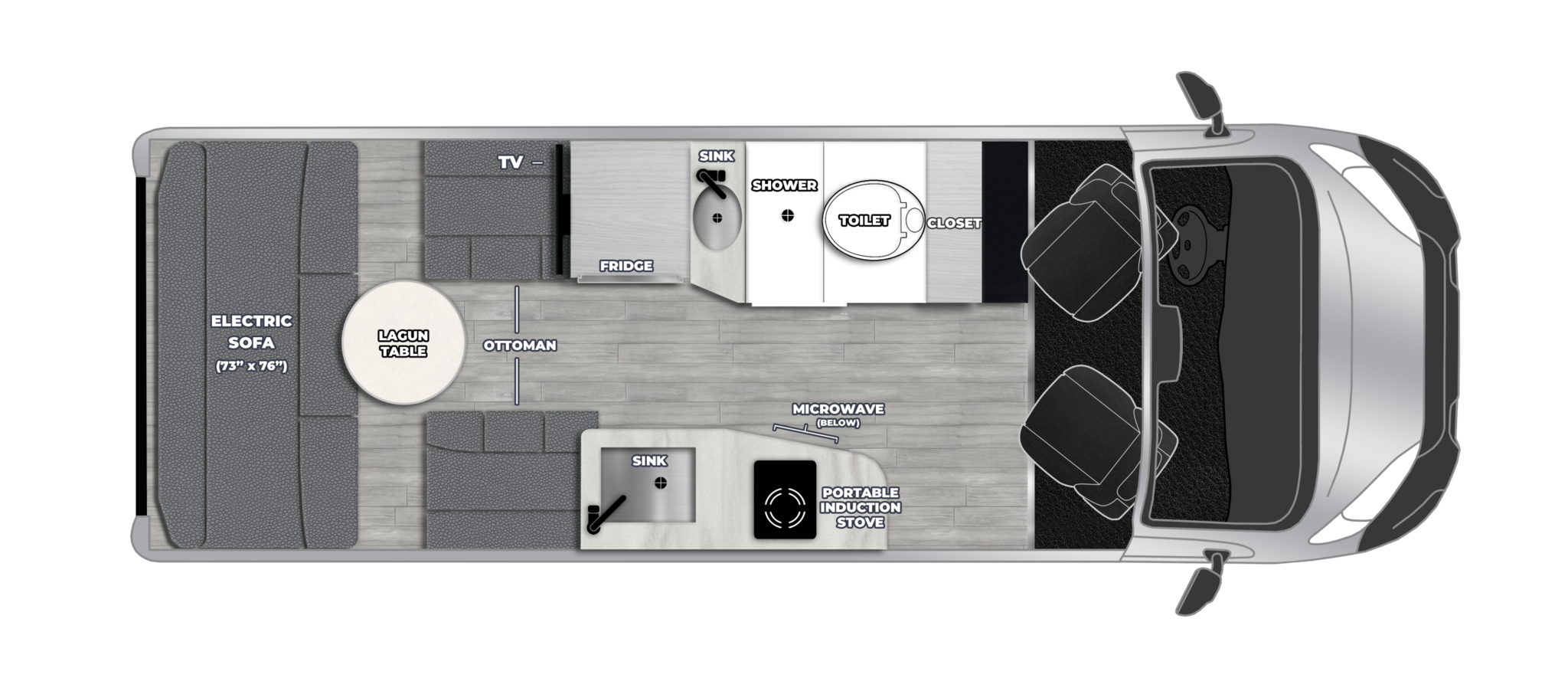

Floorplan: Base (Class B)

General

Dimensions

Weights

2026 Pleasure-Way Lexor TS RVs for Sale Near You

Capacities

Engine/Transmission

Exterior

Electrical

Features

Standard Features

Entertainment
    24” Smart LED TV w/ swing out mount
    Bose® soundbar w/ Bluetooth®
    Winegard® Rayzar® Automatic HDTV antenna
    USB-A & USB-C charging ports
    Android Auto
    Apple CarPlay Navigation

Interior
    Blackout roller shades with magnetic catch
    Closet with hanging rod
    Folding privacy/sun shades for windshield & cab door windows
    Radius laminate cabinet doors (Positive locking door latches)
    Blum® cabinet hinges and door stays
    Recessed LED lighting under cabinets and along the roof
    Laminate-wrapped kitchen, wall partitions, and cabinet boxes
    Vinyl soft touch headliner
    Vinyl flooring
    3M™ Thinsulate™ insulation inside walls
    Foil-faced fiberglass insulation along the roof
    Fire extinguisher
    LP, CO & Smoke detectors

Galley
    12V 3.2 cu.ft refrigerator/freezer
    1-burner induction cooktop
    Microwave
    Large undermount stainless steel sink with Corian® cover
    Matte Black Moen high-arc faucet with pull-out sprayer
    Corian® solid surface countertop
    Full extension ball bearing drawer glides with soft close
    Baltic birch drawer boxes

Bathroom
    Private enclosed wet bath with shower
    Shower curtain
    Handheld matte black moen showerhead
    Residential-style ceramic bowl toilet with foot flush
    Towel rack
    Mirror
    Vanity w/ storage, stainless sink & Corian® countertop
    110-120 Volt GFCi Power Outlet
    Moen® Faucet
    Thetford® Aqua Magic® Toilet

Electrical
    Dual 10-inch touchscreen control panels
    600Ah Eco-Ion Earth Smart Lithium (LiFePO4) coach batteries
    Internal/automatic coach battery heating system for cold weather protection
    Xantrex Freedom XC Pro 3000-Watt True Sine Wave Inverter/Charger
    100-amp lithium charger
    Go Power!® MPPT solar controller
    2.8 KW Onan® QG 2800i EVAP generator
    Automatic generator start (AGS)
    Mastervolt DC/DC charger
    Multiplex wiring
    Dimmable LED lighting
    12-volt coach battery disconnect
    Charge line disconnect (solar and alternator)
    Alternator Line Disconnect
    30-amp power cord
    AC distribution panel
    DC load center

Touchscreen Control Panel
    Upgraded resolution for wider viewing angles
    10-inch full-color display
    Integrated inverter controls
    Coach battery state-of-charge meter
    Coach battery temperature gauge
    Estimated time until full charge read-out
    Remaining runtime for DC power read-out
    Real-time 12-volt net loss/gain amperage meter
    Solar charger controls and monitoring
    Tank level monitoring (LP, fresh, grey, and black)
    Climate control center with thermostat for A/C, vent, and furnace
    Truma AquaGo® comfort plus water heater controls
    Dimmable LED light banks
    Water pump, awning, sofa, and vent controls
    Generator start/stop and automatic generator start (AGS)
    DC electrical system diagnostics
    Dark and light viewing modes
    AC Power Display
    Automatic Climate Control
    Coach Battery Temp & Charge
    DC Power Run Time & Charge
    Integral Tank Level Indicators
    State Of Charge

Exterior
    Fiamma® power awning with LED lights
    LED porch light
    Awning-style frameless windows
    110-120 volt power outlet
    Utility center (LP switch, 30-amp power outlet, city water connection)
    Exterior shower with handheld wand
    Fiberglass running boards with integrated entrance steps
    Access panels and components painted to match exterior color
    Roll Up Rear & Side Screens

Heating, Ventilation, & Cooling
    Truma VarioHeat 11,500 BTU Furnace
    Power lift Dometic Fan-Tastic Vent fan w/ rain sensor
    Truma Aventa Eco 13,500 BTU air conditioner
    3M Thinsulate® Insulation

Plumbing & Liquid Propane Systems
    Shurflo® automatic demand water system
    Truma AquaGo® comfort plus instant water heater
    Water heater bypass valve
    Monitor panel for LP, fresh, grey, black and coach batteries
    Sewer discharge center w/ black and grey water gate valves
    Low point drain for water lines
    LP tank w/ electric shut off switch
    LP BBQ quick connect

Rear Seating Area
    Lagun table mount system w/ 360° swivel tabletop
    Power sofa w/ two three-point seat belts
    Memory foam sofa cushions
    Ultraleather® fabric

Chassis
Chassis Model 	Ram ProMaster 3500
Engine 	3.6L V6 Pentastar
HP Rating 	283 HP
Torque Rating 	250 ft-lbs
Wheelbase 	159"
Transmission 	9-speed automatic
Fuel Type 	Gasoline
Braking System 	4-wheel Disc brakes w/ ABS
Stability and Traction 	Electronic Stability Ctrl
Tires 	LT245/75R/16 All-season
Alternator 	220 amp / 12v 95Ah
Chassis Battery 	220 amp / 12v 95Ah
Hitch and Wiring 	7-pin wiring connector

Chassis
    Active Brake Assist
    Active Distance Assist Distronic
    Active Lane Keeping Assist
    Anti-Lock Braking System
    Attention Assist
    Auto On/Off Headlights
    Chassis Air Conditioning
    Chassis Battery Disconnect
    Drive Away Assist
    Driver & Passenger Seats
    Rear View Camera System
    Traffic Sign Assist

Cab Conveniences
    Driver and passenger power and heated swivel seats
        Leather
        Four-way lumbar support
        Three-stage heating controls
    Uconnect 5C NAV w/ 10.1? Touchscreen
        Navigation
        Bluetooth® connectivity w/ audio streaming
        Smartphone integration
        Multimedia interface w/ USB-C ports

Safety
    Airbags – driver and passenger
    Adaptive Cruise Control
    ParkSense Front & Rear Park Assist
    Crosswind Assist
    LED headlamps
    Tire repair kit w/ air compressor and repair liquid

Weights and Measures
Length (Bumper to Bumper) 	20' 11" / 637 cm
Exterior Height (inc. A/C) 	9' 3.5" / 283 cm
Exterior Width (mirrors extended) 	8' 2.5" / 250 cm
Exterior Width (mirrors retracted) 	7' 5" / 226 cm
Interior Height 	6' 3" / 190 cm
Fresh Water Capacity 	29 US Gal / 109 L
Grey Holding Tank Capacity 	20 US Gal / 75 L
Black Holding Tank Capacity 	12 US Gal / 45 L
LP Capacity (80% fill) 	8.16 US Gal / 31 L
Fuel Capacity 	24 US Gal / 91 L
Towing Capacity 	2,150 lbs / 975 kg
Seat Belts 	4
Wheelbase 	159"
GVWR 	9,350 lbs / 4,241 kg
GCWR 	11,500 lbs / 5,216 kg
Queen Bed 	73" W x 76" L
Driver Single Bed 	26" W X 76" L
Passenger Single Bed 	26" W X 76" L

Highlights
     Compact Size
     Front Lounge
     Queen Bed
     Wet Bath

Warranty
Ram ProMaster Warranty USA
    Basic Limited Warranty 3 years / 36,000 miles
    Powertrain Limited Warranty 5 years / 60,000 miles
    Corrosion Perforation 5 years / Unlimited miles
    Roadside Assistance 5 years / 60,000 miles

Ram ProMaster Warranty Canada
    Basic Limited Warranty 3 years / 36,000 miles
    Powertrain Limited Warranty 5 years / 60,000 miles
    Corrosion Perforation 5 years / Unlimited miles
    Roadside Assistance 5 years / 60,000 miles

Pleasure-Way Five Year Freedom Warranty
    Limited Warranty: Coverage – 5 years or 60,000 miles / 100,000 kms
    Pleasure-Way Industries Ltd. warranties the specified new Pleasure-Way Motorhome free from defects in material and craftsmanship on portions manufactured by Pleasure-Way Industries Ltd. under normal use and service.
