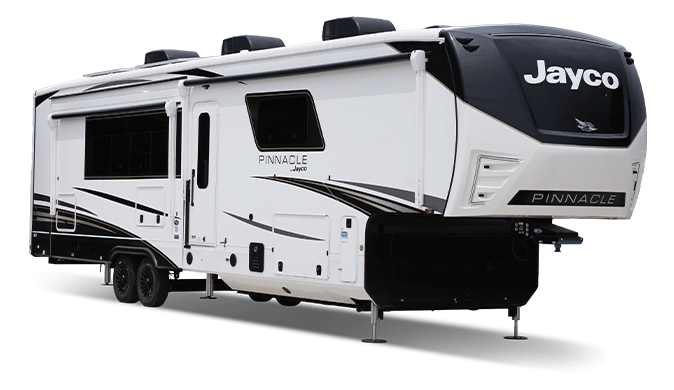

Specs for 2027 Jayco - Pinnacle

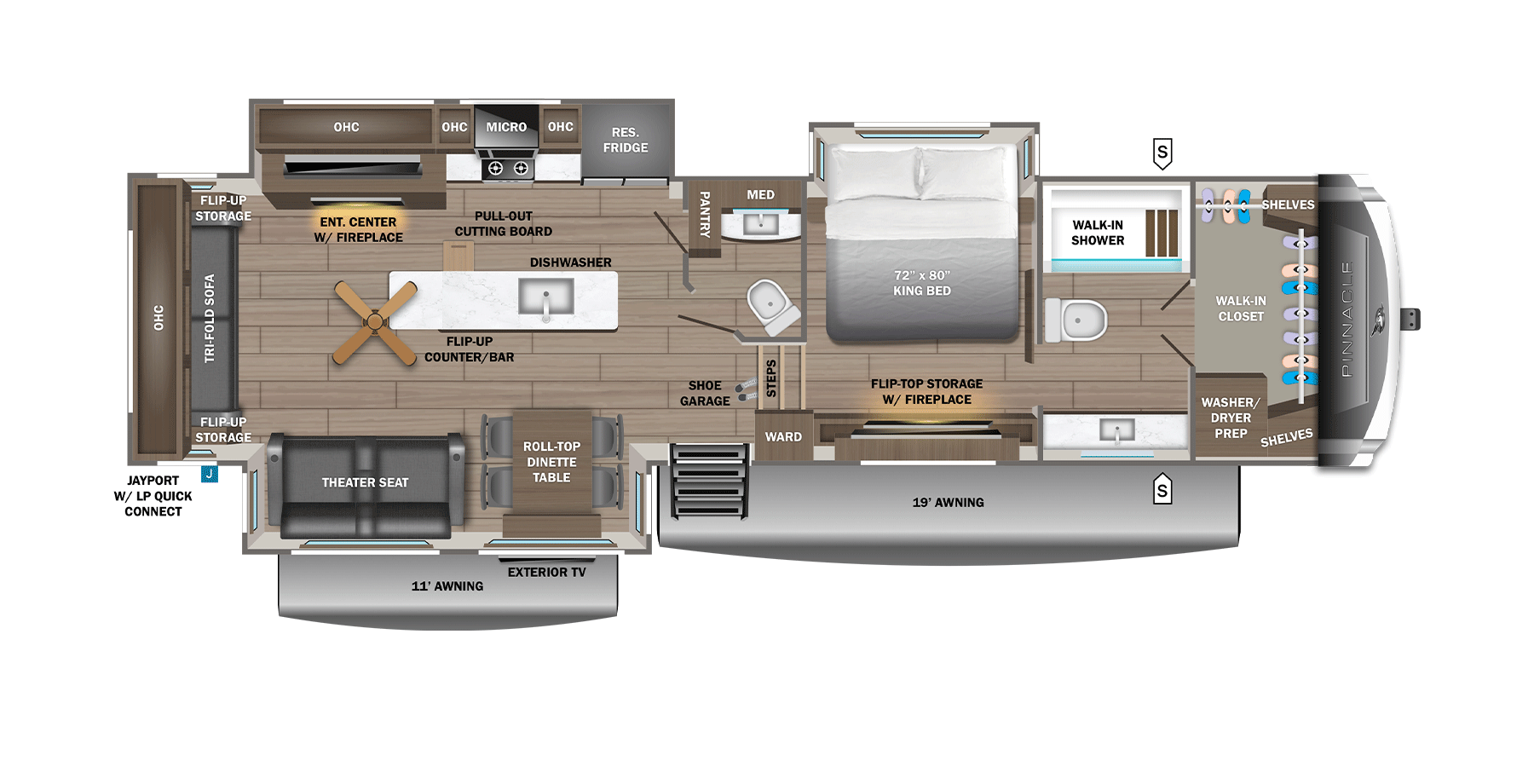

Floorplan: 36FBTS (Fifth Wheel)

General

Dimensions

Weights

2027 Jayco Pinnacle RVs for Sale Near You

Capacities

Exterior

Electrical

Features

STANDARD EXTERIOR EQUIPMENT
102 in. wide-body construction
12 in. structural steel I-beam frame with 8 in. or 10 in. Monster Beam™ steel drop-frame construction
120V heat blankets on all holding tanks plus 12V heat tape on fresh water line
3,000 lb. rear tow hitch with 4-way pin connector
Battery disconnect switch
Built-in sewer hose carrier
Climate Shield™ zero-degree-tested weather protection package:
40,000 BTU furnace
Double-layer fiberglass batt insulation in roof and floor
Fully enclosed and heated underbelly with ducted heat
2 in. block foam insulation with reflective foil barrier
Digital TV antenna
Exterior marine-grade speakers with Bluetooth® controller
Frameless dark-tinted safety-glass windows
Fully enclosed universal docking center featuring:
Black tank flush system
Quick-connect outside shower
Selectable water connections
Winterization and sanitation hookups
Inverter pre-wire to select outlets
JayPort® outside griddle prep system (standard on all floorplans without a factory-installed outside kitchen)
JaySMART™ LED lighting system (Safety Markers and Reverse Travel) (patented)
Magnum Truss™ XL6™ roof system with Alpha Systems® roof membrane
Painted fiberglass front and rear caps with clear coat finish and integrated specialty LED lighting
Pass-through storage with Slam Latch™ baggage doors
Skirt-metal enclosed drop frame
Stronghold VBL™ aluminum-framed, vacuum-bond laminated gel-coated fiberglass exterior walls, including slide room end walls
Under-mounted spare tire
Water manifold system with individual shut-off valves
Exterior light at termination valves

STANDARD INTERIOR EQUIPMENT
12V charging station
5/8 in. tongue-and-groove plywood floor decking and 3/8 in. plywood roof decking
Bathroom skylight
Built-in laundry hamper in wardrobe (select models)
Carbon monoxide and LP gas detector
Cedar-lined front wardrobe closet
Ceiling fan (select models)
CPAP-prepped bedroom with flip-up shelf
Flip-up countertop extension / bar top (select models)
Hidden sliding storage in bedroom chest of drawers (select models)
Flip-up tabletop storage next to tri-fold sofa (select models)
JBL® flush-mount speakers with integrated nightlight above headboard and Bluetooth® controller
Dishwasher (under kitchen sink installation)
Pull-out cutting board above trash receptacle
Gas-strutted under-bed storage
Handcrafted hardwood doors, stiles, drawers, and trim with hand-painted 90° poly sheen finish
Integrated under-mount sink with residential-style lever faucet in main bathroom
LED accent lighting above slideouts
LED-backlit custom-framed mirror and medicine cabinet (most models)
No in-floor heat ducts throughout coach
Pantry with adjustable shelves (most models)
Porcelain toilet with foot flush
Residential "Do-It-All" kitchen sink with pull-out faucet, glass rinse, and vegetable rinse features
Residential dovetail-jointed drawers throughout
Residential quilted bedspread and pillows
"Shoe garage" storage in hallway step (select models)
Soft-close, heavy-duty, 75 lb. full-extension steel ball-bearing drawer guides
Solid hardwood slideout fascia
Stain-resistant fabric on all furniture
Toe-kick nightlights in bedroom, bathroom, and kitchen
Tri-fold hide-a-bed sofa with residential sleep surface (select models)
Residential vinyl flooring (Made in the USA) throughout, including slide rooms

CUSTOMER VALUE PACKAGE (MANDATORY)
15,000 BTU "Whisper Quiet" bedroom A/C
15,000 BTU "Whisper Quiet" main A/C with heat pump
On-demand tankless water heater
4K Smart LED HDTV with fully digital HDMI® output and two additional HDMI® cables
Backup, main entry door, and side-view observation camera prep, including bedroom power switch for optional security monitor
Electric patio awning
Hidden hinges, magnetic latches, and soft-close cabinet doors
JBL® home entertainment system with soundbar and wireless subwoofer
Keyed-Alike™ lock system (single key for all doors and locks)
MORryde® Safe-T-Rail® grab handle
Residential king mattress (72 in. x 80 in.) with under-bed storage
Three 40 lb. LP propane bottles with automatic regulator
Overlander II Solar Package featuring 30-amp controller, 1,800W inverter, and two 200W solar panels

LUXURY PACKAGE (MANDATORY)
2nd electric patio awning
40 in. 4K exterior Smart LED TV
40 in. 4K Smart LED TV in bedroom
6-point hydraulic auto-leveling system
Central vacuum system with dust port
Day/night roller shades in living room
Frameless dark-tinted safety-glass windows
GE® 21 cu.ft. residential refrigerator with 1,800W inverter
GE Profile™ Series 30 in. residential convection microwave with built-in air fryer
GE Profile™ Series 24 in. residential range with 3.7 cu.ft. oven and 9,100 BTU high-output burner
High-gloss gel-coated sidewalls
LED fireplace with electric space heater
MORryde® StepAbove™ Stow & Go steps
Oversized multi-battery compartment with room for 4–6 batteries
Powered 50-amp cord reel
Residential solid-surface kitchen and bathroom countertops
Residential walk-in shower with teak seat
Solid hardwood cabinet doors, stiles, and fascia with hand-painted 90° poly sheen finish
Residential "Do-It-All" sink
Washer/dryer prep
Pull-out "Roll Top" dinette with two freestanding chairs and two folding chairs
Residential NuvoH2O® whole-coach water treatment system with water softening and triple-cartridge filtration
NuvoH2O® Ultra Filter with medical- and military-grade filtration technology for kitchen faucet and refrigerator ice/water dispenser, conveniently located under sink

5 STAR HANDLING PACKAGE (MANDATORY)
17.5 in. 16-ply tires
Dexter® axles with ABS and Tow Assist, including Nev-R-Adjust® brakes and E-Z Lube® hubs
MORryde® LRE4000™ rubberized suspension system
MORryde® rubber pin box
Wet-bolt fasteners with bronze bushings and 4,000 lb. leaf springs
